Name |

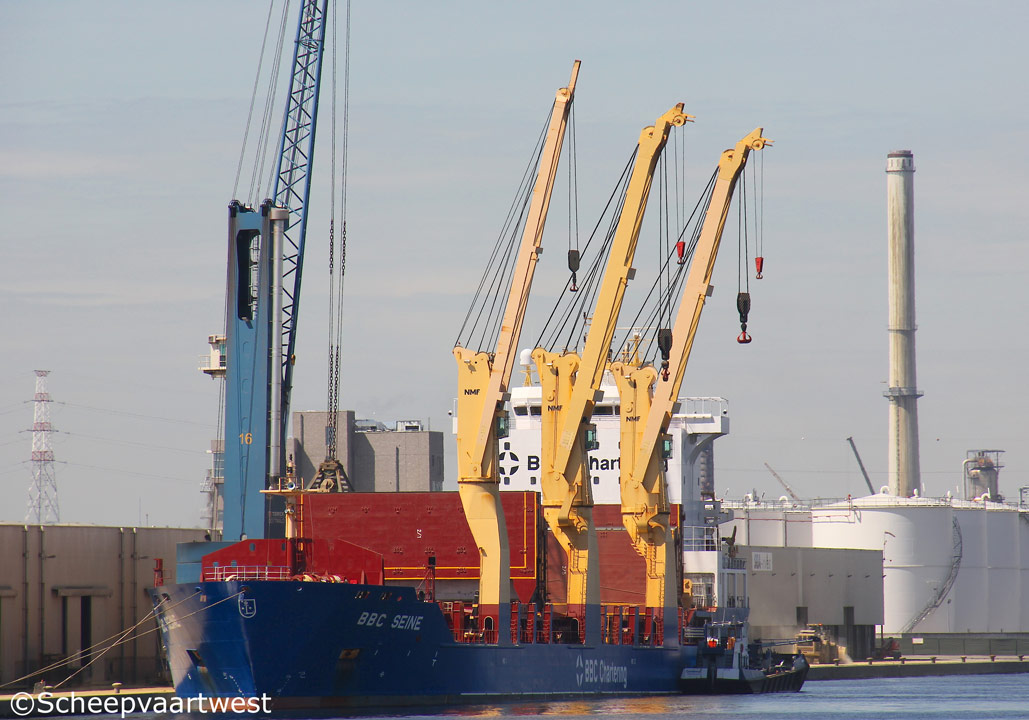

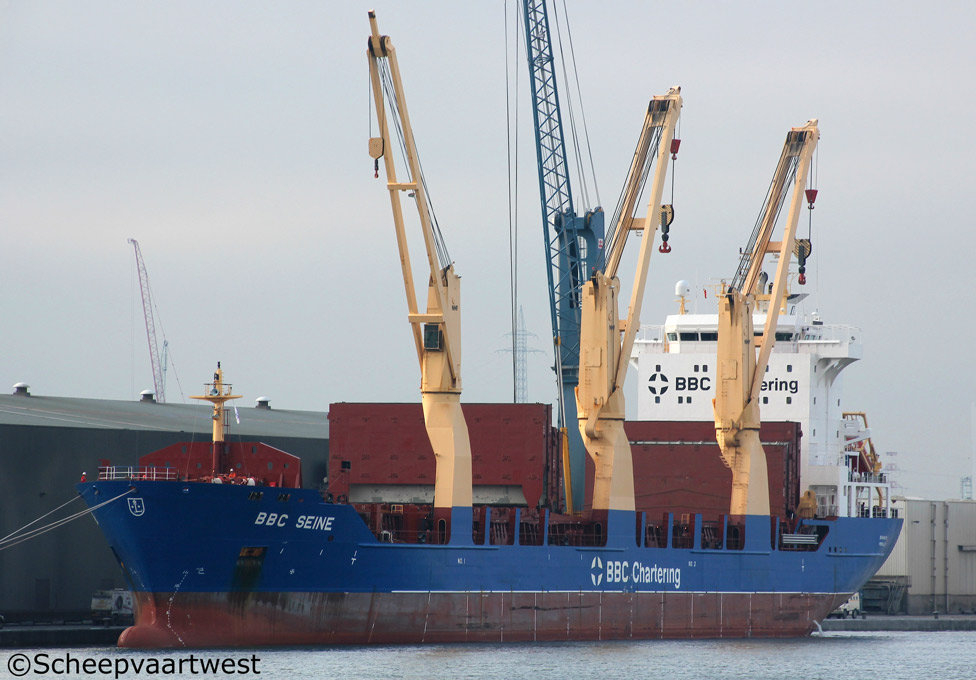

BBC SEINE |
|
Previous names |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9508380 |
|
Call sign |
V2EX6 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
12.974 t |
|
DWT |
Summer: 16.967,6 t |
|
NT |
5.334 t |
|
Number of 20ft containers |
On deck: 550 In hold: 408 Total: 958 |
|
Number of 40ft containers |
On deck: 225 + 100 TEU In hold: 193 + 22 TEU Total: 418 + 122 TEU |
|
Container capacity 14t |
317 homogeneously loaded |
|
Reefer plugs |
60 on deck |
|
Length |
143,14 m overall 134,43 m between perpendiculars |
|
Breadth |
23,13 m extreme 22,80 m moulded |
|
Draught |
9,70 m |
|
Height above keel |
41,40 m |
|
Depth |
13,30 m to main deck |
|
Speed |
Max.: 15,0 knots |
|
Built |
2010 |
|
Keel laid |
05.12.2008 |
|
Launch date |
01.07.2010 |
|
Date of completion |
11.10.2010 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. |
|
Yard number |
SB355-13 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm diesel engine - 7.074 kW at 129 rpm Year of manufacture: 2008 Manufacturer: Yichang Marine Diesel Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 129 rpm+5 bladed |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 24,0 m² 1x Exhaust gas heated - 8,0 bar Heating surface: 185,0 m² Year of manufacture: 2009 Manufacturer: TPK Nova d.o.o. |
|
Electric installations |
1x Plant 450 V - 750 kVA 1x Plant 450 V - 750 kVA 1x Plant 450 V - 750 kVA 1x Plant 450 V - 126 kVA 1x Plant 24 V - 200 Ah |
|
Generators |
3x YANMAR 6N18AL-EV main diesel generatorsets each 750 kVA / 660 kW |
|
Emergency generator |
1x MAN D0824 LE201 diesel generatorset 126 kVA / 100 kW |
|
Batteries |
12x Batteries for UPS Lighting each 200 Ah |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 500 litres - 10,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 700 kW, forward |
|
Number of holds |
2 Hold 1: 34,30 x 18,60 / 13,21 x 12,10 m |
|
Cargo hold capacity |
Grain & bales: 19.777 m³ / 698.429 ft³ |
|
Hold ventilation |
Hold 1: abt. 15 times / hour Hold 2: abt. 6 times / hour |
|
Number of hatches |
2 Hatch 1: 34,50 x 18,60 m |
|
Hatch cover type |
2x hatches are fitted with hydraulic-operated folding hatch covers, can be partly disconnected |
|
Floor space under deck |
2.986 m² / 32.141 ft² |
|
Floor space on deck |
1.486 m³ / 16.002 ft² |
|
Max. permitted loads |
On deck: 2,20 t/m² Tanktop: 20,0 t/m² Tweendeck: 4,70 t/m² |
|
Tank capacities |
HFO: 1.458 m³ MGO: 145 m³ Fresh water: 259 m³ Ballast water: 6.211 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Cargo gear |
3x NMF cranes situated portside: 2x Cranes - SWL 250 t each 1x Crane - SWL 80 t |
|
Accommodation |
20 persons, 20 cabins |
|
Manager |
Briese Schiffahrts GmbH & Co. KG |
|
Operator |
BBC Chartering |
|
Owner |
Briese Schiffahrts GmbH & Co. KG MS "PILSUM" |
|
Previous owners |
2010 - 2010 Briese Schiffahrts GmbH & Co. KG |
|
Latest data adjustment |
01 March 2016 |
