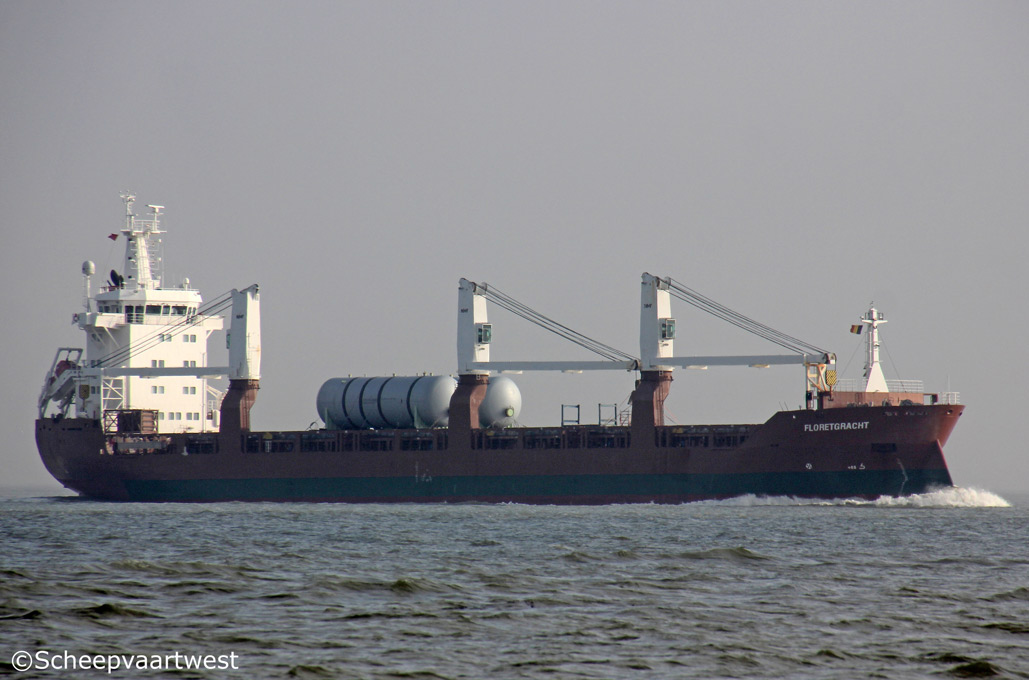

Floretgracht 01

Westerschelde 23 January 2016

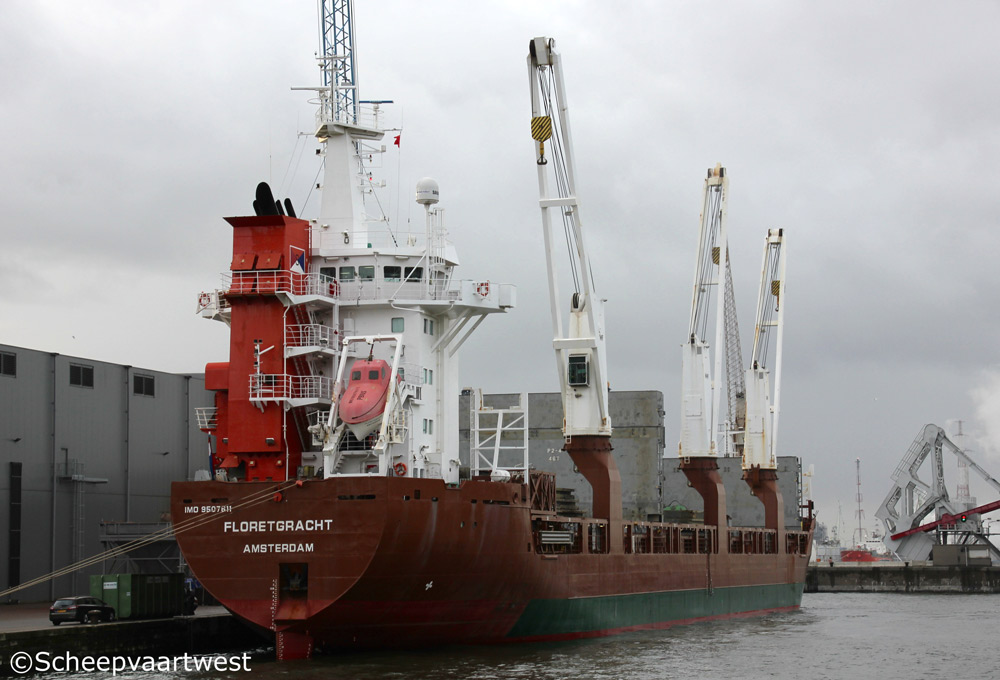

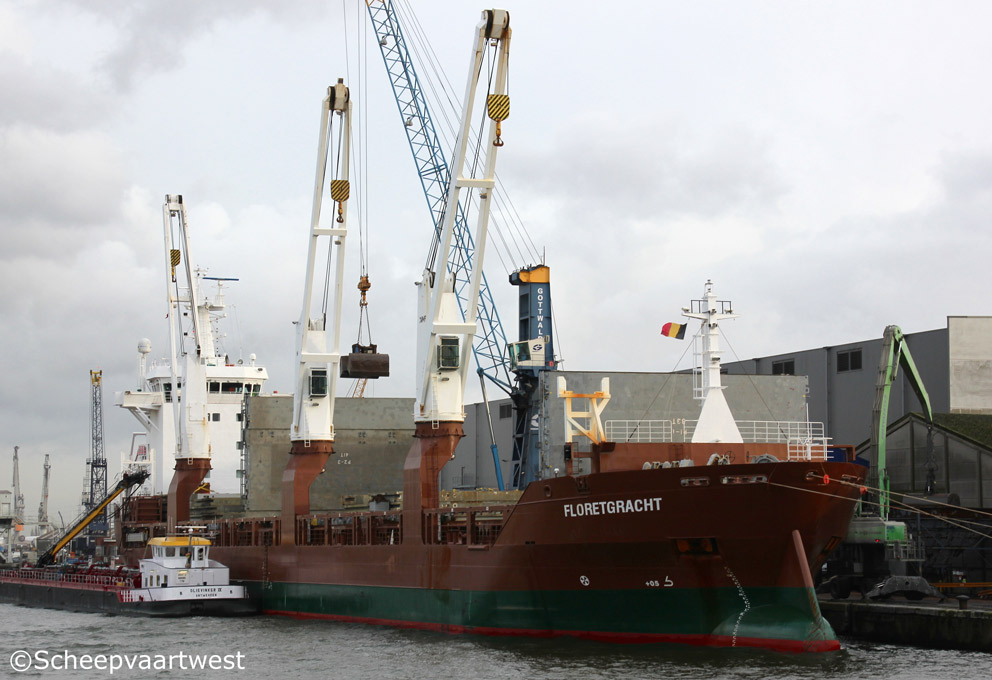

Floretgracht 02   Floretgracht 03
Antwerpen 13/01/16 Antwerpen 13/01/16



Name

FLORETGRACHT

Type

General dry cargo vessel

IMO-number

9507611

Call sign

PBNS

Flag

The Netherlands

Port of registry

Amsterdam

GT

8.620 t

DWT

Summer: 12.067 t

NT

4.398 t

Number of 20ft containers

658

Reefer capacity

120

Length

136,64 m overall

127,00 m between perpendiculars

Breadth

18,90 m moulded

Draught

Summer: 8,53 m

Depth

11,75 m moulded

Speed

14,0 knots

Built

2012

Launch date

06.04.2011

Date of completion

14.08.2012

Builder

Jiangsu Yangzi Changbo Shipbuilding
Jingjiang
Chine

Yard number

K06-049

Hull material

Steel

Movable bulkheads / compartments

Removable pontoons for up to 11 compartments at TEU interval

Main engine

1x Wärtsilä 6R46 - 4 stroke single acting 6 cylinder 460 x 580 mm diesel engine 5.430 kW / 7.380 bhp

Propellers

1x Controllable pitch propeller

Generators

1x Generator 640 kW

3x Main diesel generatorsets each 330 kW

Bow thruster

1x 500 kW

Number of holds

3

Cargo hold capacity

Grain/bale: 15.772 m³ / 556.980 ft³

Hold ventilation

30x Air changes - basis empty holds

Hatches

Weather deck:

Hatch 1: 26,60 x 15,80 m

Hatch 2: 31,74 x 15,80 m

Hatch 3: 26,60 x 15,80 m

Hatch type: Steel end folding type

Tween deck:

Hatch 1: 28,00 x 15,80 m

Hatch 2: 61,84 x 15,80 m

Consisting 17 steel pontoons

11x 6,35 x 15,80 m

2x 4,36 x 15,80 m

3x 3,19 x 15,80 m

1x 1,90 x 15,80 m

Floor space

Tank top: 1.270 m²

Tween deck: 1.419 m²

Weather deck: 1.589 m²

Max. permitted loads

Weather deck hatch covers: 2,00 t/m²

Tweendeck hatch covers: 4,50 t/m²

Tank top: 20,00 t t/m²

Cargo gear

3x Deck cranes on starboard side

SWL 80,0 t each at 18,00 m

SWL 65,0 t each at 24,00 m

Manager

Spliethoff´s Bevrachtingskantoor
Radarweg 36
1042 AA Amsterdam
The Netherlands

Owner

C.V. Scheepvaartonderneming Floretgracht
Amsterdam
The Netherlands

Latest data adjustment

24 February 2016
