Western Callao 01

Westerschelde 21 April 2015



Name

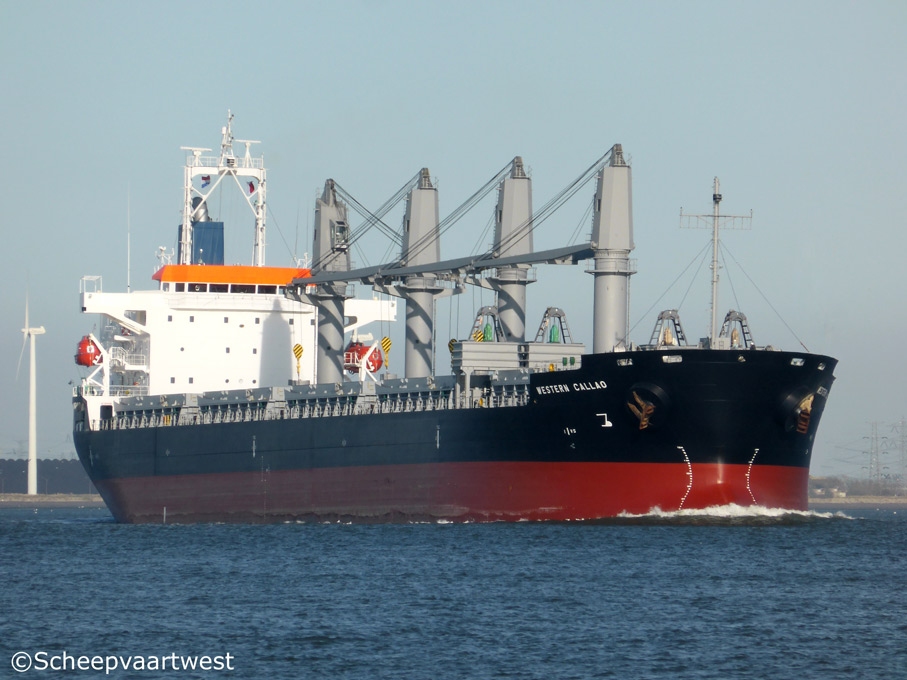

WESTERN CALLAO

Type

Bulk carrier - Strengthened for heavy cargo

IMO-number

9606041

Call sign

9V2566

Flag

Republic of Singapore

Port of registry

Singapore City

GT

22.871 t registered

DWT

Summer: 37.063 t

NT

12.519 t registered

Length

177,85 m

Breadth

29,00 m

Draught

10,60 m

Moulded L x B x D

169,80 x 28,60 x 15,00 m

Registered L x B x D

170,58 x 28,60 x 15,00 m

Freeboard

4.192 mm

Built

2015

Keel laid

22.12.2011

Launch date

02.12.2014

Date of completion

06.02.2015

Builder

Saiki Heavy Industries Co., Ltd.

Yard number

587

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 6 cylinder 460 x 1.932 mm diesel engine 7.050 kW at 110,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 470 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,30 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators - 1.786 kVA

Hold capacity

Bale: 45.294,41 m³

Grain: 45.790,76 m³

Tank capacities

Fuel oil: 1.633,32 m³

fresh water: 579,72 m²

Water ballast: 13.729,40 m³

Manager

Bright Star Ship Management Inc.

Registered owner

Grace Ocean Private Limited

Latest data adjustment

09 February 2016
