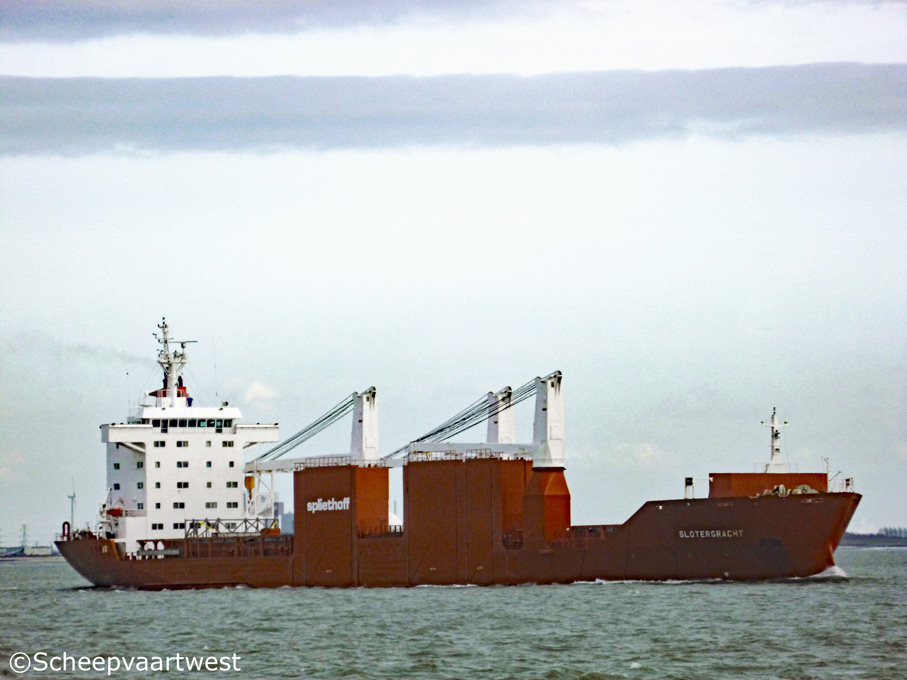

Westerschelde 23 February 2014 |
 |

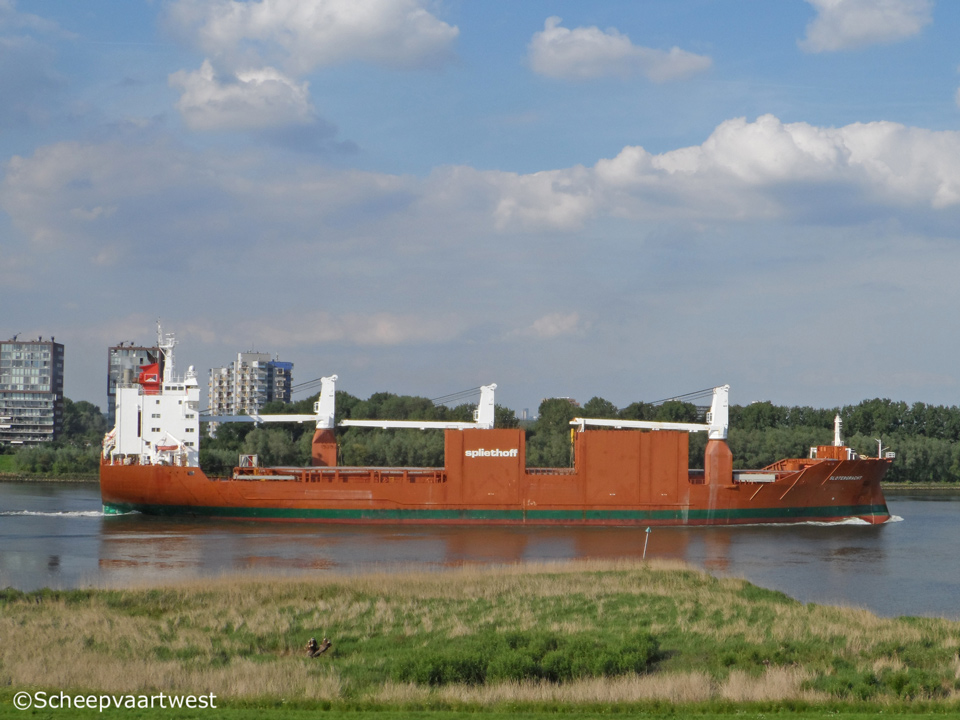

| Spijkenisse 21/05/17 |
|
Name |
SLOTERGRACHT |
|
Type |
Multi Purpose dry cargo ship |
|
IMO-number |
9197947 |
|
Call sign |
PCBP |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
16.641 t |
|
DWT |
Summer: 21.402 t |
|
NT |
6.730 t |
|
Number of 20ft containers |
In hold: 478 On deck: 656 Total: 1.134 |
|
Number of 40ft containers |
In hold: 219 On deck: 283 Total: 502 + 133 TEU |
|
Reefer capacity power |
850 kW |
|
Length |
168,14 m overall 159,14 m between perpendiculars |
|
Breadth |
25,42 m extreme 25,20 m moulded |
|
Draught |
Summer: 10,74 m |
|
Depth |
14,60 m moulded |
|
Speed |
18,0 knots ballast 17,0 knots laden Max.: 19,2 knots |
|
Built |
2000 |
|
Launch date |
22/12/1999 |
|
Delivery date |
06/2000 |
|
Builder |
Tsuneishi Shipbuilding Co., Ltd. Fukuyama Factory Numakuma Japan |
|
Yard number |
1173 |
|
Hull material |
Steel |
|
Movable bulkheads |
Removable pontoons for up to 14 compartments |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L64 - 4 stroke single acting 6 cylinder 640 x 900 mm combustion engine 12.060 kW / 16.400 hp Builder: Fincantieri-Cant. Nav. Italiana S.p.A. (Grandi Motori), Trieste - Italy |
|
Propellers |
1 |
|
Bow thruster |
1x 850 kW / 1.155 hp |
|
Hatches |
Weather deck: Hatch 0: 6,40 x 7,60 m Hatch 1: 25,60 x 17,80 / 15,20 m Hatch 2: 38,40 x 17,80 m Hatch 3: 32,00 x 17,80 m Type: steel, end folding Tween deck: Hatch 1: 25,60 x 17,80 m hatch 2: 38,40 x 17,80 m Hatch 3: 32,00 x 20,40 m Consisting: 16 steel pontoons 2x 6,37 x 10,02 m 1x 6,37 x 15,12 m 6x 6,37 x 17,72 m 2x 3,17 x 17,72 m 4x 6,37 x 20,32 m 1x 4,20 x 17,72 m |
|
Hold capacity |
Hold 0: 15.250 ft³ / 430 m³ Hold 1: 160.000 ft³ / 4.530 m³ Hold 2/3: 665.000 ft³ / 18.280 m³ Total: 840.250 ft³ / 22.780 m³ If tween deck installed 56.200 ft / 1.620 m³ less in hold |
|
Floor space |
Tanktop: 1.620 m² Tween deck: 1.834 m² Weather deck: 2.155 m² |
|
Max. permitted loads |
Weather deck hatch covers: 20,0 t/m² Tween deck hatch covers: Hatch 1: 7,50 t/m² Hatch 2: 5,50 t/m² Hatch 3: 5,0 t/m² |
|
Sideloaders |
5x Starboard side - SWL 16,0 t |
|
Bunker capacity |
Fuel oil: 1.635 m³ Marine gas oil: 220 m³ |
|
Ballast capacity |
7.545 m³ |
|
Cargo gear |
3x NMF cranes 2x Port side (aft and mid) 1x Starboard (forward) Tons/ reach: 120 t SWL @ 14,00 m 90 t SWL @ 18,60 m 55 t SWL @ 30,00 m |
|
Manager |
Spliethoff´s Bevrachtingskantoor BV Radarweg 36 1042 AA Amsterdam The Netherlands |
|
Operator |
Spliethoff |
|
Owner |
Rederij Slotergracht Amsterdam The Netherlands |
|
Previous owners |
06/200 - 07/2012 C.V. Scheepvaartonderneming Slotergracht, Amsterdam - The Netherlands |
|
Latest data adjustment |
05 December 2022 |
