Newseas Jade 01

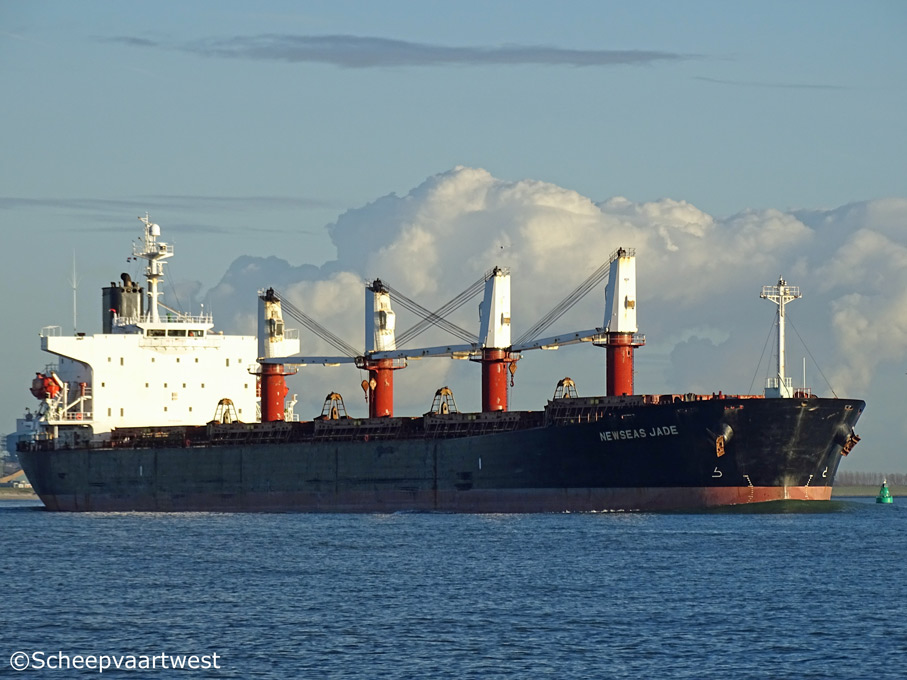

Westerschelde 26 November 2015



Name

NEWSEAS JADE

Previous names

2005 - 10.2013 Ocean Adventure

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9288485

Call sign

3EAI5

Flag

Republic of Panama

Port of registry

Panama City

GT

30.042 t

DWT

Summer: 52.409 t

NT

18.207 t

Length

189,99 m overall

Breadth

32,26 m moulded

Draught

12,02 m

Moulded L x B x D

182,00 x 32,26 x 17,00 m³

Registered L x B x D

182,87 x 32,26 x 17,00 m³

Freeboard

Summer: 5.024 mm

Depth

17,00 m moulded

Speed

Max.: 16,2 knots

Service: 14,5 knots

Built

2005

Keel laid

26.11.2004

Launch date

13.01.2005

Date of completion

31.03.2005

Builder

Tsuneishi Shipbuilding Corporation
Fukuyama
Japan

Yard number

1291

Hull material

Steel

Main engine



1x MAN-B&W 6S50MC - 2 stroke 6 cylinder 500 x 1.910 mm diesel engine 7.800 kW / 10.604 bhp at 116,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 520 mm

Propellers

1x Fixed pitch propeller - aft at 116,0 rpm

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 2,29 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators - 1.675 kVA

Cargo hold capacity

Bale: 65.601 m³

grain: 67.756 m³

Tank capacities

Fuel oil: 2.387 m³

fresh water: 409 m³

Water ballast: 15.407 m³

Cargo gear

4x Cranes - SWL 30,0 t each

Manager

Orient International Logistics Holding Shanghai Newseas NavigatioN Co., Ltd.

China

Registered owner

Xin Hai Yuan Shipping S.A.

Latest data adjustment

19 January 2016
