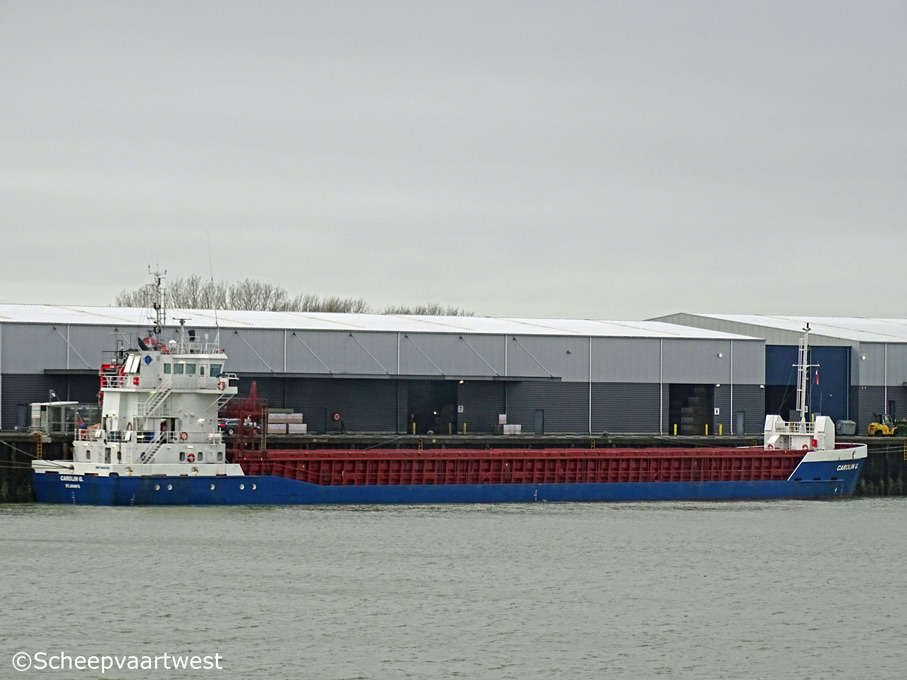

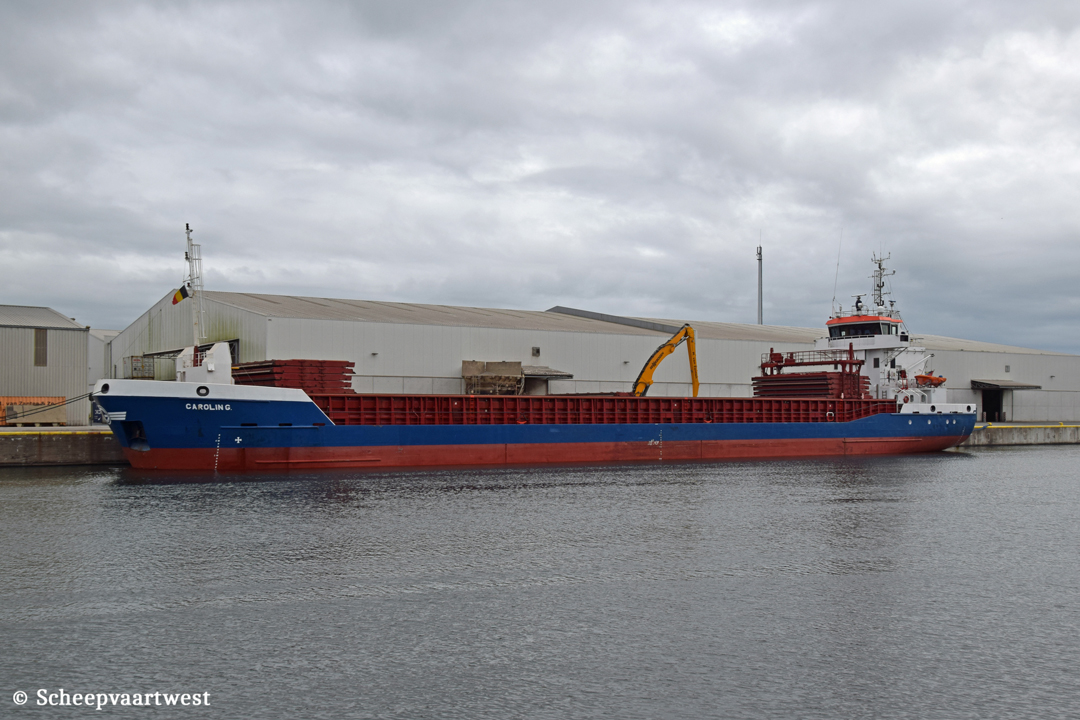

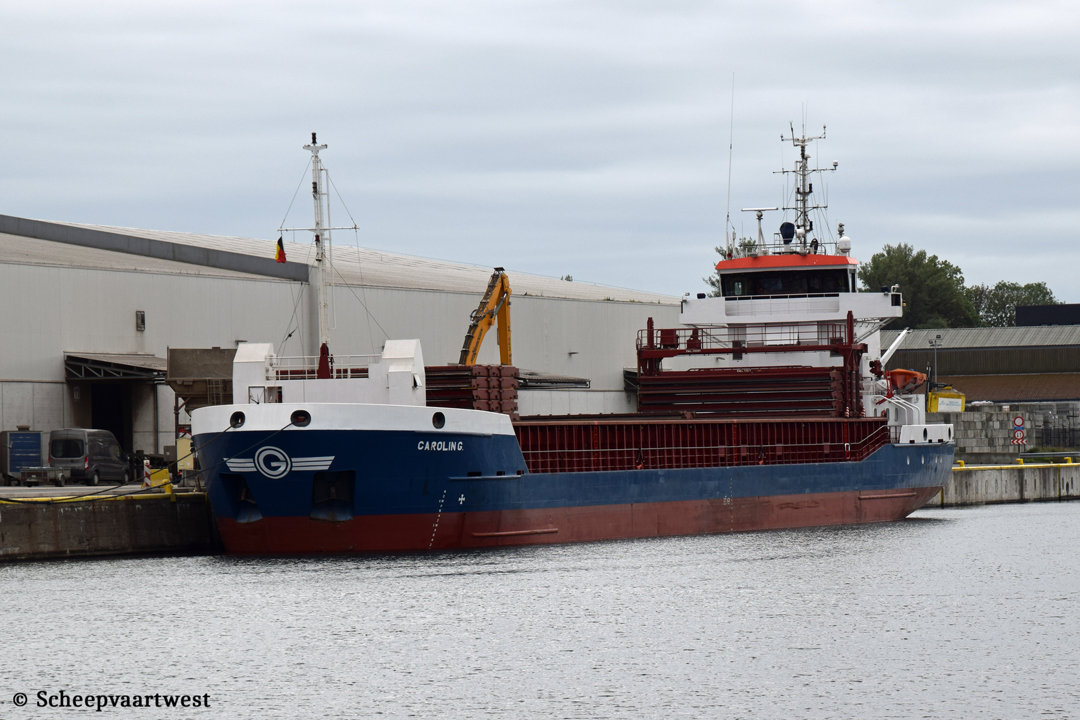

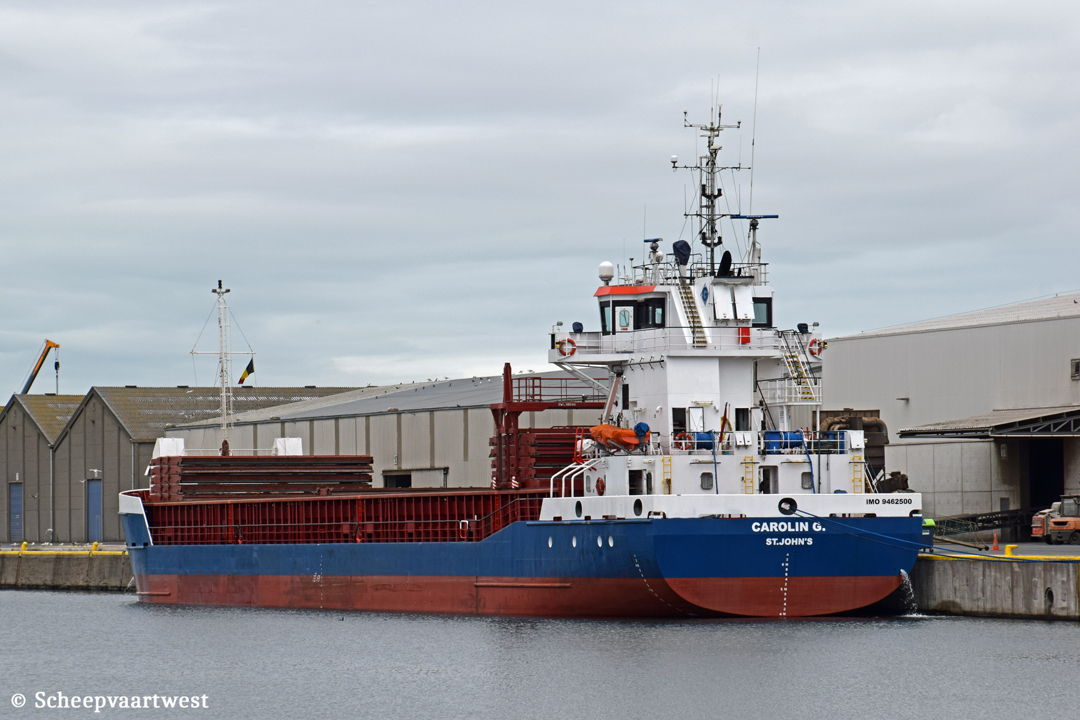

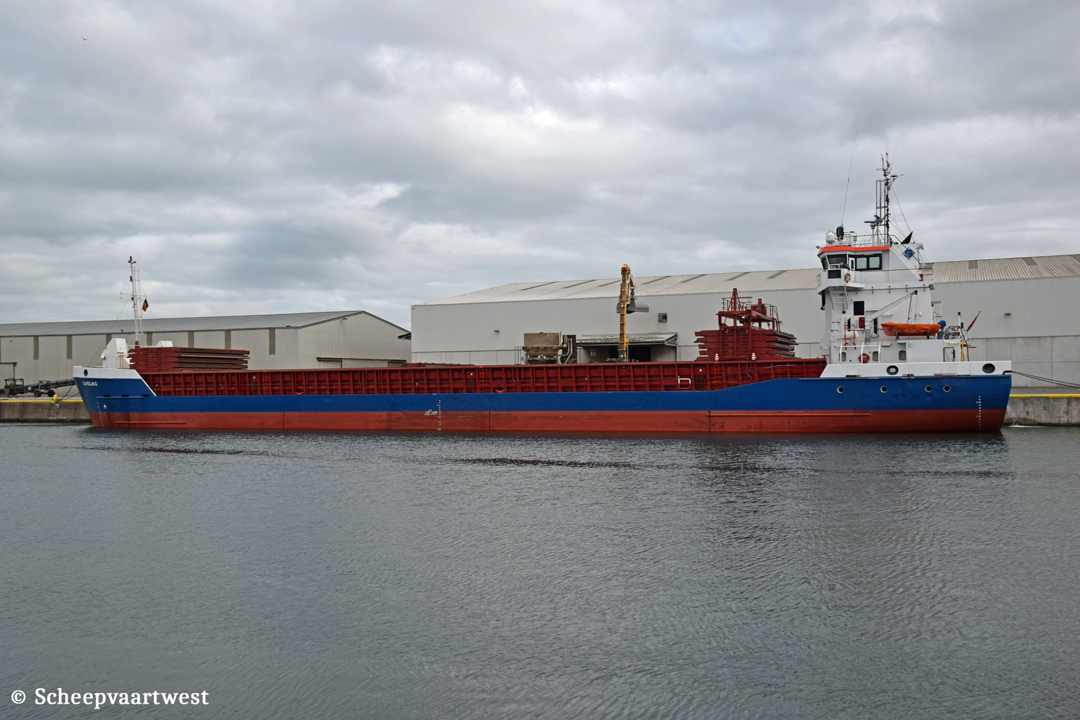

Brugge 25 September 2023 |
 |
 |
 |
 |
|||
| Brugge 25/09/23 | Brugge 25/09/23 | Brugge 25/09/23 | Vlissigen 01/12/15 | |||
|
Name |
CAROLIN G. |
|
Previous names |
Carolin G. - Until 2016 Wilson Dale - Until 2019 |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9462500 |
|
Call sign |
V2DX9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.545 t |
|
DWT |
Summer: 3.798 t Winter: 3.680 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
In hold: 113 On deck: 68 Total: 181 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,50 m extreme |
|
Draught |
Summer: 5,42 m Winter: 5,31 m Ballast: 3,20 m |
|
Keel to mast end |
24,80 m |
|
Depth |
7,00 m moulded |
|
Speed |
12,5 knots |
|
Built |
2008 |
|
Keel laid |
25/07/2007 |
|
Launch date |
16/05/2008 |
|
Date of completion |
27/11/2008 |
|
Builder casco |
Brodogradiliste "Tito" Sava Macvanska Mitrovica Macvanska Mitrovica Republic of Serbia |
|
Builder completion |
Damen Shipyard Bergum Bergum The Netherlands |
|
Yard number |
9371 |
|
Hull material |
Shipbuilding steel (standard) |
|
Moveable bulkheads |
2 / 6 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.066 hp at 1.000 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller- aft at 226 rpm |
|
Electric installations |
1x Plant 400 V - 175 kVA 1x Plant 400 V - 324 kVA |
|
Shaft generator |
1x 324 kVA |
|
Generators |
1x Main diesel generatorset 175 kVA Builder: Valmet Oy |
|
Emergency & harbour gen. |
1x Sisu Diesel 420 DSRG diesel generatorset 77 kVA |
|
Compressed air receivers |
2x Receivers each 150 litres - 30,0 bar |
|
Bow thruster |
1x Bow thruster 220 kW, forward |
|
Number of holds |
1 61,66 x 10,12 x 8,63 m (narrowing fore and aft) |
|
Hold capacity |
5.328 m³ / 188.268,55 ft³ |
|
Number of hatches |
1 62,70 x 10,10 m |
|
Hatch type |
Pontoon |
|
Max. permitted loads |
Tanktop: 15,0 t/m² On hatches: 1,6 t/m² |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Length: 440,00 m Diameter: 32 mm |
|
Manager |
Gerdes Reederei Hermannstraße 1A 49733 Haren (Ems) Germany |
|
Registered owner |
Carolin G Gerdes Schiffahrts Hermannstrasse 1A 49733 Haren (Ems) Germany |
|
Previous owners |
2008 - 2014 Gerdes Bereederungs- und Verwaltungs GmbH |
|
Latest data adjustment |
02 October 2023 |
