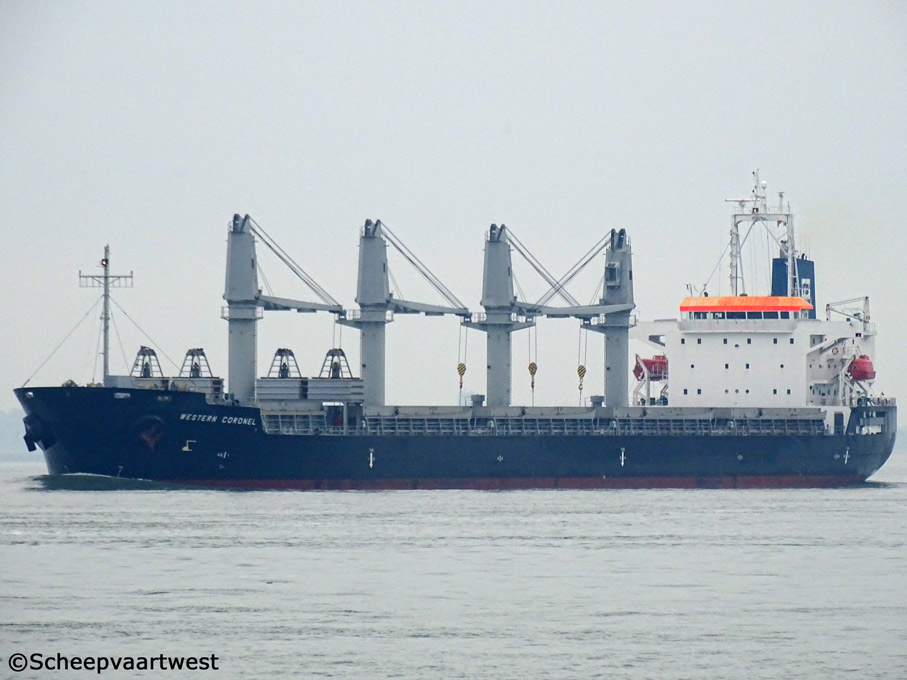

Western Coronel 01

Westerschelde 19 October 2015

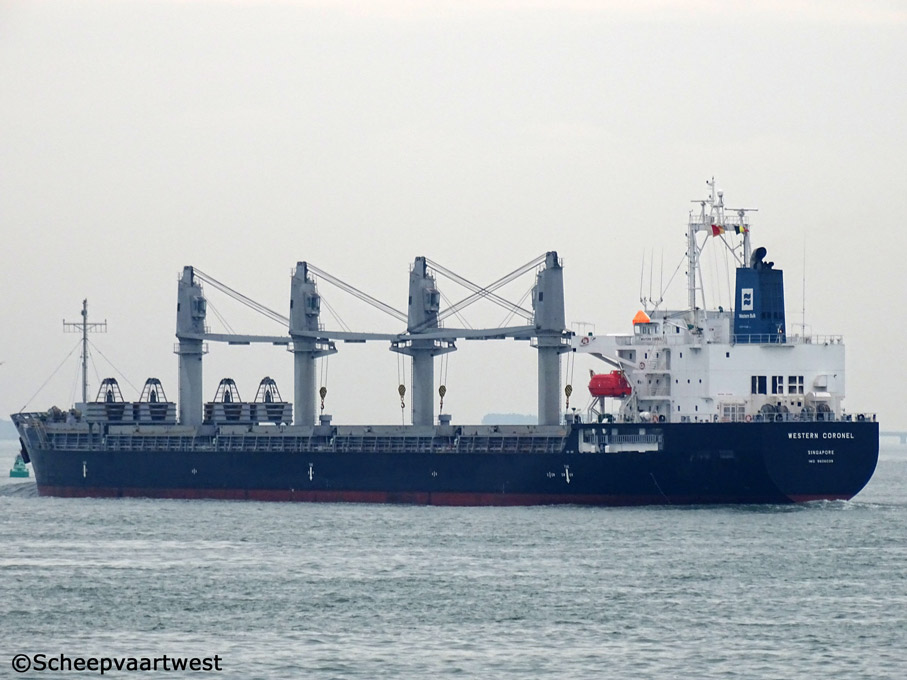

Western Coronel 02
Westerschelde 19/10/15



Name

WESTERN CORONEL

Type

Bulk carrier - Strengthened for heavy cargo

Handysize

IMO-number

9606039

Call sign

2V2565

Flag

Republic of Singapore

Port of registry

Singapore City

GT

22.871 t registered

DWT

Summer: 37.084 t

NT

12.519 t registered

Length

177,85 m overall

Breadth

28,60 m moulded

Draught

Summer: 10,87 m

Moulded L x B x D

169,80 x 28,60 x 15,00 m

Registered L x B x D

170,58 x 28,60 x 15,00 m

Freeboard

4.192 mm

Depth

15,00 m moulded

Speed

15,7 knots

Built

2014

Keel laid

22.12.2011

Launch date

31.05.2014

Date of completion

31.07.2014

Builder

Saiki Heavy Industries Co. Ltd.
Saiki
Japan

Yard number

586

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x 2 stroke single acting 6 cylinder 460 x 1.932 mm diesel engine 7.050 kW at 110,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 470 mm

Propellers

1

Boilers

1x Auxiliary Vertical boiler - 6,9 bar

Evaporation: 2,30 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators - 1.786 kVA

Hold capacity

Bale: 45.294 m³

Grain: 45.790 m³

Tank capacities

Fuel oil: 1.633 m³

Fresh water: 579 m³

Water ballast: 13.729 t

Manager

Bright Star Ship Management Inc.

Operator

Western Bulk ASA

Chartered

w/Purchase Options

Registered owner

Grace Ocean Private Limited

Latest data adjustment

15 November 2015
