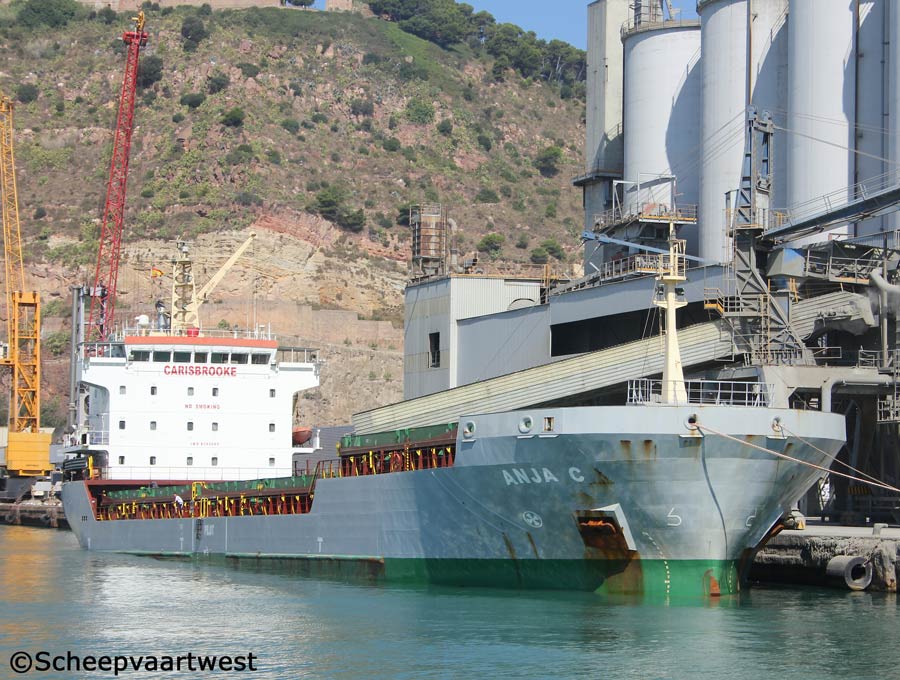

Anja C 01

Barcelona, Spain 29 August 2015

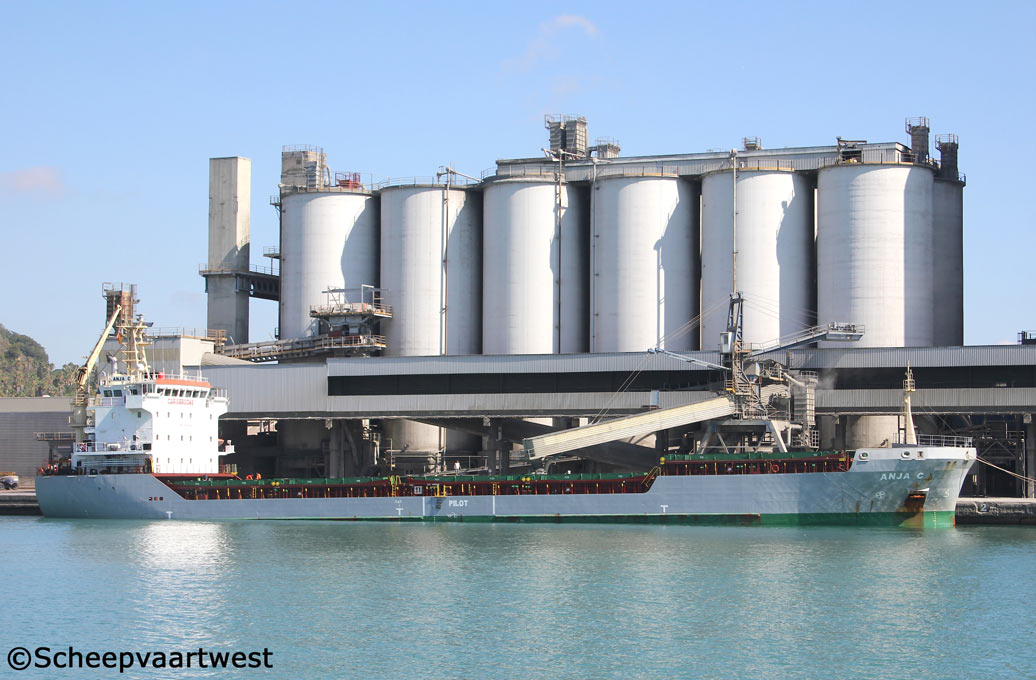

Anja C 02
Barcelona, Spain 29/08/15



Name

ANJA C

Type

General cargo ship - heavy cargo

IMO-number

9362669

Call sign

MMTT9

Flag

Isle of Wight - United Kingdom

Port of registry

Cowes

GT

5.604 t

DWT

Summer: 8.098 t

DWCC

Summer: 7.800 t

NT

2.877 t

Length

108,16 m overall

103,90 m between perpendiculars

Breadth

18,20 m

Draught

Max.: 7,10 m

Air draft

27,35 m in ballast

Freeboard

2.023 mm

Depth

9,00 m

Speed

Max.: 12,4 knots

Service: 11,0 knots

Built

2006

Date of completion

20.07.2006

Builder

Jiangsu Yangzijiang Shipbuilding Co.,Ltd.
Jiangyin
China

Yard number

YZJ2005-700C

Hull material

Mild steel

Main engine

1x B&W Alpha STX 7 S27-MK6MC - 4 stroke 7 cylinder 260 x 980 mm diesel engine - 2.808 kW / 3.815 hp at 250 rpm

Builder: STX Engine Co., Ltd.

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHM 17,10 m² - 8,0 bar

Generators

2x Lindenberg D2876 diesel generatorset 488 kVA - 390 kW - 530 hp

Emergency generator

1x Lindenberg D2866 diesel generatorset 391 kVA - 313 kW - 425 hp

Bow thruster

1x 280 kW

Number of holds

3

Hold 1: 18,80 x 15,00 m Narrowing Fwd to 6,40 m / Height 11,00 m
Hold 2: 29,00 x 15,00 m x 9,00 m - Pure Box
Hold 3: 28,0 x 15,0 m Narrowing aft to 8,00 m / Height 9,00 m

Total capacity of holds

Hold 1: 95.750 ft³

Hold 2: 137.750 ft³

Hold 3: 128.500 ft³

Total: 362.000 ft³ / 10.326,17 m³

Hatch type

Hydraulic Macgregor folding type

Strength

Tanktop: 15 t/m²

Tank capacities

Fuel oil: 490,45 m³

Crew

15

Manager

Carisbrooke Shipping UK

Medina Village Bridge Rd
Medina Village, Medina Rd
Cowes (isle Of Wight)
United Kingdom

Registered owner

Nomadic Short Sea Shipping A.S.

Latest data adjustment

30 September 2015
