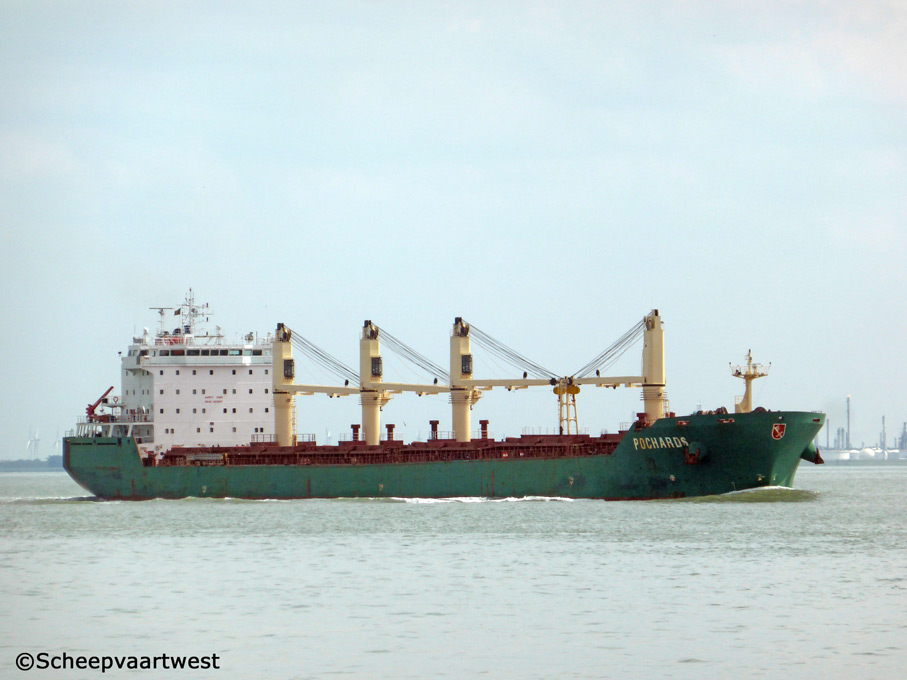

Pochard S 01

Westerschelde 31 July 2015



Name

POCHARD S

Previous names

Launch as: Panarea

2003 - 05.2003 Porchard

05.2003 - 05.2014 Pochard

Type

Bulk carrier - heavycargo

IMO-number

9262534

Call sign

E5U2843

Flag

Avatiu

Port of registry

Cook Islands

Previous flags

Antigua & Barbuda, St. John's - Call sign: V2BY3

GT

22.655 t

DWT

Summer: 37.384 t

NT

12.073 t

Length

199,82 m overall

192,43 m between perpendiculars

Breadth

23,70 m

Draught

Summer: 11,27 m

Air draft

34,54 m without holds flooded but fully ballasted

Depth

15,30 m moulded

Speed

13,5 knots

Built

2003

Keel laid

18.08.2002

Date of completion

11.07.2003

Builder

Shanghai Shipyard
Shanghai
China

Yard number

SS196

Hull material

Steel

Main engine

1x STX Man B&W 6S46MC-C - 2 stroke 6 cylinder diesel engine 460 x 1.932 mm - 7.2000 kW / 9.655 bhp at 118,2 rpm

Builder: Hudong Heavy Machine Co., Ltd.

Propellers

1x Screw propeller solid - aft at 129 rpm

Boilers

1x CHF Aalborg 205,60 m² - 9,00 bar

Generators

2x Main diesel generatorsets 850 kVA - 680 kW - 1012 hp

1x Main diesel generatorsets 850 kVA - 680 kW

Emergency generator

1x Diesel generatorsets 175 kVA - 140 kW - 272 hp

Bow thruster

1x 900 kW / 1.224 bhp

Number of holds

6
Hold 1: 19,20 x 16,80 x 21,40 m

Hold 2: 27,20 x 21,40 m

Hold 3: 27,20 x 21,40 m

Hold 4: 27,20 x 21,40 m

Hold 5: 27,20 x 21,40 m

Hold 6: 19,20 x 21,40 x 15,60 m

Total capacity of holds

42.775 m³

Number of hatches

6

Hatch 1: 12,80 x 15,60 m

Hatch 2: 19,20 x 17,60 m

Hatch 3: 19,20 x 17,60 m

Hatch 4: 19,20 x 17,60 m

Hatch 5: 19,20 x 17,60 m

Hatch 6: 12,80 x 17,60 m

Hatch type

MacGregor high stowing & folding, operated by external hydraulic cylinders

Tank capacities

Fuel oil: 1.891,8 m³

Cargo gear

4x Cranes - SWL 40,0 t each

Manager

Armador Ship Management
Sümer Mah. 3/1 Sok. No:2 Kat:3
Zeytinburnu / Istanbul
Turkey

Registered owner

Pochard Shipping & Trading Ltd.
Istanbul
Turkey

Latest data adjustment

08 September 2015
