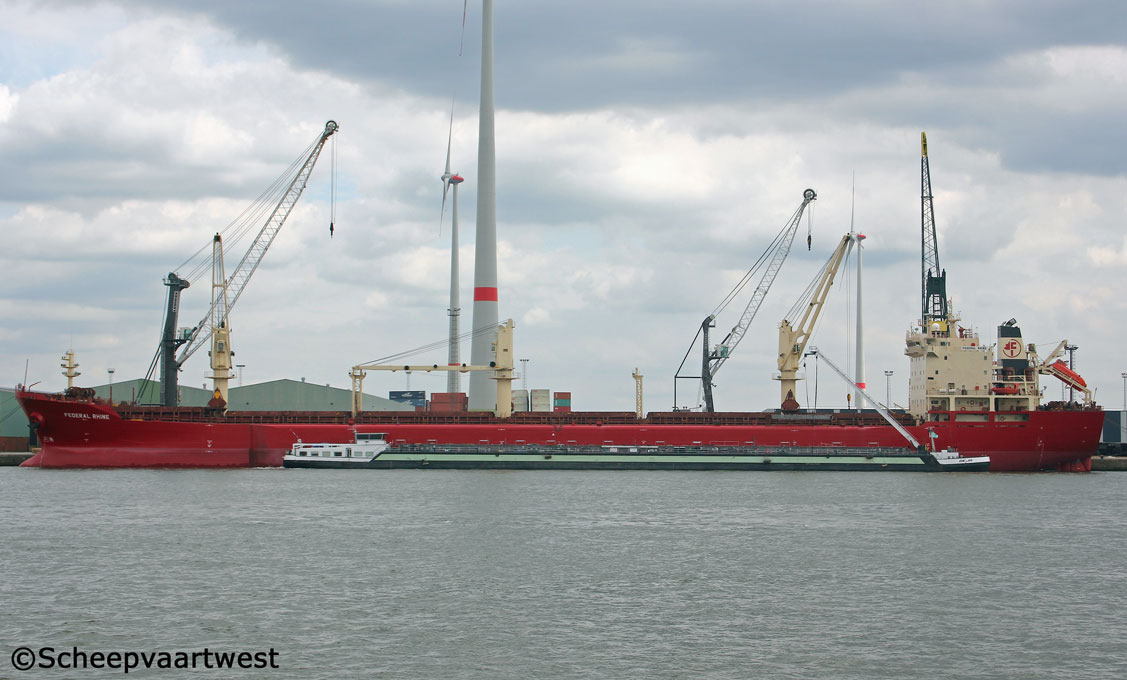

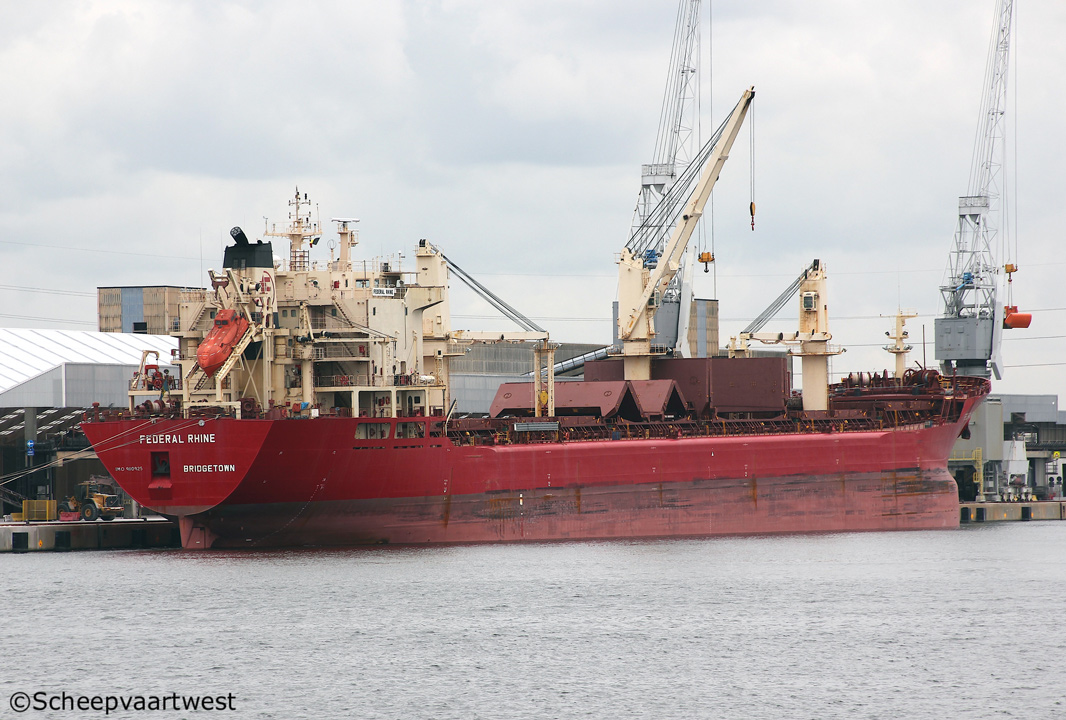

Federal Rhine - IMO 9110925

Antwerpen 25 May 2015

Name

FEDERAL RHINE

Type

Bulk carrier

IMO-number

9110925

Call sign

8PNZ

Flag

Barbados

Port of registry

Bridgetown

GT

20.837 t registered

DWT

Summer: 34.167 t

Winter: 33.223 t

Tropical: 35.113 t

NT

11.404 t registered

Panama: 17.387 t

Suez: 18.080 t

Length

200,00 m overall

191,00 between perpendiculars

Breadth

23,55 m extreme

23,44 m moulded

Draught

10,74 m

Depth

14,89 m

Speed

14,0 knots

Built

1996

Keel laid

20.05.1996

Launch date

02.08.1996

Date of completion

17.01.1997

Builder

Jiangnan Shipyard Group Co.
Shanghai
China

Yard number

2217

Hull material

Steel

Hull type

Single hull

Bulkheads

Transverse: 8

Main engine

1x MAN B&W 6S50MC - 2 stroke 6 cylinder diesel engine

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, composite GCS-22

builder: Aalborg

Generators

3x Daihatsu 6DKB-20 diesel generatorsets

Emergency generator

1x MAN D0226MLE diesel generatorset

Bow thruster

1

Number of holds

6

Hold 1: 23,00 x 7,50/17,80 m

Hold 2: 24,00 x 18,00 m

Hold 3: 26,80 x 18,00 m

Hold 4: 24,00 x 18,00 m

Hold 5: 26,80 x 18,00 m

Hold 6: 23,00 x 17,80/11,50 m

Cargo hold capacity

Grain / bale

Hold 1: 6.180 / 5.951 m³

Hold 2: 6.950 / 6.641 m³

Hold 3: 7.795 / 7.519 m³

Hold 4: 6.868 / 6.606 m³

Hold 5: 7.804 / 7.527 m³

Hold 6: 6.266 / 6.093 m3

Total: 41.863 / 40.337 m³

Number cargo hatches

Hatch 1: 14,40 x 13,10 m

Hatch 2: 18,40 x 13,10 m

Hatch 3: 20,00 x 13,10 m

Hatch 4: 18,40 x 13,10 m

Hatch 5: 20,00 x 13,10 m

Hatch 6: 16,00 x 13,10 m

Hatch cover type

Folding hydraulic

Tank capacities

Ballast: 18.615,93 m³

Intermediate fuel oil: 1.373 m³

Marine diesel oil: 432 m³

Cargo gear

3x Electro hydraulic cranes - SWL 30, t each

3x Grabs each 10,0 m³

Manager

Anglo Eastern Shipmanagement Ltd.
Hong Kong
China

Owner

Fednav Group
Montreal
Canada

Registered owner

Federal Atlantic Ltd.

Previous owners

1997 - 2007 Lake Superior Inc.

Latest data adjustment

24 July 2015
