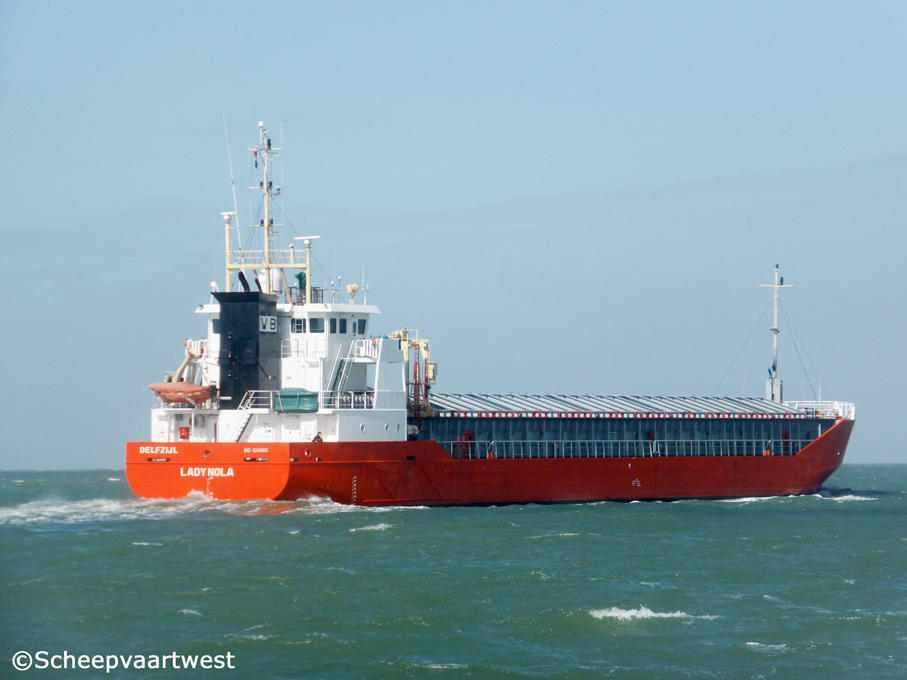

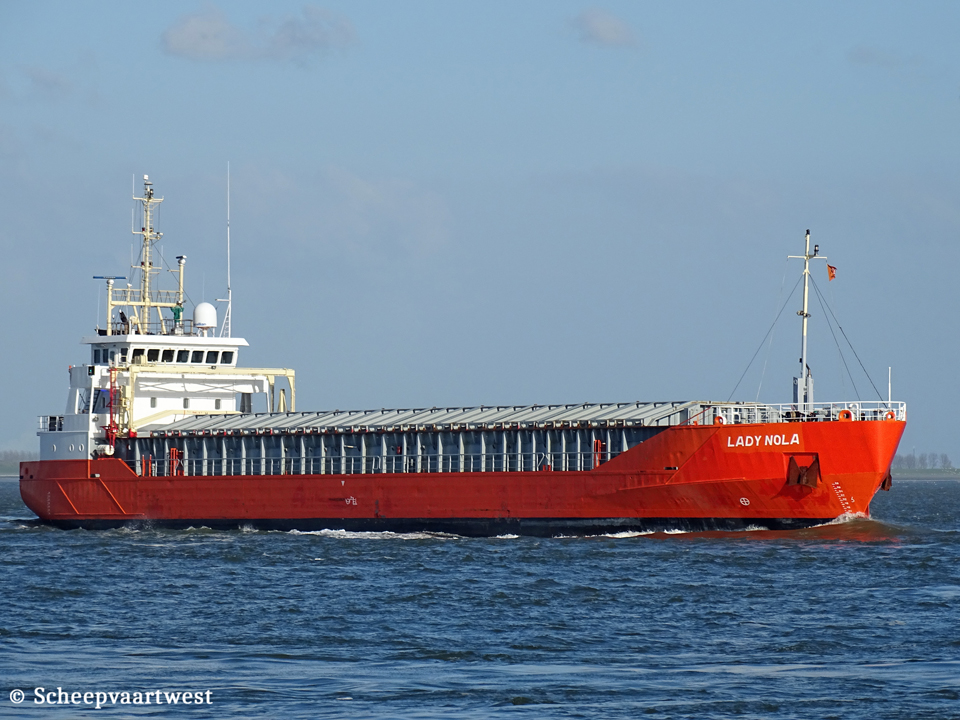

Westerschelde 19 April 2016 |
 |
 |
 |
||

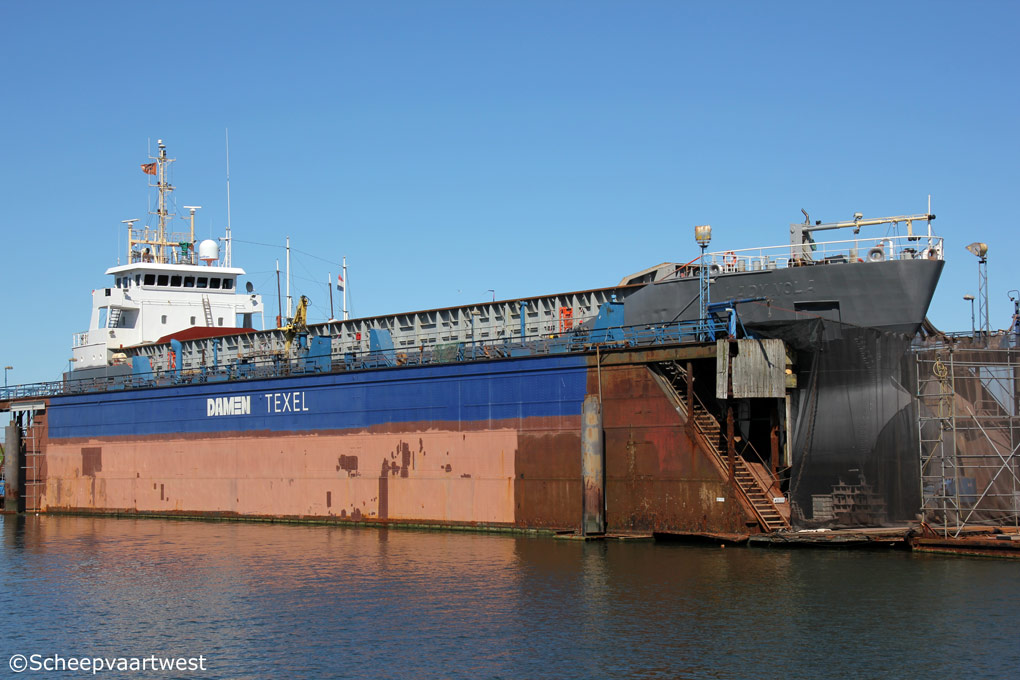

| Westerschelde 03/06/15 | Oudeschild-Texel 19/07/16 |

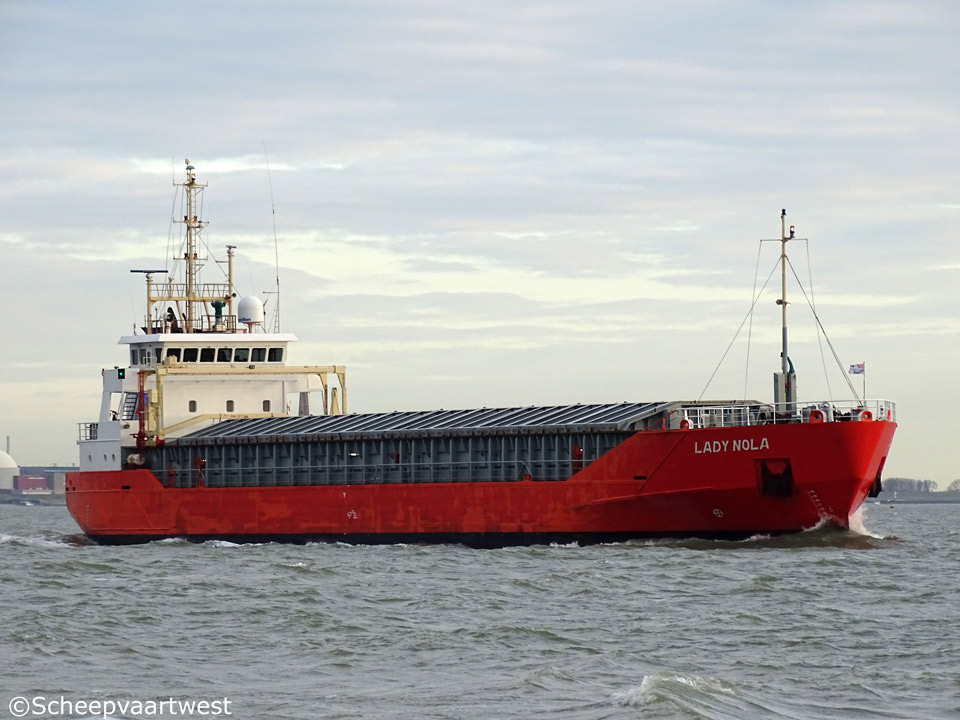

Westerschelde 02/12/15 | ||
|
Name |
LADY NOLA |
|
Previous names |
2002 - 09/2009 Nola |
|
Type |
Multi-purpose general cargo |
|
IMO-number |
9243863 |
|
Call sign |
PBFO |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
1.976 t |
|
DWT |
Summer: 3.002 t |
|
NT |
784 t |
|
DWCC |
Summer & winter: 2.985 t |
|
Length |
79,98 m overall |
|
Breadth |
12,10 m moulded |
|
Draught |
Summer: 4,00 m |
|
Air draft |
22,00 m ballast |
|
Freeboard |
2.450 mm |
|
Depth |
6,45 m moulded |
|
Speed |
Max.: 12,0 knots |
|
Built |
2002 |
|
Keel laid |
2001 |
|
Launch date |
11/01/2002 |
|
Delivery date |
15/02/2002 |
|
Builder |
Koninklijke Niestern Sander B.V. Delfzijl The Netherlands |
|
Yard number |
909 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x Caterpillar Type 3512B - 4 stroke single acting 12 cylinder 170 x 190 mm combustion engine 1.249 kW / 1.834 hp at 1.600 rpm Built: 2001 Manufacturer: Caterpillar Tractor Company Inc., Peoria (Illinois) - U.S.A. |
|
Gearbox |
1x Reintjes WAF-1172 - Reduction 7.048:1 |
|
Propellers |
1x Solid propeller - aft at 227 rpm Diameter: 2.600 mm - 5 blades |
|
Generators |
1x Sisu Diesel 645DSBIMG - 6 cylinder 111 x 145 mm diesel engine 180 kW at 1.500 rpm connected with Stamford HC.M434D1 generator 275 kVA Built: 2001 1x Sisu Diesel 634 DSBIG - 6 cylinder 108 x 134 mm diesel engine 150 kW at 1.500 rpm connected with Stamford UC.M274H1 generator 175 kVA Built: 2001 1x Sisu Diesel 420DSRIG - 4 cylinder 108 x 120 mm diesel engine 90 kW at 1.500 rpm connected with Stamford generator 97 kVA |
|
Bow thruster |
1x Promac Thruster - 180 KW |
|
Number of holds |
1 Dimensions: 49,70 x 10,00 x 7,83 - 8,97 m |
|
Hold capacity |
Grain: 149.584 ft³ / 4.235,75 m³ |
|
Hold ventilation |
6x Air-changes/h |
|
Timber capacity |
3.000 / 3.300 m³ |
|
Number of hatches |
1 Dimensions: 49,70 x 10,00 m |
|
Max. permitted loads |
Tanktop: 10 t/m² |
|
Tank capacities |
Ballast water: 1.104 m³ Potable Water: 33 m³ Fuel: 129 m³ Lubricating Oil: 6 m³ Sewage: 6 m³ Sludge: 5 m³ |
|
Lifting equipment |
1x Gantry deck crane - SWL 8,0 t |
|
Manager |
Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V. Handelskade Oost 5 9934 AR Delfzijl The Netherlands |
|
Owner |
Beheermaatschappij Timberfleet II B.V. Delfzijl The Netherlands |
|
Previous names & owners |
02/2002 - 27/10/2008 Nola - C.V. Timberfleet, Delfzijl - The Netherlands 27/10/2008 - 28/09/2009 Nola - Beheermaatschappij Timberfleet II B.V., Delfzijl - The Netherlands |
|
Renamed |
01/2023 Baltic Arrow St. Kitts & Nevis, Basseterre - call sign: V4YP4 Owner: Port of Wisbech Holding Ltd., St. Petersburg - Russia Manager: Klip Marine Shipmanagement Ltd., Tallinn (Reval) - Estonia |
|
Latest data adjustment |
22 July 2015 |
