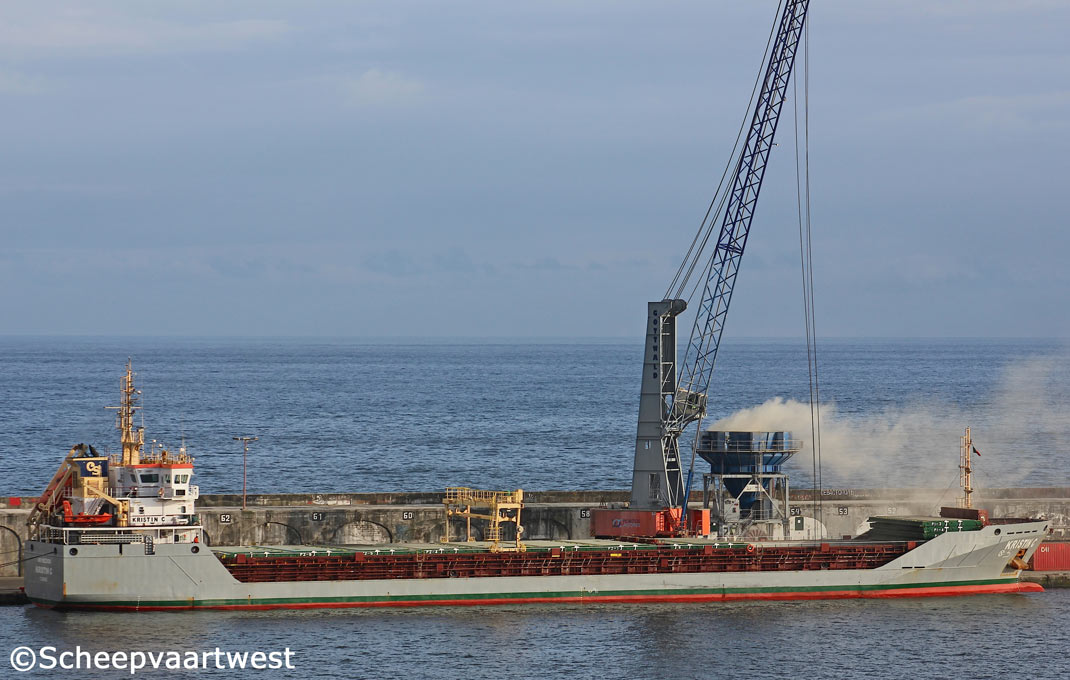

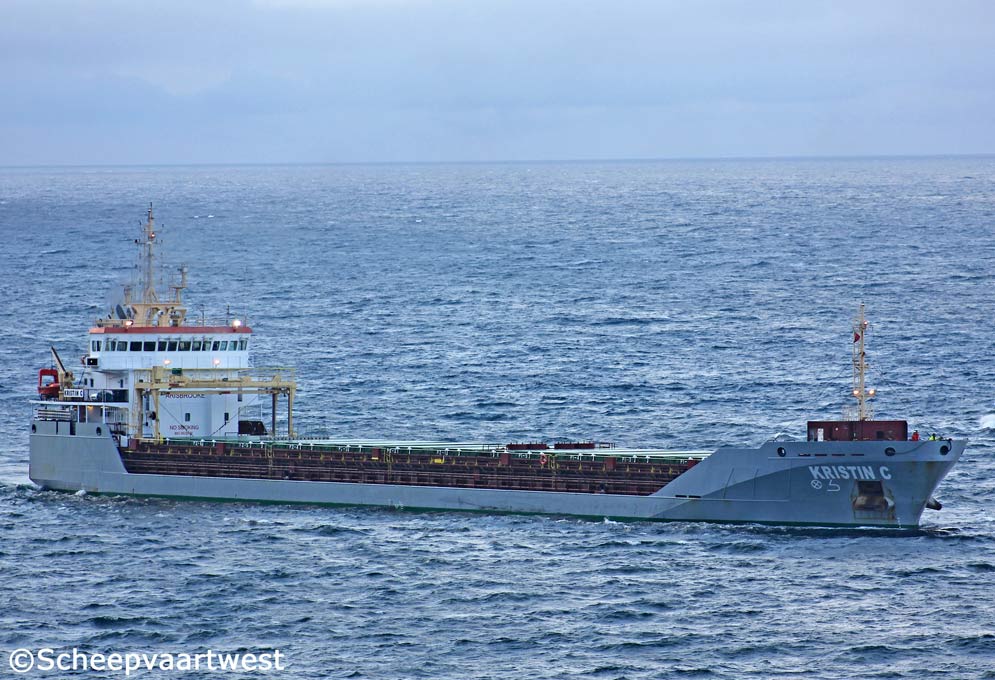

Kristin C 01

Ponta Delgada - Azores 09 June 2015



Kristin C 02
09/06/15



Name

KRISTIN C

Type

General cargo ship - Heavycargo - Equipped for carriage of containers

IMO-number

9523938

Call sign

2CTI5

Flag

Isle of Wight - United Kingdom

Port of registry

Cowes

GT

4.151 t

DWT

Summer: 6.250 t

NT

2.323 t

Length

106,07 m overall

Breadth

15,50 m

Draught

6,63 m

Air draft

24,00 m in ballast

Freeboard

1.522 mm

Depth

8,14 m

Speed

10,3 knots

Built

2010

Date of completion

20.01.2010

Builder

Jiangsu Yangzijiang Shipyard Co., Ltd.
Jiangyin
China

Yard number

YZJ2008-892

Hull material

Steel

Main engine

1x MaK 6M25C - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.980 kW / 2.690 hp at 750 rpm

Built: 11.06.2009

Builder: Caterpillar motoren Guangdong Co.,Ltd., Foshan - P.R. China

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHO 6,90 m² - 4,0 bar

Shaft generator

1x 390 kVA - 312 kW

Generators

3x main diesel generatorsets each 200 kVA - 160 kW - 204 hp

Number of holds

2

Hold 1: 34,50 x 11,70 x 9,3: m (narrows aft part 6,50 m to 6,00 m
Hold 2: 45,50 x 11,70 x 9,3: m (narrows fore part 11,20 m to 6,00 m

Hold capacity

Grain: 293.000 ft³ / 10.251 m³

Number of hatches

2

hatch 1: 34,50 x 11,70 m

hatch 2: 45,50 x 11,70 m

Hatch covers type

Pontoon stackable

Max. permitted loads

Tanktop: 15 t/m²

Fuel capacity

303,15 m³

Manager

Carisbrooke Shipping Ltd.

Medina Village Bridge Rd, Medina Village

Medina Road
Cowes, PO31 7DA
Isle of Wight - United Kingdom

Registered owner

Carisbrooke Shipping 6250 BV Care of Carisbrooke Shipping Ltd.
Bridge House, 38
Medina Road
Cowes, PO31 7DA
Isle of Wight - United Kingdom

Latest data adjustment

10 July 2015
