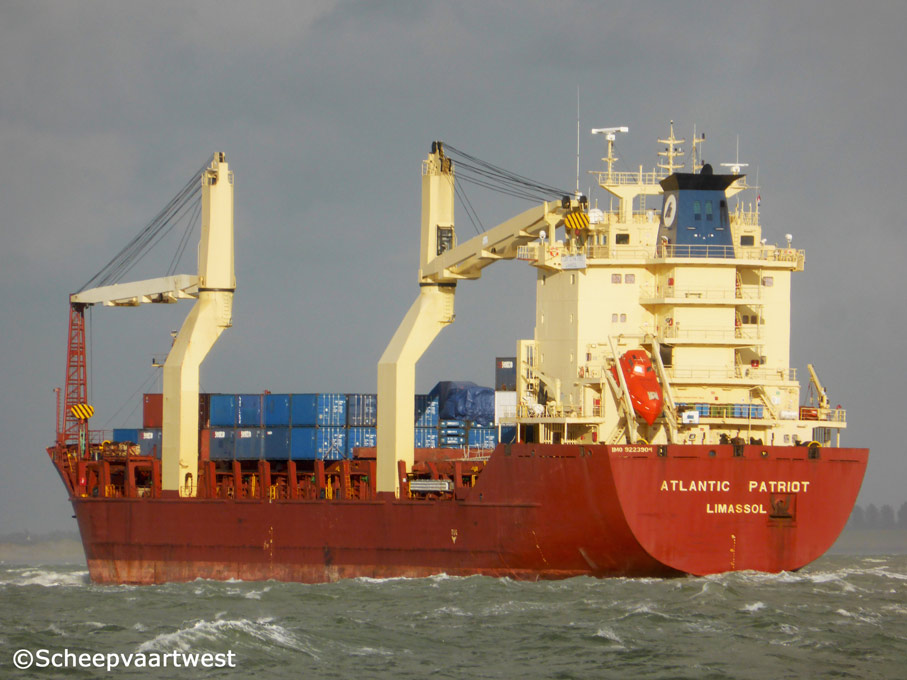

Westerschelde 07 November 2015 |
 |

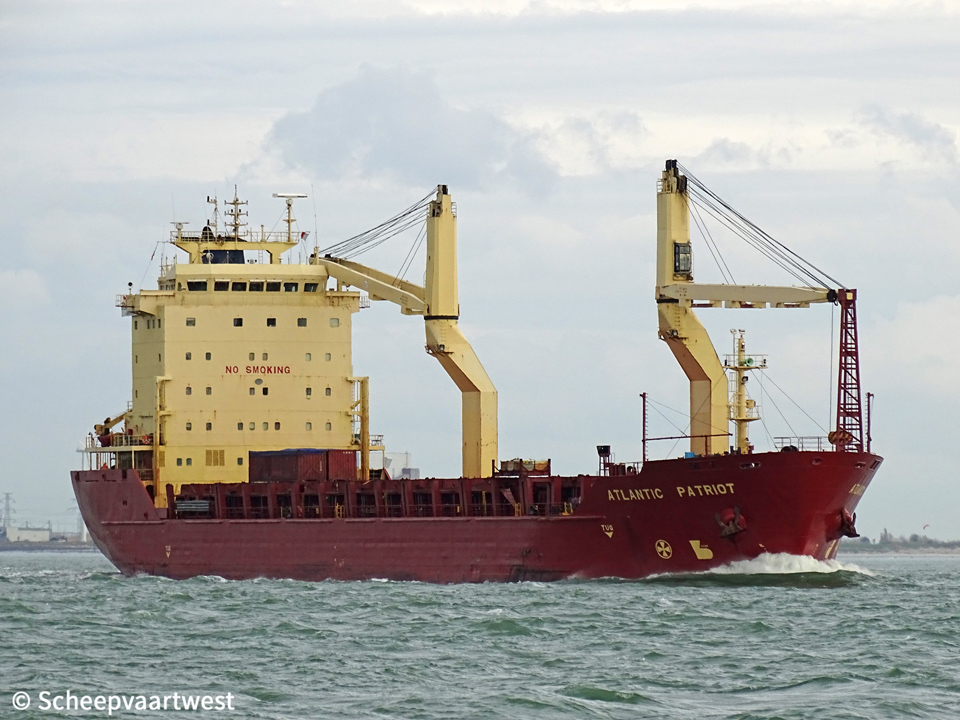

| Westerschelde 19/05/15 |
|
Name |
ATLANTIC PATRIOT |
|
Previous names |
2003 Launch as: Atlantic Progress 09/2003 - 06/2008 BBC Russia 06/2008 - 07/2010 Federal Patriot 07/2010 - 08/2013 HAL Patriot 08/2013 Atlantic Patriot |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Box-shaped tweendecker |
|
IMO-number |
9223904 |
|
Call sign |
P3KN9 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
12.993 t |
|
DWT |
Summer: 17.472 t Winter: 16.934,7 t |
|
NT |
5.894 t |
|
Light ship |
6.788 t |
|
Number of 20ft containers |
On deck: 710 In hold: 408 Total: 1.118 |
|
Number of 40ft containers |
On deck: 311 + 37 TEU In Hold: 193 + 22 TEU Total: 504 + 59 TEU |
|
Reefer capacity |
30 |
|
Length |
143,11 m overall 133,00 m between perpendiculars 134,40 m registered |
|
Breadth |
23,13 m extreme |
|
Draught |
Summer: 9,71 m Winter: 9,52 m |
|
Forecastle |
11,60 m |
|
Poop |
15,09 m |
|
Depth |
13,30 m moulded |
|
Speed |
Max.: 15,5 knots |
|
Built |
2003 |
|
Keel laid |
06/02/2002 |
|
Launch date |
30/06/2002 |
|
Date of completion |
15/01/2003 |
|
Builder |
New Century Shipbuilding Co., Ltd. Xingang Port Jingjiang People's Republic of China |
|
Yard number |
JS00-015 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Movable bulkhead |
Flush double skin sides & flush double skin bulkheads with 2 heights fixed rows of recessed lashing eyes |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7L42MC - 2 stroke 7 cylinder 420 x 1.360 mm combustion engine 6.965 kW at 176,0 rpm Year of manufacture: 2001 Manufacturer: Hudong Heavy Machinery Co., Ltd. 2851, Pudong Dadao Shanghai People's Republic of China |
|
Propellers |
1x Solid propeller (keyless) - aft at 176,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 15,9 m² 1x Steam boiler, exhaust gas heated - 8,0 bar Heating surface: 80,0 m² Year of manufacture: 2002 Manufacturer: Zhangjiagang Hailu Shazhou Boiler 17, Huangcheng Road South Zhangjiagang People's Republic of China |
|
Electric installations |
3x Plants each 440/220 V- 594 kVA 1x Plant 440 V - 106 kVA |
|
Generators |
3x MAN Holeby 5L16/24 main diesel engine 500 kW at 1.200 rpm connected with generators each 475 kW - 450 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 106 kVA |
|
Compressed air receivers |
2x Receivers each 2.500 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar 1x Receiver 250 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster Kawasaki - 500 kW, forward |
|
Number of holds |
3 No. 1: 22,60 x 13,25 x 11,80 m No. 2: 42,36 x 18,60 x 13,90 m No. 3: 28,20 x 18,60 x 13,90 m All holds with flush container sockets on tanktop and tweendeck |
|
Hold capacity |
Grain / Bale Hold 1: 126.232 ft³ Hold 2: 384.025 ft³ Hold 3: 255.999 ft³ Total: 766.256 ft³ |
|
Hold ventilation |
All holds mechanically ventilated: Hold #1: 7 air changes per hour Holds #2 & #3: 6 air changes per hour |
|
Number of hatches |
3 No. 1: 20,50 x 13,21 m No. 2: 38,80 x 18,60 m No. 3: 26,20 x 18,60 m |
|
Hatch cover type |
Mac Gregor hydraulic folding |
|
Tank capacities |
Fuel oil 98 %: 1.526 m³ Marine diesel oil 98%: 145 m³ Fresh water 100 %: 335,5 m³ Water ballast 100 %: 5.809 m³ |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Chain length: 577,50 m |
|
Cargo gear |
2x MacGregor Hagglund deck cranes - SWL 60,0 t each 32,00 m at 28,00 m outreach Combinable SWL 120 t |
|
Crew size |
22 |
|
Manager |
Hartmann Asia Container Line Limassol Cyprus |
|
Owner |
Intership Navigation Co. Ltd. Hartmann House 32, Miltonos Street 3050 Limassol Republic of Cyprus |
|
Renamed |
2017 Augusta Sun Cyprus, Limassol - Call sign: P3KN9 Owner: Ancohuma Shipping Co. Ltd. Manager: Intership Navigation Co. Ltd. |
|
Latest data adjustment |
18 August 2020 |
