Wadowice II 02

Westerschelde 05 April 2017

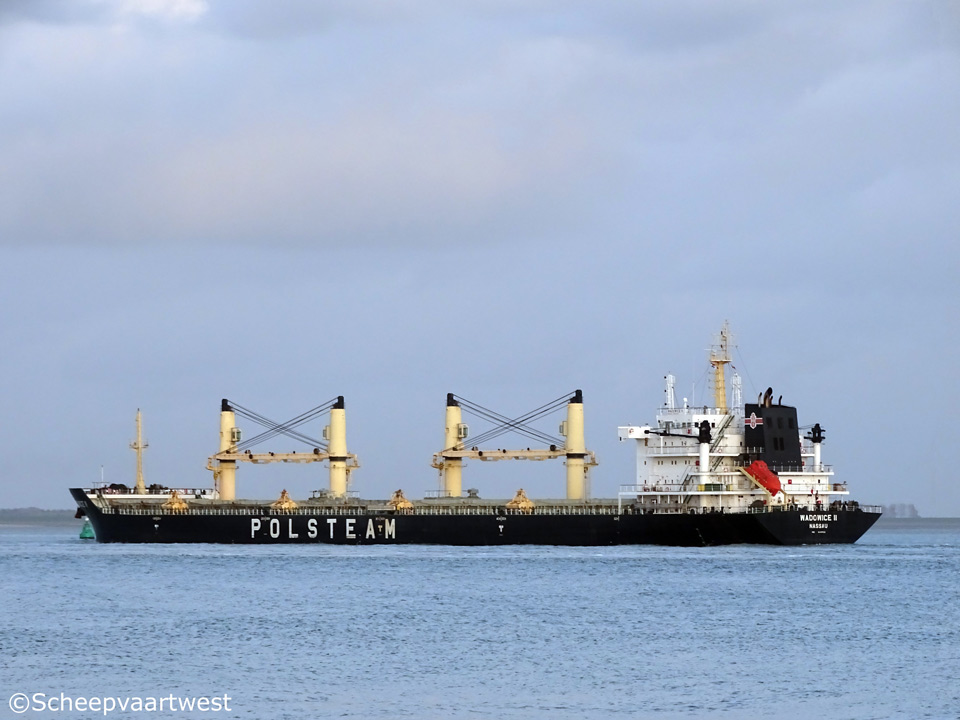

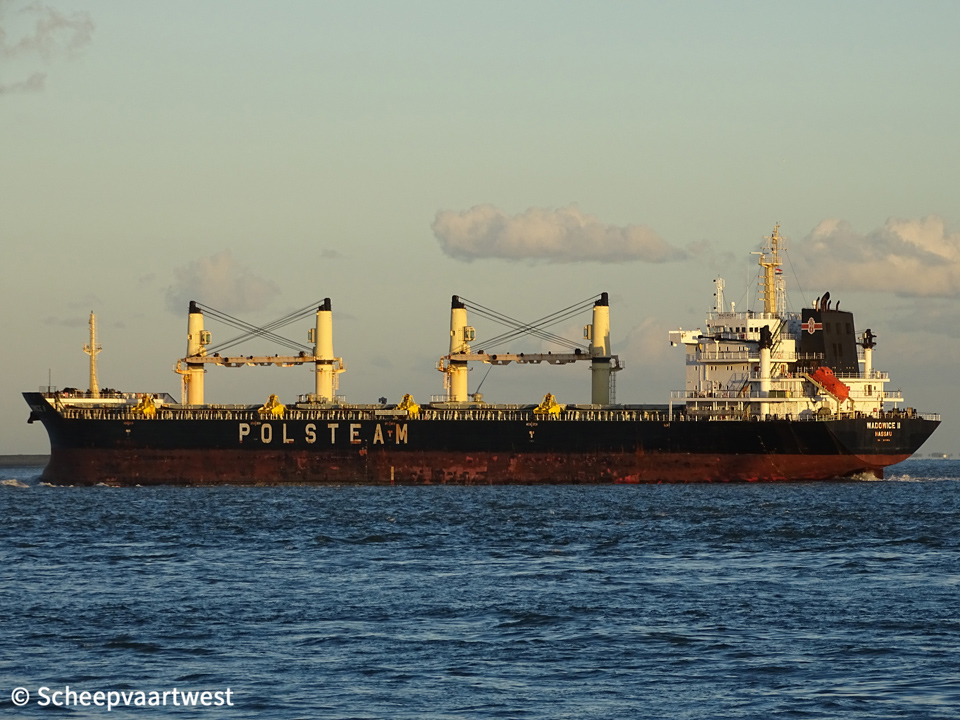

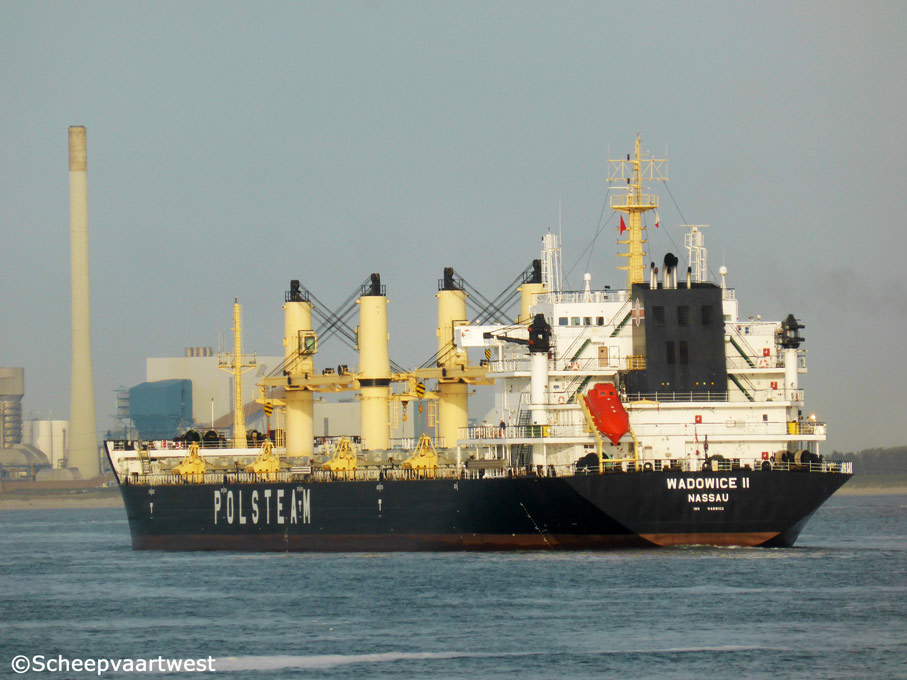

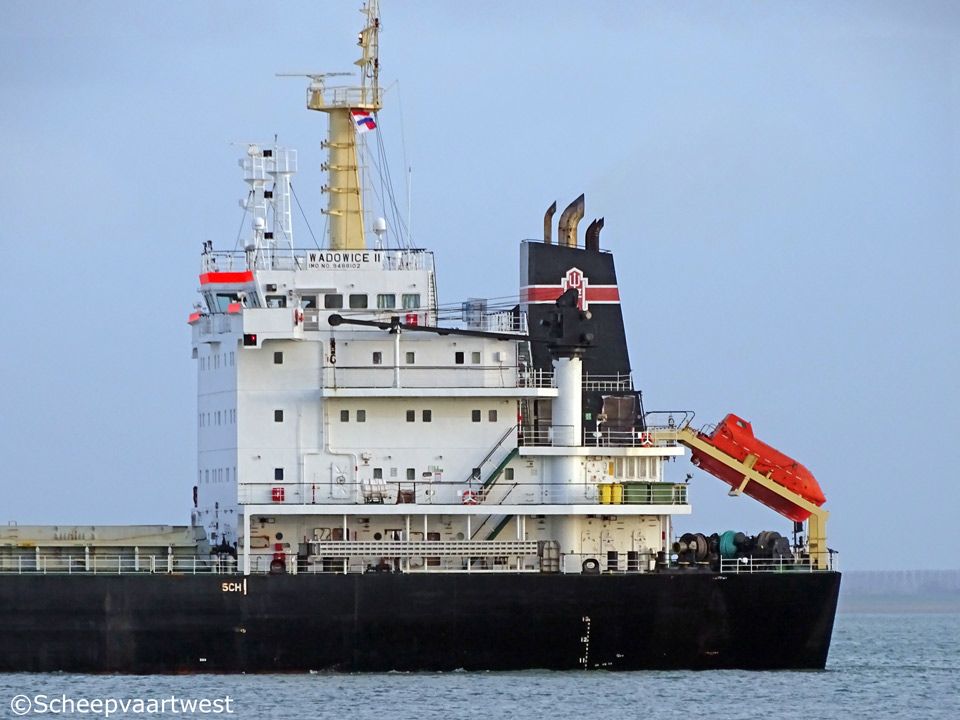

Wadowice II 04   Wadowice II 03   Wadowice II 01   Wadowice II 05
Westerschelde 05/04/17 Westerschelde 05/04/17 Westerschelde 11/05/15 Westerschelde 24/09/18



Name

WADOWICE II

Previous names

2010 Launch as: Wadowice

Type

Bulk carrier - Strengthened for heavy cargoes

IMO-number

9488102

Call sign

C6XW7

Flag

Bahamas

Port of registry

Nassau

GT

24.055 t registered

Suez: 25.367,62 t

DWT

Summer: 38.061 t

NT

12.162 t registered

Suez: 22.834,77 t

Panama: 20.028 t

Light ship

8.860 t

Length

189,99 m overall

183,00 m between perpendiculars

Breadth

28,50 m moulded

Draught

10,70 m

Freeboard

4.729 mm

Depth

15,10 m moulded

Speed

14,2 knots

Built

2010

Keel laid

22/07/2006

Launch date

08/01/2010

Date of completion

30/03/2010

Builder

Xingang Shipbuilding Heavy Industry Co., Ltd.

Tianjin

China

Yard number

SB 345-14

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Number of decks

1

Watertight bulkheads

15

Main engine

1x Wärtsilä 6RTA48T-B - 6 cylinder 480 x 2.000 mm combustion engine 7.368 kW at 118,0 rpm

Manufacturer: Yichang Marine Diesel Engine Plant Co.Ltd.(Sulzer), Yichang - China

Propellers

1x Fixed pitch propeller

Manufacturer: Dalian Marine Propeller Co., Ltd.

Boilers

1x Composite boiler Mission OC - 9,0 bar

Manufacturer: Aalborg Industries Ltd.

Generators

3x Wärtsilä 4L40 - 4 stroke 4 cylinder 200 x 208 mm

main diesel generatorsets each 645 kW

Manufacturer: CSIC Electrical Machinery Science & Technology Co.

Number of holds

5

Hold capacity

Bale: 47.848,5 m³

Grain: 49.031,6 m³

Number of tanks

Ballast: 14

Lubricating oil: 9

Fuel oil: 8

Fresh water: 5

Sludge: 4

Diesel oil: 3

Chain: 2

Waste water: 1

Organic compound: 1

Tank capacities 100%

Cargo Ballast: 10.782,2 m³

Diesel Oil: 193,1 m³

Freshwater: 387,8 m³

Fuel Oil: 1.909,2 m³

Lube Oil: 105,7 m³

Tank Ballast: 11.907,1 m³

Lifting equipment

1x Engine room crane - SWL 3,0 t

Manufacture: Jiangyin Xingcheng Marine Machinery Factory

2x Pedestal-mounted electric driven provision crane -

1x SWL 7,0 t

1x SWL 3,0 t

Manufacture: Wuxi Haitian Marine Equipment

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manufacture: Iknow Machinery Co., Ltd.

Crew size

19

Manager

Polsteam Shipping Co. Ltd. Limassol

c/o Polish Steamship Company

Pl. Rodla 8

Szczecin

Poland

Operator

Polsteam

Owner

Polska Zegluga Morska PP (Polsteam)

Registered owner

Ares Ten Shipping Ltd.

c/o Polska Zegluga Moorska PP

Plac Rodia 8

Szczecin

Poland

Latest data adjustment

18 October 2020
