Lisa - IMO 9384174

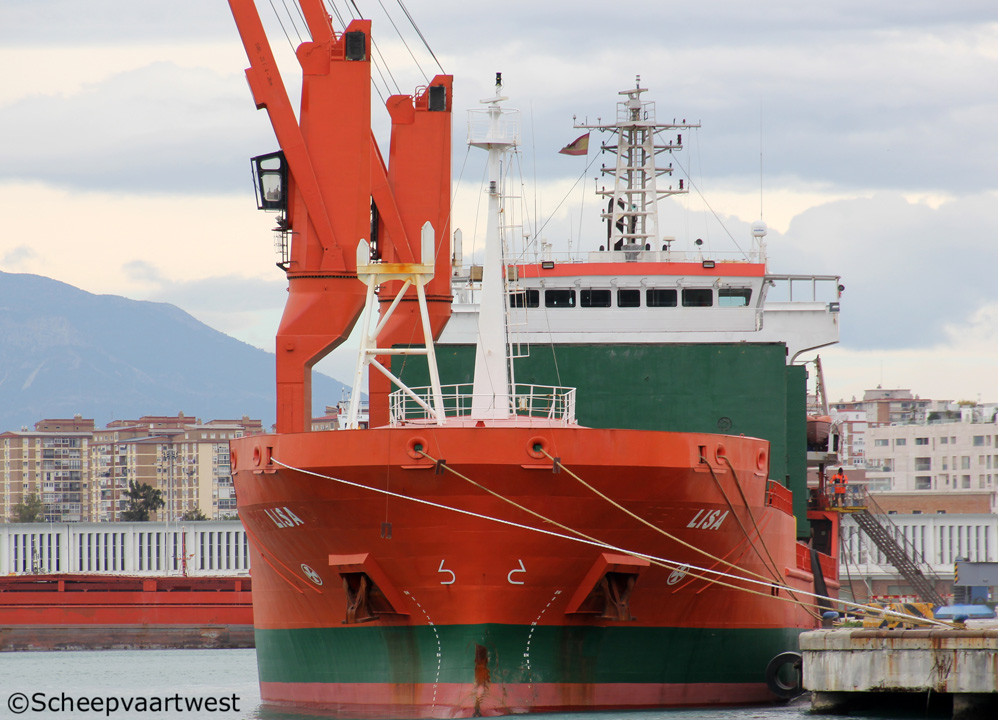

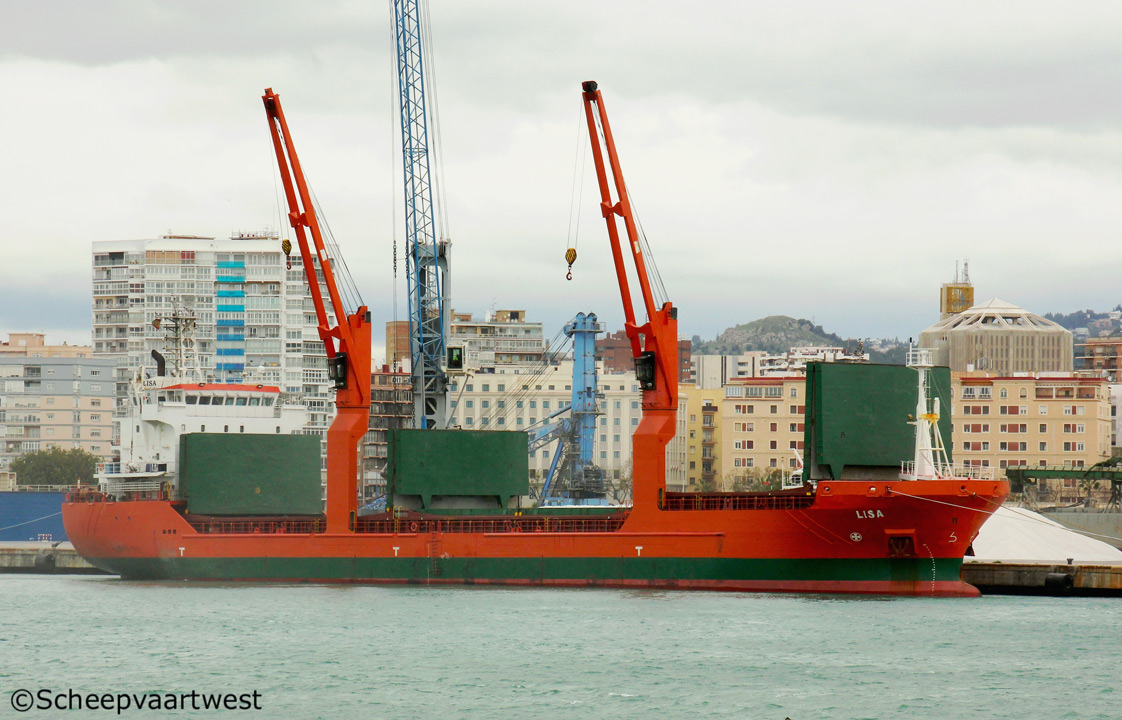

Malaga, Spain 23 March 2018

Name

LISA

Previous names

2006 - 05.2007 Esther C

05.2007 - 11.2012 Heather C

11.2012 - 01.2013 Heat

Type

General cargo ship

IMO-number

9384174

Call sign

PCTI

Flag

The Netherlands

Port of registry

Rotterdam

Previous flags

12.2006 - 01.2013 United Kingdom, Isle of Wight, Cowes - Call sign: MPJN9

GT

5.629 t

DWT

Summer: 8.013 t

Winter: 7.786 t

NT

2.877 t

Number of 20 ft containers

109

Number of 40 ft containers

24

Container capacity 14t

48

Length

108,21 m overall

104,11 m between perpendiculars

Breadth

18,20 m

Draught

Summer: 7,06 m

Air draft

Max.: 32,15 m

Depth

9,00 m moulded

Speed

Max: 12,4 knots

Built

2006

Keel laid

19.11.2004

Launch date

09.09.2006

Date of completion

28.11.2006

Builder

Jiangsu Yangzijiang Shipyard Co. Ltd.
Jiangyin
China

Yard number

YZJ2005-703C

Hull material

shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight Bulkheads

6

Continuous decks

1

Main engine

1x MaK 6M32C - 4 stroke 6 cylinder 320 x 480 mm combustion engine 2.999 kW at 600 rpm

Manufacturer: Caterpillar Motoren GmbH & Co. KG

Propellers

1x Controllable pitch propeller - aft at 225 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated
Max. allow. working pressure 8 bar
Heating Surface: 17,1 m²
Heating Surface: 63,9 m²

manufacturer: Alfa Laval Aalborg A/S boiler

Electric Installations

2x Plant 440 V - 456 kVA
1x Plant 440 V - 440 kVA
1x Plant 440 V - 331 kVA
2x Plants each 24 V - 24 Ah
2x Plants each 24 V - 65 Ah
2x Plants each 24 V - 80 Ah
2x Plants each 24 V - 100 Ah
2x Plants each 24 V - 160 Ah
2x Plants each 24 V - 200 Ah

Shaft generator

440 kVA

Generators

2x Main diesel generatorsets each 456 kVA

Emergency generator

1x Diesel generatorset 331 kVA

Batteries

2x Batteries for UPS navigation each 200 Ah
2x Batteries for UPS radio each 100 Ah
2x Batteries for start aux. engine each 80 Ah
2x Batteries for start emergency engine each 80 Ah
2x Batteries for start aux. engine each 80 Ah
2x Batteries for diesel control each 65 Ah
2x Batteries for automation each 24 Ah

Compressed air receivers

2x Receivers each 500 litres, 30,0 bar
1x Receiver 40 litres - 30,0 bar
1x Receiver 75 litres - 10,0 bar
1x Receiver 250 litres - 7,0 bar

Bow thruster

1x 255 kW

Number of cargo holds

3

Hold 1: 18,80 x 15,00 h= 11,00 m Narrowing
Hold 2: 29,00 x 15,00 h= 9,00 m box
Hold 3: 28,00 x 15,00 h= 9,00 m Narrowing after 17,00 m

Cargo hold capacity

Hold 1: 95.844 ft³
Hold 2: 137.837 ft³
Hold 3: 130.984 ft³
Total Grain capacity: 364.665 ft³

Number of hatches

Hatch 1: 17,50 x 15,20 m
Hatch 2: 25,90 x 15,20 m
Hatch 3: 25,90 x 15,20 m

Hatch tuep

Hydraulic Folding

Hold ventilation

6x Air-changes h

Tank capacities

Fuel IFO: 400 m³

Fuel GO: 60 m³

Fresh water: 80 m³

Ballast: 2.500 m³

Anchor equipment

3x Anchors weight each 3.300 kg
Chain length: 495.00 m

Cargo gear

2x MacGregor cranes starboard side mounted - SWL 25 t each

Crew size

15

Manager

Maritime Management Services B.V.
Ridderkerk
The Netherlands

Previous managers

12.2006 - 11.2012 Carisbrooke Shipping Ltd., Cowes, Isle of Wight - Great Britain

11.2012 - 01.2013 Stieglis Shipbrokers B.V., Harlingen - The Netherlands

01.2013 - 12/2015 Flinter Management B.V., Barendrecht - The Netherlands

Owner

Lisa Shipping B.V.
Barendrecht
The Netherlands

Previous names & owners

2006 - 05.2007 Esther C - Carisbrooke Shipping Ltd., Cowes, Isle of Wight - Great Britain

05.2007 - 11.2012 Heather C - Carisbrooke Shipping Ltd., Cowes, Isle of Wight - Great Britai

11.2012 - 01.2013 Heat - Carisbrooke Shipping Ltd., Cowes, Isle of Wight - Great Britai

01.2013 - 12.2015 Lisa - Lisa Shipping B.V., Barendrecht - The Netherlands

Renamed

11.04.2018 Masha D

Portugal, Madeira - Call sing: CQAF7

Latest data adjustment

20 June 2015
