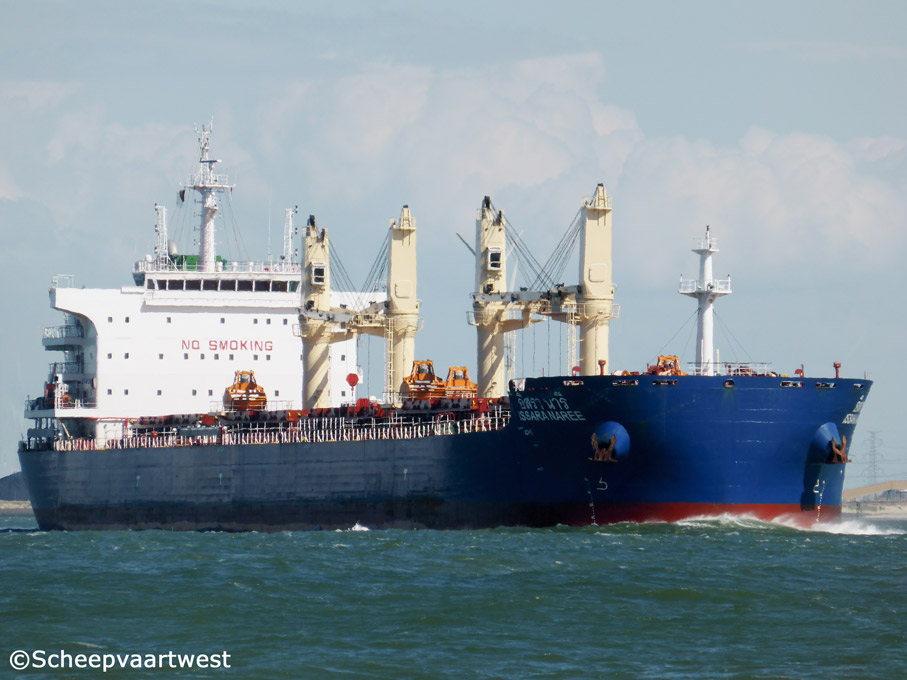

Issara Naree - IMO 9732187

Westerschelde 30 April 2015

Name

ISSARA NAREE

Type

Bulk carrier - Carriage of dangerous goods
Designed for the carriage of steel coil

IMO-number

9732187

Call sign

HSRP

Flag

Thailand

Port of registry

Bangkok

GT

36.298 t registered

DWT

Summer: 63.519,15 t

NT

21.607 t registered

Length

199,90 m overall

194,50 m between perpendiculars

Breadth

32,26 m moulded

Draught

13,30 m

Freeboard

5.226 mm

Depth

18,50 m moulded

Speed

14,4 knots

Built

2014

Keel laid

30.12.2013

Launch date

19.04.2014

Date of completion

16.07.2014

Builder

Sainty Yangzhou Shipbuilding Corporation Ltd.
Yangzhou
China

Yard number

SAM13009B

Hull material

High strength steel

Watertight bulkheads

11

Main engine

1x JAD-MAN-5S60ME-C8 - 5 cylinder 600 x 2.400 mm diesel engine 8.050 kW at 89,0 rpm

Manufacturer: Jiangsu Antai Power Machinery Co., Ltd.

Propellers

1x Propeller fixed pitch

Manufacturer: Zhenjiang Tongzhou Propeller Co., Ltd.

Boilers

1x Composite Boiler - 6,0 bar

Manufacturer: Greens Power Equipment (China) Ltd.

Generators

3x Main diesel generatorsets each 680 kW

Manufacturer: Zhenjiang China Xiandai Generating Co., Ltd.

Number of holds

5

Dimensions:

Hold 1: 19,68 x 18,26 m

Hold 2-5: 22,96 x 18,26 m

Total hold capacity

Grain / Bale: 78.702,60 m³

Number of hatches

5

Number of tanks

Ballast: 12

Fuel oil: 10

Lubricating oil: 9

Fresh water: 4

Diesel oil: 4

Sludge: 3

Chain: 2

Waste water: 1

Fixed ballast liquid: 1

Organic Compound: 1

Slop: 1

Tank capacities

Diesel Oil: 241,59 m³ / 205,35 t

Freshwater: 880,61 m³

Fuel Oil: 2.091,11 m³ / 2.049,28 t

Lube Oil: 180,58 m³ / 165,42 t

Tank Ballast: 17.709,08 m³ 18.151,80 t

Lifting equipment

1x Electric monorail provision crane - SWL 4,0 t

Manufacture: Zhenjiang Just Marine Equipment Co., Ltd.

1x Engine room crane - SWL 4,0 t

Manufacture: Jiangsu Bolin Machinery Manufacture Co., Ltd.

Cargo gear

4x Electro-hydraulic deck cranes - SWL 30,0t each

Manufacture: TTS Bohai Machinery Dalian Co., Ltd.

Manager

Great Circle Shipping
35 North Sathorn Road
Bangkok
Thailand

Operator

Precious Shipping Public Company Limited

Owner

Precious Rubies Limited
8/27 - 28 Cathay House, 7TH floor
North Sathorn Road
Silom, Bangrak
Bangkok
Thailand

Registered owner

Precious Rubies Limited

Latest data adjustment

01 June 2015
