Westerschelde 17 April 2015 |
|
Name |

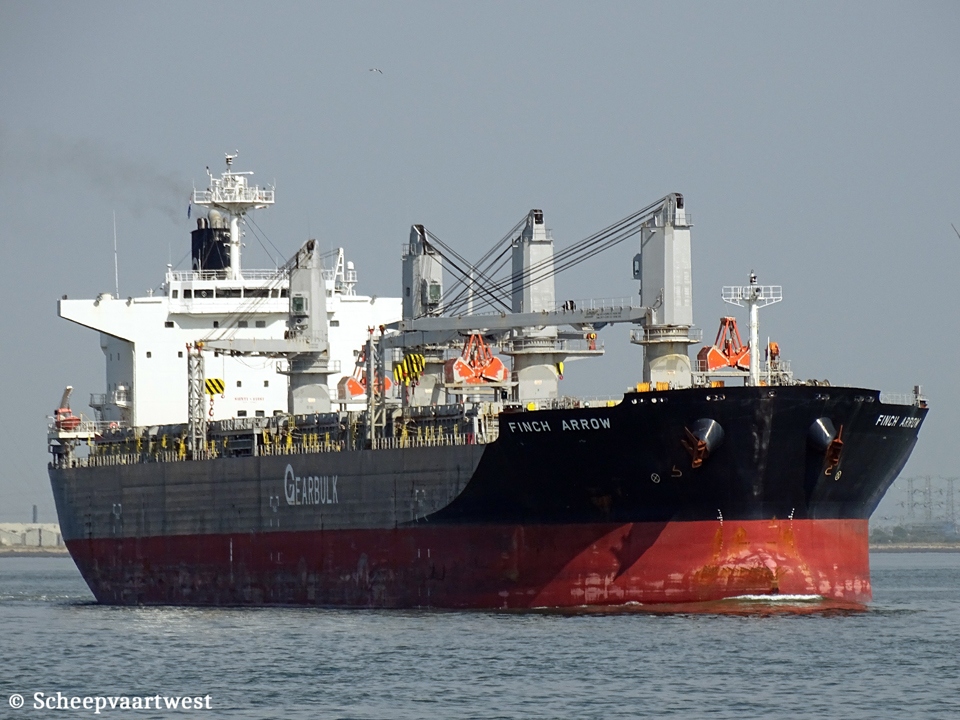

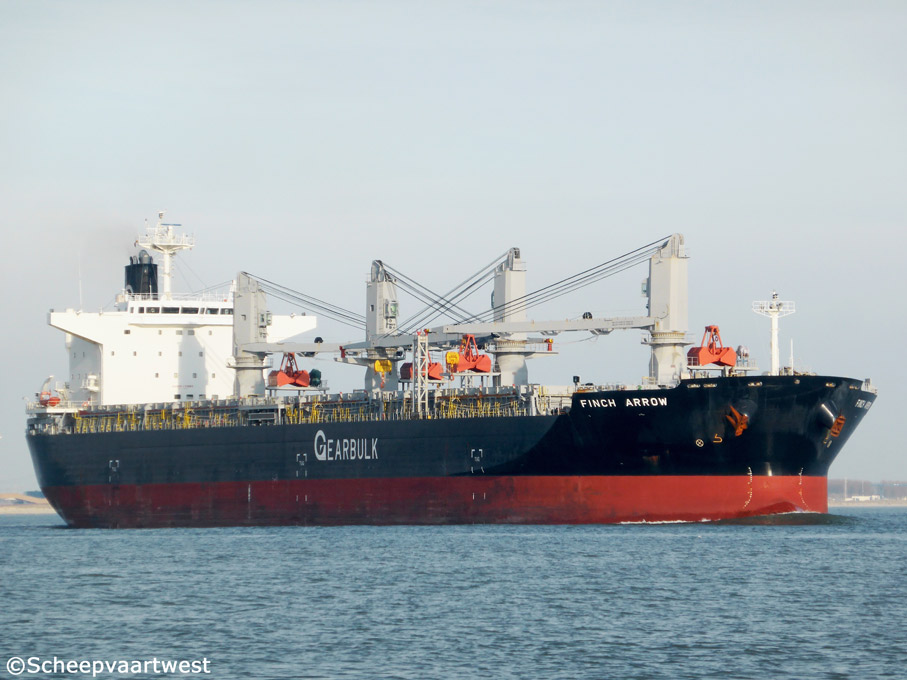

FINCH ARROW |
|
Type |
Open hatch jib crane general cargo carrier Strengthened for heavy cargo loading |
|
IMO-number |
9574860 |
|
Call sign |
3EYK5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
46.295 t registered |
|
DWT |
69,990 t |
|
NT |
21.990 t registered |
|
Length |
210,00 m overall |
|
Breadth |
36,00 m moulded |
|
Draught |
13,41 m |
|
Moulded Lx Bx D |
202,00 x 36,00 x 20,20 m³ |
|
Registered L x B x D |
203,11 x 36,00 x 20,20 m³ |
|
Freeboard |
6,862 mm |
|
Depth |
20,20 m moulded |
|
Speed |
Max.: 16,2 knots Service: 14,5 knots |
|
Built |
2013 |
|
Keel laid |
06.06.2012 |
|
Launch date |
07.12.2012 |
|
Date of completion |
27.03.2013 |
|
Builder |
Mitsui Engineering & Shipbuilding, Ltd. Chiba Shipyard |
|
Yard number |
1837 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W-Mitsui 5S60ME-C8 - 2 stroke single acting 5 cylinder 600 x 2.400 mm diesel engine - 9.450 kW at 89,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 570 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler- 7,0 bar Evaporation: 3,54 t/h Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
4x Generators - 3.894 kVA |
|
Number of holds |
8 Hold 1: 15,30 x 15,60 - 20,40 x 20,50 m Hold 2-7: 19,50 x 30,60 x 20,50 m Hold 8: 17,70 x 17,00-23,80 x 20,50 m |
|
Cargo hold capacity |
Bale & Grain: 87.462 m³ |
|
Tank capacities |
Fuel oil: 2.352 m³ Fresh water: 364 m³ Water ballast: 26.503 m³ |
|
Cargo gear |
4x Cranes - SWL 45 t each Grab Fitted: 4x each 15 m³ |
|
Crew |
30 |
|
Manager |
Seaquest Oriental Pte. Ltd. |
|
Operator |
Gearbulk |
|
Owner |
Doun Kisen |
|
Registered owner |
311 Rainbow Shipping S.A. |
|
Latest data adjustment |
09 May 2014 |
