Westerschelde 20 July 2012 |
 |
| Westerschelde 30/11/16 |
|
Name |

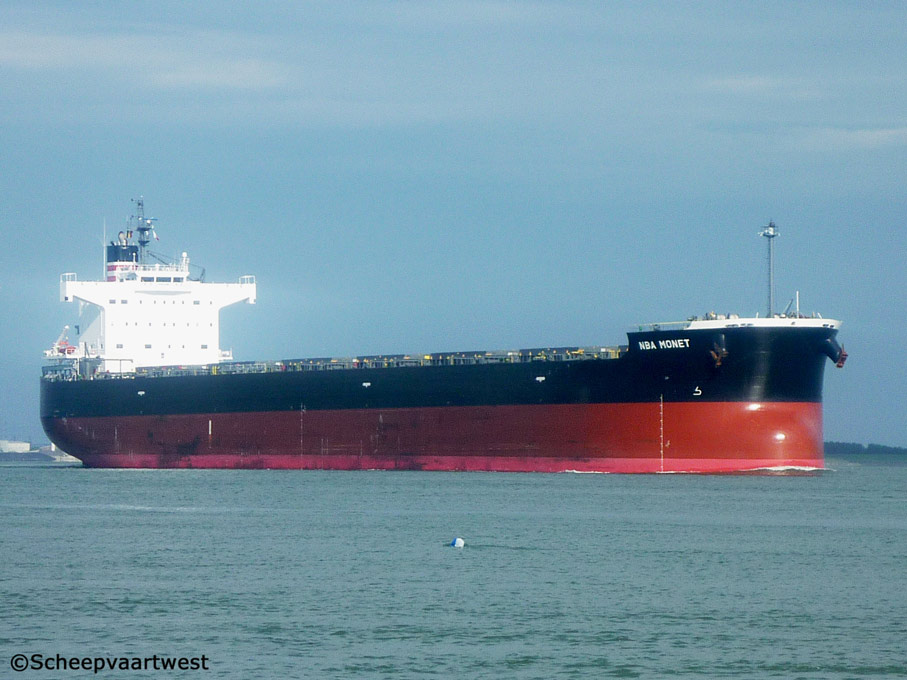

NBA MONET |
|
Type |
Bulk carrier - Strengthened for heavy cargo |
|
IMO-number |
9512305 |
|
Call sign |
9HA3008 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
43.013 t registered |
|
DWT |
Summer: 82.099 t |
|
NT |
27.239 t registered |
|
Length |
228,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,43 m |
|
Moulded L x B x D |
222,00 x 32,26 x 20,05 m |
|
Registered L x B x D |
222,54 x 32,26 x 20,05 m |
|
Freeboard |
5.675 mm |
|
Depth |
20,05 m moulded |
|
Speed |
15,7 knots |
|
Built |
2010 |
|
Keel laid |
15.12.2010 |
|
Launch date |
20.01.2012 |
|
Date of completion |
13.03.2012 |
|
Builder |
Tsuneishi Shipbuilding Co., Ltd. |
|
Yard number |
1470 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 6 cylinder 600 x 2.400 mm diesel engine 9.710 kW at 97,4 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 560 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 2,22 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators - 1.600 kVA |
|
Cargo hold capacity |
Grain: 97.381 m³ |
|
Tank capacities |
Fuel oil: 3.184 m³ fresh water: 468 m³ Water ballast: 22.060 m³ |
|
Manager |
NYK Shipmanagement Pte. Ltd. |
|
Owner |
NYK Bulkship Atlantic |
|
Registered owner |
NYK Bulkship (Atlantic) NV |
|
Latest data adjustment |
05 May 2015 |
