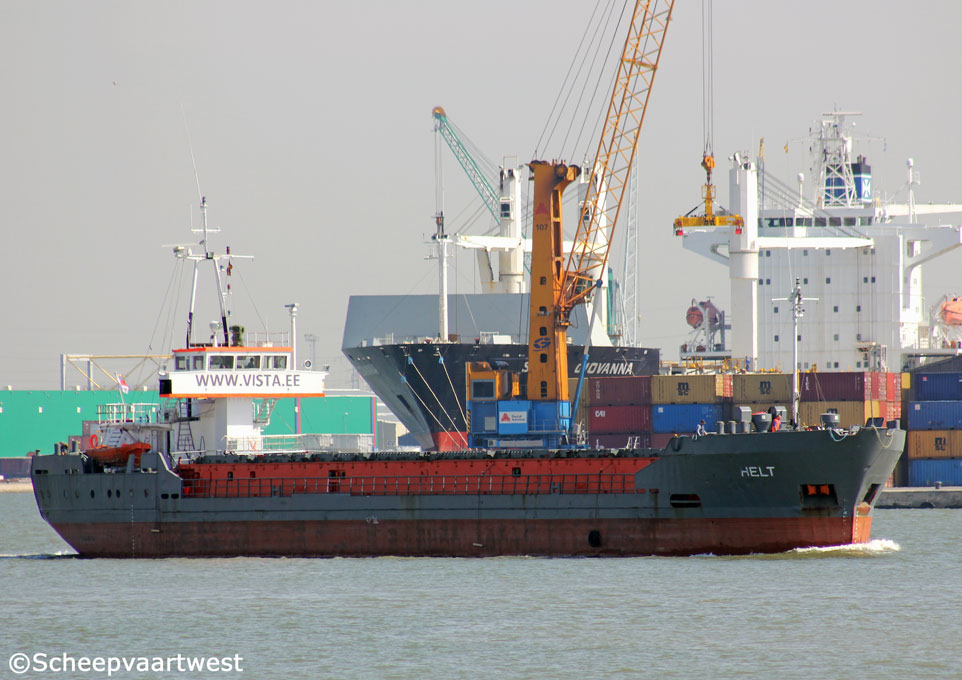

Helt 01

Antwerpen 14 April 2015



Name

HELT

Previous names

1985 - 01.1992 Hel

01.1992 - 03.2003 Hella

03.2003 - 05.2007 Beetpulp Trader

02.2007 - 2014 Carisma

Type

General cargo ship

IMO-number

8402589

Call sign

3FSB

Flag

Republic of Panama

Port of registry

Panama City

GT

1.473

DWT

Summer: 2.086 t

DWCC

Summer: 2.020 t

Winter: 1.940 t

NT

726 t

Containers

In hold: 48 TEU / 24 FEU

On deck: 32 TEU / 16 FEU

Length

79,02 m overall

74,80 m between perpendiculars

Breadth

10,90 m

Draught

3,97 m

Air draft

24,50 m

7,10 m masts + bridge lowered

Depth

4,49 m moulded

Speed

10,5 knots ballast

9,5 knots loaded

Built

1985

Date of completion

01.05.1995

Builder

J.H.Van Eijk & zonen Scheepsbouw B.V.
Sliedrecht

The Netherlands

Yard number

358

Hull material

Steel

Main engine

1x Deutz SBV 6M 628B - 6 cylinder 240 x 208 mm diesel engine 599 kW

Builder: Kloeckner Humboldt Deutz AG - West Germany

Propellers

1x 4 blades fixed propeller

Generators

1x Generator 128 kVA

1x Generator 80 kVA

1x Generator 49 kVA

Bow thruster

1x Jet 147 kW

Number of holds

1

Dimensions: 52,80 x 8,70 x 5,95 m

Hatches

Dimensions: 49,80 x 8,70 m

Cargo hold capacity

Grain: 2.387 m³ / 94.908 ft³

Bale: 2.685 m³ / 94.820 ft³

Max. permitted loads

Tank top: 12,5 t/m²

Hatch: 1,3 t/m²

Air changes

8/h basis empty holds

Tank capacities

Ballast water: 928 m³

MDO: 130 m³

Operator

Vista Shipping Agency AS

Lehiku tee 9-2
11912 Tallinn
Estonia

Owner

Marlowe Assets LP

Latest data adjustment

10 May 2015
