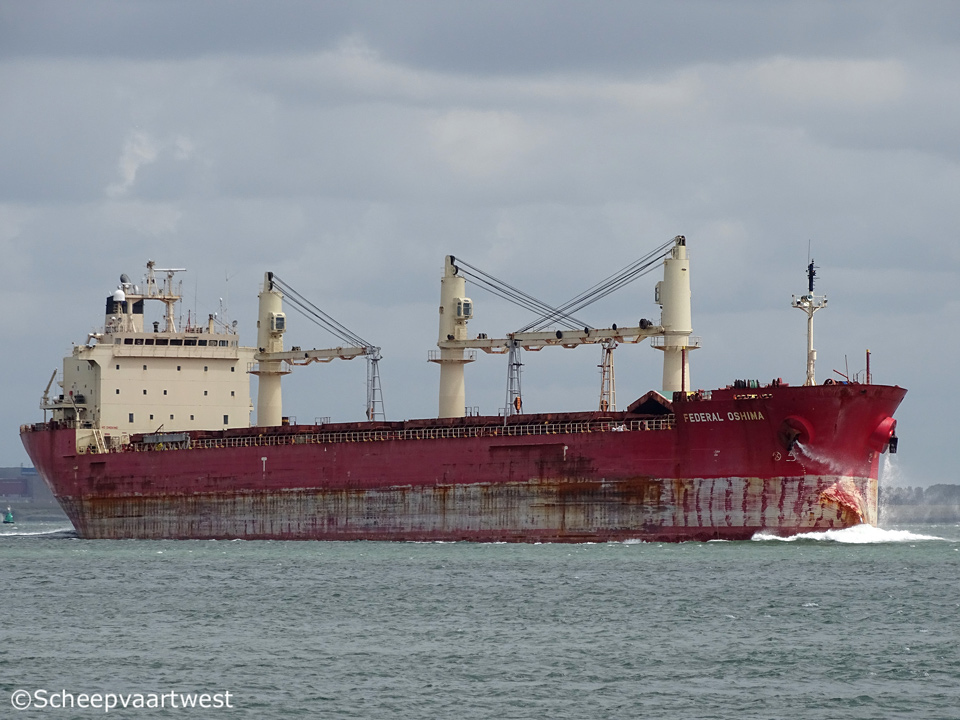

Westerschelde 12 July 2017 |
 |

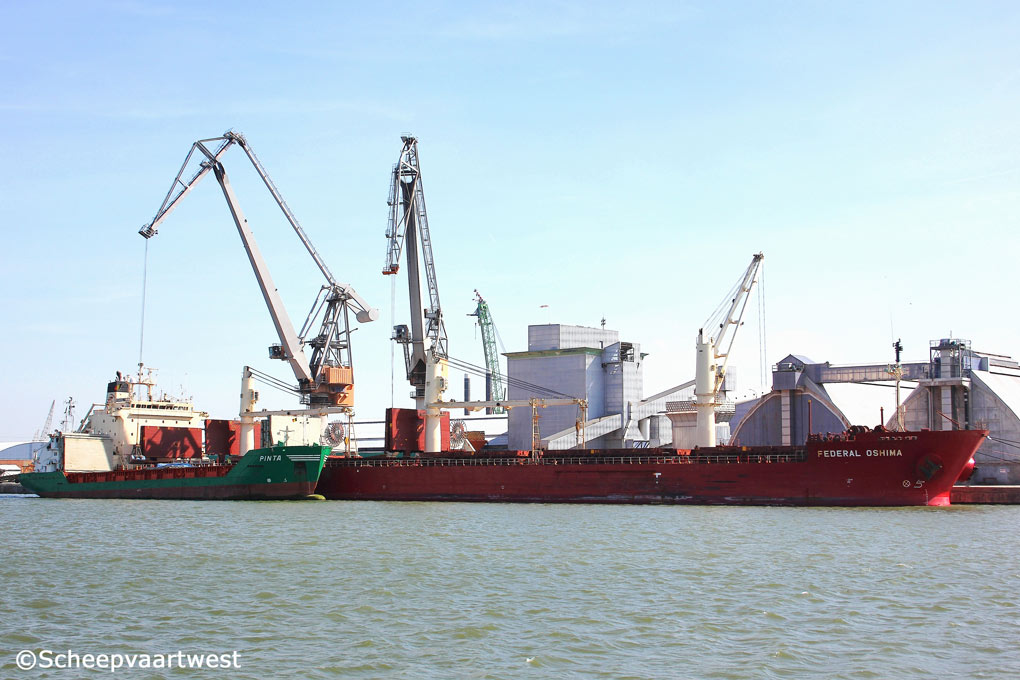

| Antwerpen 14/04/15 |
|
Name |
FEDERAL OSHIMA |
|
Type |
Handymax bulk carrier |
|
IMO-number |
9200330 |
|
Call sign |
V7RG2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flag |
Hong Kong - China |
|
GT |
20.659 t registered |
|
DWT |
Summer: 36.563 t Winter: 35.591 Tropical: 37.537 t |
|
NT |
12.019 t registered Suez: 18.932 t |
|
Length |
199,99 m overall 191,93 m between perpendiculars |
|
Breadth |
23,76 m extreme |
|
Draught |
10,75 m |
|
Depth |
14,85 m |
|
Speed |
14,0 knots |
|
Built |
1999 |
|
Keel laid |
29.03.1999 |
|
Launch date |
18.08.1999 |
|
Date of completion |
30.09.1999 |
|
Builder |
Oshima Shipbuilding Co., Ltd. |
|
Yard number |
10260 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 8 |
|
Number of decks |
1 |
|
Main engine |
1x MAN B&W 6S46MC-C diesel engine 7.883 kW / 10.719 hp Builder: Kawasaki Heavy Industries Ltd. |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite GCS-22ST Builder: Aalborg Industries A/S |
|
Shaft generator |
3x Daihatsu 5DK-20 diesel generatorsets Builder: Daihatsu Diesel Mfg. Co., Ltd. |
|
Emergency generator |
1x Deutz BF 6L 913 diesel generatorset |
|
Bow thruster |
1x 1.019 hp |
|
Number of holds |
6 Hold 1: 26,08 x 8,24 / 19,85 m - Strength 22,0 t/m² Hold 2: 26,98 x 19,85 / 19,85 m- Strength 20,5 t/m² Hold 3: 25,18 x 19,85 / 19,85 m- Strength 21,0 t/m² Hold 4: 21,58 x 19,85 / 19,85 m- Strength 24,5 t/m² Hold 5: 26,08 x 19,85 / 19,85 m- Strength 21,0 t/m² Hold 6: 26,06 x 19,85 / 9,90 m- Strength 22,0 t/m² |
|
Hold capacity |
Grain / Bale Hold 1: 7.109 m³/ 6.866 m³ Hold 2: 7.990 m³/ 7.663 m³ Hold 3: 7.499 m³/ 7.166 m³ Hold 4: 6.394 m³/ 6.089 m³ Hold 5: 7.759 m³/ 7.412 m³ Hold 6: 7.333 m³/ 7.093 m³ Total: 44.084 m³/ 42.289 m³ |
|
Hatchways |
1x Hatch with dimension 17,10 x 13,22 m |
|
Hatch cover |
Folding hydraulic |
|
Tank capacity |
IFO: 1.401 m³ MDO: 436 m³ Ballast capacity: 19.683,74 m³ |
|
Cargo gear |
3x Electro Hydraulic cranes - SWL 30,0 t each |
|
Manager |
Anglo Eastern Shipmanagement Ltd. |
|
Owner |
Fednav Group (Federal Commerce & Navigation Co. Ltd.) |
|
Registered owner |
Federal Oceans Limited |
|
Latest data adjustment |
13 May 2018 |
