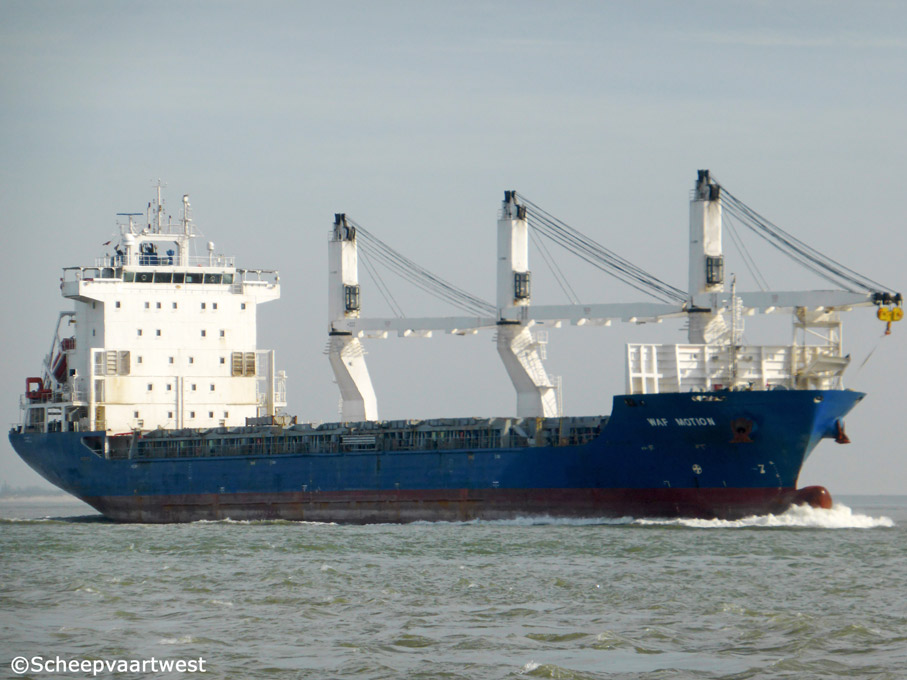

WAF Motion 01

Westerschelde 07 March 2015

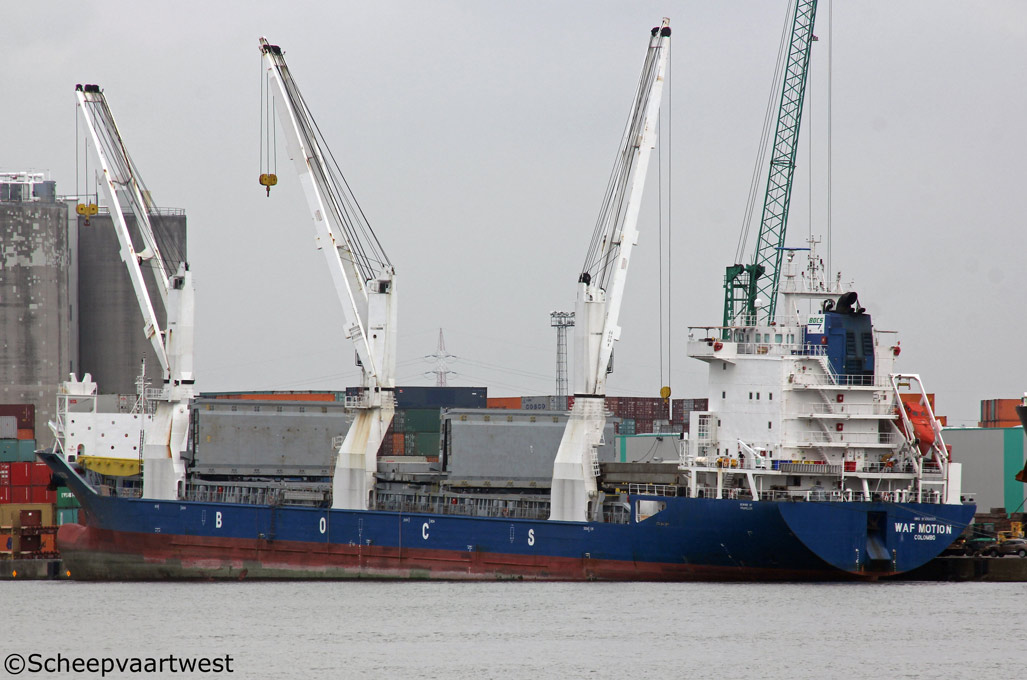

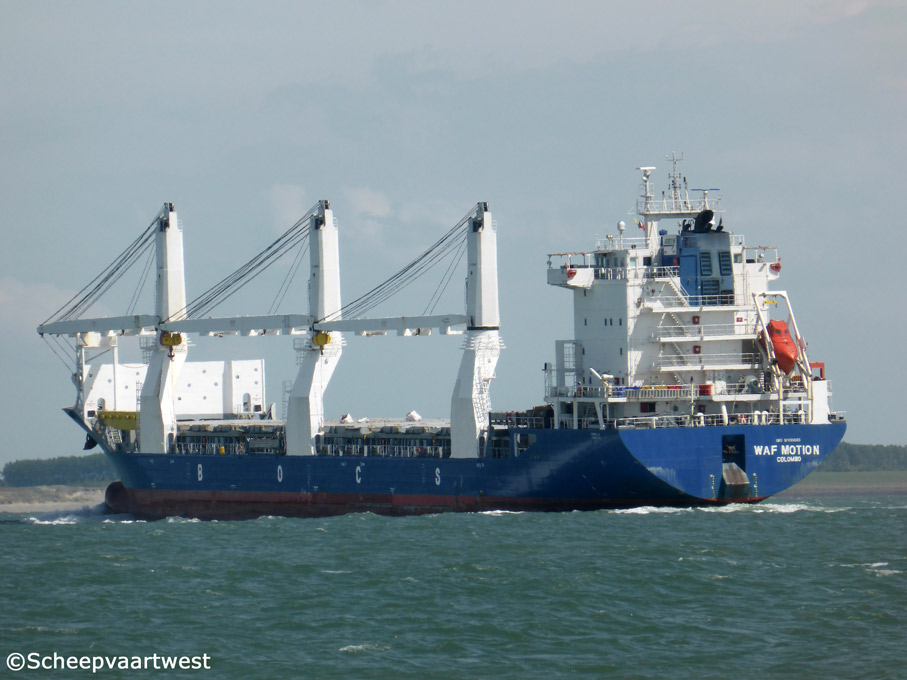

WAF Motion 02   Waf Motion 03
Westerschelde 30/05/15 Westerschelde 01/09/16



Name

WAF MOTION

Previous names

2010 built as: Senta Friederich

03.2010 - 03.2015: Sagmarine Limpopo - Owner: MS "Senta Friedrich" SGmbH & Co KG

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9500065

Call sign

4RBK

Flag

Ski Lanka

Port of registry

Colomo

GT

9.772 t

DWT

Summer: 12.337 t

NT

4.384 t

Number of 20ft containers

712

Length

139,99 m overall

133,72 m registered

Breadth

21,50 m registered

Draught

8,20 m

Forecastle

10,35 m

Poop

12,90 m

Depth

11,40 m moulded

Speed

16,4 knots

Built

2010

Keel laid

02.07.2008

Date of completion

16.03.2010

Builder

Tongfang Jiangxin Shipbuilding Co., Ltd.
Jiangxin Road, Hukou County
Jiujiang
People's Republic of China

Yard number

JX602

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x MAN-B&W/Hyundai 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm diesel engine - 7.860 kW / 10.690 hp at 129,0 rpm

Year of manufacture: 2008

Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division
1000 Bangeojinsunhwan-doro Dong-gu
Ulsan
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 129,0 rpm

Boilers

1x Steam boiler, oil fired - 7,0 bar

Heating surface: 22,6 m²

1x Steam boiler, exhaust gas heated - 7,0 bar

Heating surface: 260,0 m²

Electric installations

3x Plants each 450 V - 1.000 kVA

1x Plant 450 V - 122,5 kVA

2x Plants each 24 V - 200 Ah

2x Plants each 24 V - 300 Ah

1x Plant 24 V - 400 Ah

Generators

3x Main diesel generatorsets each 1.000 kVA / 800 kW

Emergency generator

1x Diesel generatorset 122,5 kVA

Batteries

1x Battery for UPS radio 400 Ah

2x Batteries for start emergency engine each 300 Ah

2x Batteries for automation each 200 Ah

Compressed air receivers

2x Receivers each 3.500 litres - 33,0 bar

1x Receiver 200 litres - 33,0 bar

1x Receiver 40 litres - 11,0 bar

1x Receiver 1.000 litres - 10,0 bar

Bow thruster

1x Transverse thruster 500 kW, forward

Cargo hold capacity

Grain: 15.900 m³

Anchor equipment

3x Anchors weight each 4.890 kg

Chain length: 550,00 m

Cargo gear

1x Crane - SWL 45,0 t

2x Cranes - SWL 80,0 t each

Crew size

25

Manager

Reederei Eugen Friederich GmbH & Co. KG
Anne-Conway-Str. 2
28359 Bremen
Federal Republic of Germany

Registered owner

MS "SENTA FRIEDERICH" Schifffahrtsgesellschaft mbH & Co. KG
clo Reederei Eugen Friederich Anne-Conway-Str. 2
28359 Bremen
Federal Republic of Germany

Latest data adjustment

29 April 2015
