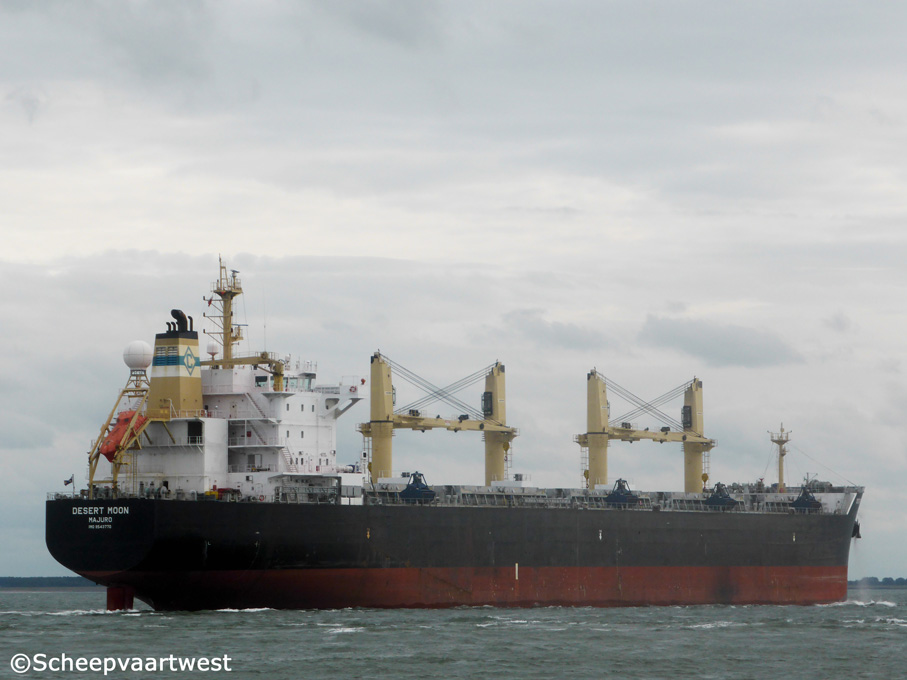

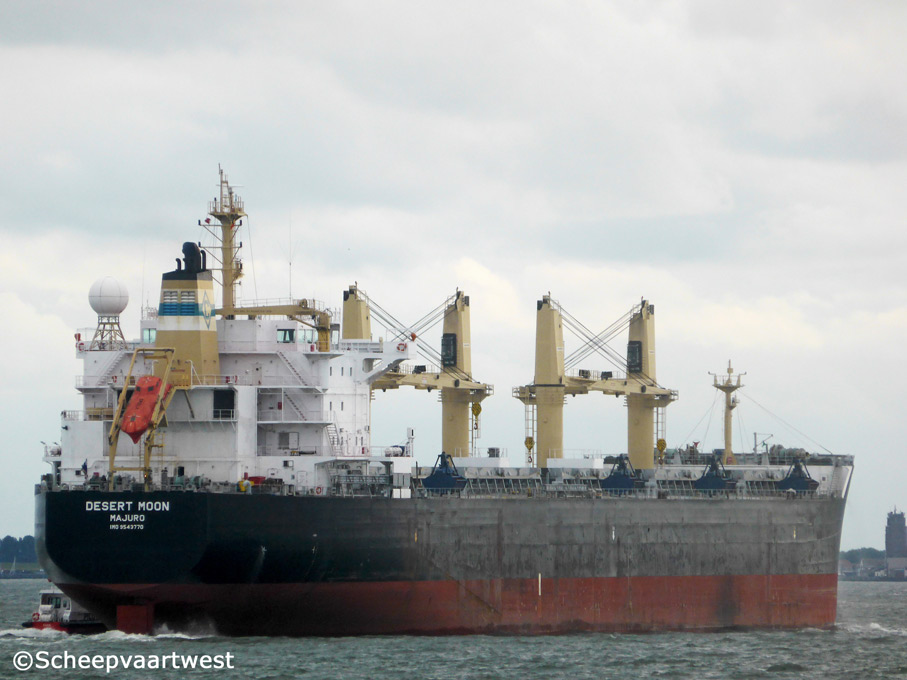

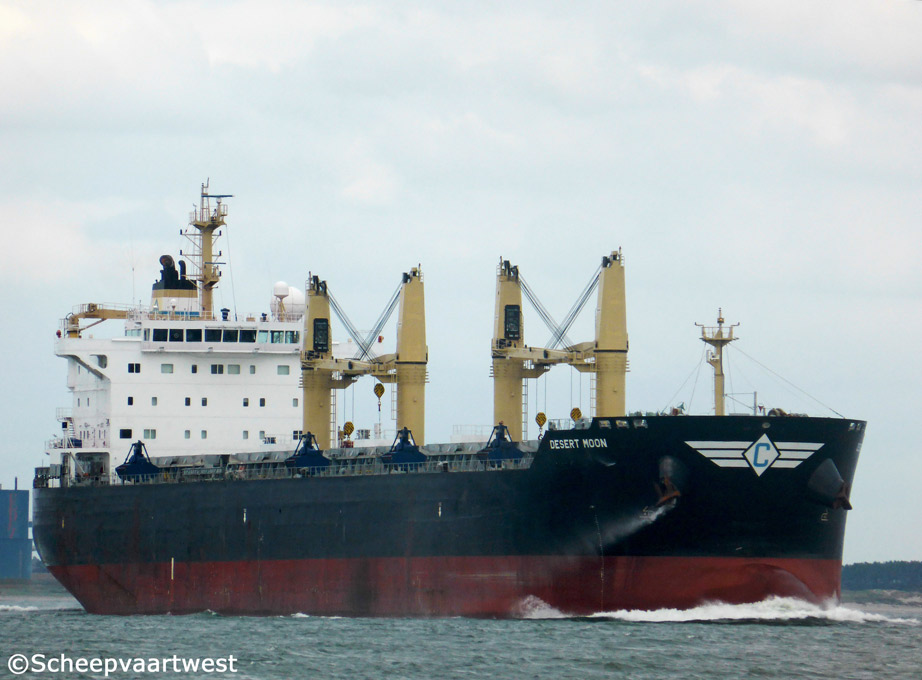

Desert Moon - IMO 9543770

Westerschelde 05 July 2014

Name

DESERT MOON

Type

Bulk carrier

IMO-number

9543770

Call sign

V7XW2

Flag

Marshall Islands

Port of registry

Majuro

GT

33.631 t registered

Suez: 34.886,28 t

DWT

Summer: 57.467 t

NT

19.329 t registered

Suez: 31.088,7 t

panama: 27.870,02 t

Length

193,07 m overall

185,00 m between perpendiculars

Breadth

32,26 m moulded

Draught

12,10 m

Freeboard

5.523 mm

Depth

18,50 m moulded

Speed

14,5 knots

Built

2012

Keel laid

31.10.2011

Launch date

23.12.2011

Date of completion

17.02.2012

Builder

Hyundai Mipo Dockyard Co. Ltd.
Ulsan
South Korea

Yard number

6034

Hull material

Ordinary strength steel

High strength steel

Watertight bulkheads

8

Main engine

1x MAN B&W/Hyundai 7S50MC-C8 - 7 cylinder 500 x 2.000 mm diesel engine 9.750 kW at 121,8 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Composite boiler

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

3x Diesel generatorsets each 650 kW

Manufacturer: HHI Electro Electric System

Number of holds

5

Cargo hold capacity

72.868,6 m

Number of hatches

5

Number of tanks

Fuel oil: 12

Ballast: 12

Lubricating oil: 8

Diesel oil: 3

Chain: 2

Sludge: 2

Fresh water: 2

Fixed ballast liquid: 1

Waste water: 1

Tank capacities 100%

Cargo Ballast: 14.434 m³

Diesel Oil: 157,1 m³ / 141,39 t

Freshwater: 389,8 m³

Fuel Oil: 1.976,2 m³ / 1.956,28 t

Lube Oil: 110,8 m³ / 99,72 t

Tank Ballast: 15.665,1 m³

Cargo gear

4x MacGREGOR deck cranes - SWL 30,0 t each

Manufacture: National Oilwell Varco Korea Co., Ltd.

Manager

Atlantic Bulk Carriers Management
41, Akti Miaouli
Piraeus,
Greece

Operator

Atlantic Bulk Carriers Management Ltd.

Trust Company Complex

Ajeltake Road

Ajeltake Island

Majuro

Marshall Islands

Registered owner

Seville Shipping And Investment Limited

Latest data adjustment

04 April 2015
