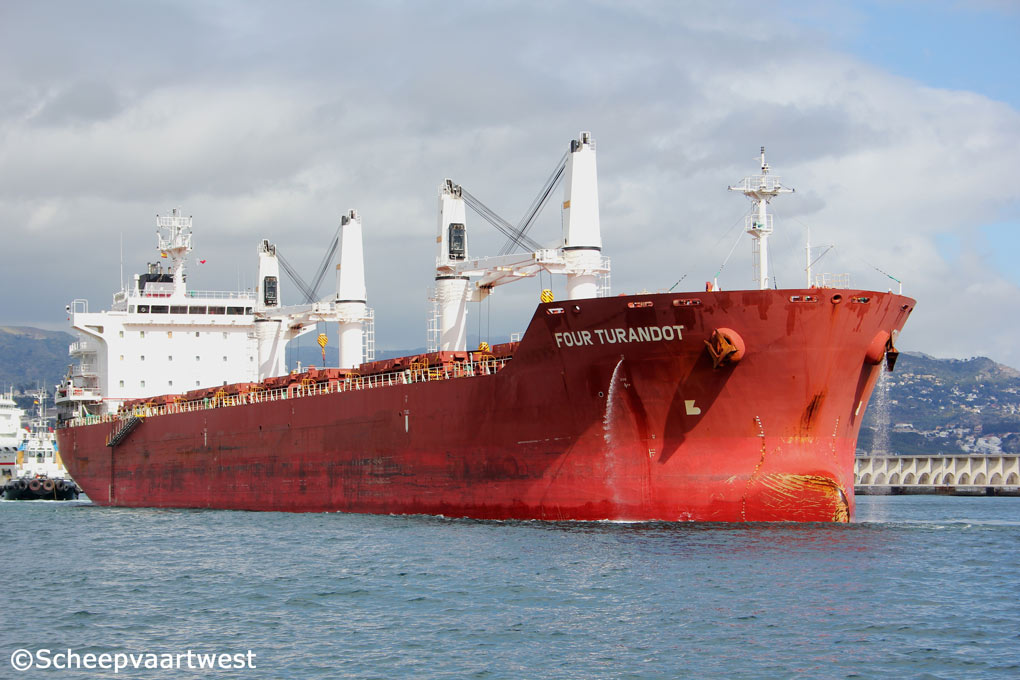

Four Turandot 01

Malaga, Spain 21 February 2015

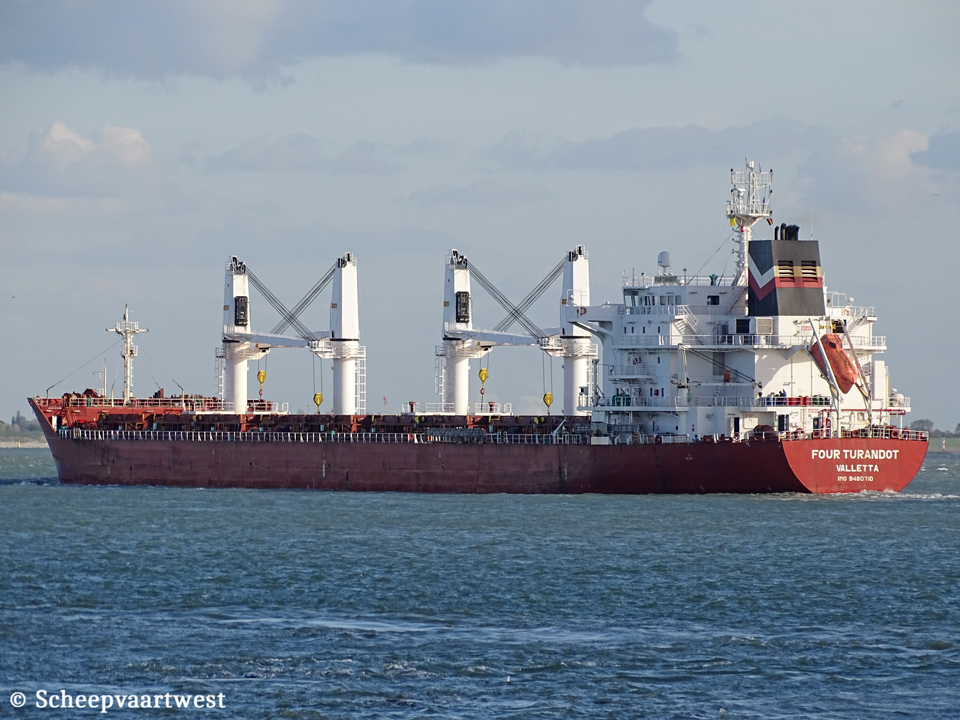

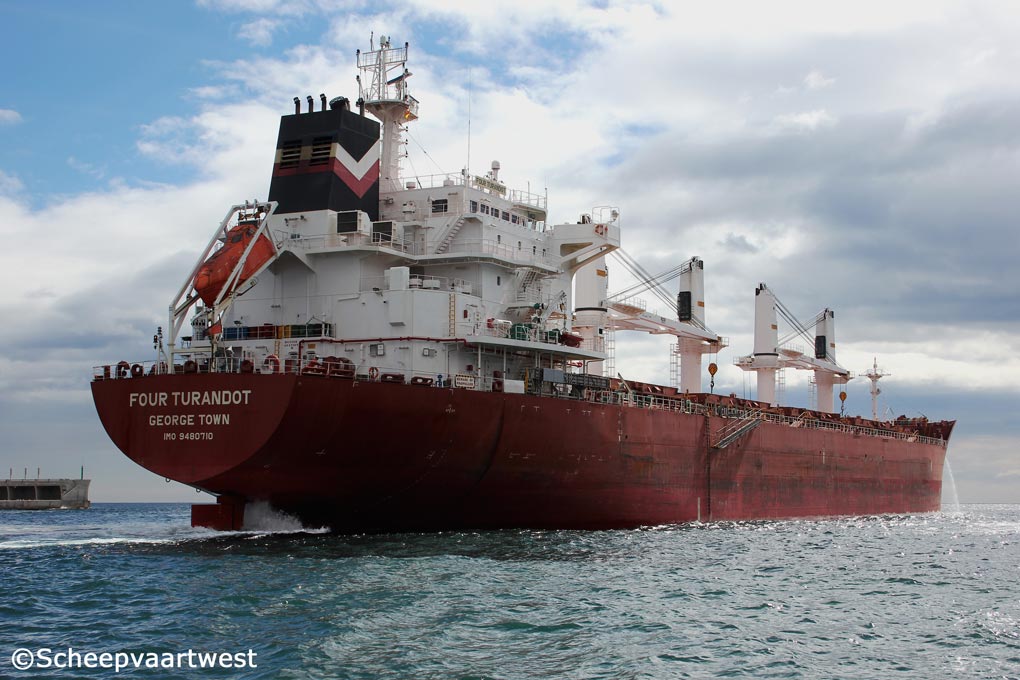

Four Turandot 02   Four Turandot IMO 9480710 03
Malaga, Spain 21/02/15 Westerschelde 2/10/19



Name

FOUR TURANDOT

Type

Bulk carrier - Strengthened for the carriage of heavy cargoes

IMO-number

9480710

Call sign

9HA4679

Flag

Malta

Port of registry

Valletta

Previous flag

2012 - 2017 Cayman Islands, George Town - Call sign: ZGCF7

GT

23.456 t registered

Suez: 24.325,46 t

DWT

Summer: 34.428 t

NT

11.522 t registered

Panama: 19.536 t

Suez: 20.889,65 t

Length

180,00 m overall

172,00 m between perpendiculars

Breadth

30,00 m

Draugth

9,90 m

Keel to mast end

42,84 m

Freeboard

4.825 mm

Depth

14,70 m moulded

Built

2012

Keel laid

30/12/2011

Launch date

10/05/2012

Delivery date

20/04/2012

Builder

SPP Shipbuilding Tongyoung Shipyard Co., Ltd.

537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si, Gyeongsangnam-Donam Do, 664-942

South Korea

Yard number

H4047

Hull material

High strength steel

Ordinary strength steel

Bulkheads

Water tight: 3

Oil tight: 4

Main engine

1x Doosan/MAN-B&W 5S50MC-C - 2 stroke 5 cylinder 500 x 2.000 mm combustion engine 7.900 kW at 127,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Sil La MEtal Co.

Boilers

1x Fired exhaust gas boiler - 9,0 bar

Manufacturer: SPP Machine Tech.

Generators

3x Diesel generatorsets each 600 kW

Manufacturer: Taiyo Electric Co., Ltd.

Number of holds

5

Cargo hold capacity

Grain: 48.620,3 m³

Bale: 46.815 m³

Number of hatches

5

Number of tanks

Ballast: 22

Fuel oil: 10

Lubricating oil: 8

Fresh water: 4

Diesel oil: 4

Sludge: 2

Waste water: 2

Chain: 2

Slop: 2

Tank capacities

Diesel Oil: 197,9 m³

Freshwater: 338,7 m³

Lube Oil: 119,6 m³

Tank Ballast: 13.140,8 m³

Lifting equipment

1x Electric provision crane - SWL 3,0 t

1x Engine room crane - SWL 2,5 t

Manufacture: SPP Machine Tech.

Cargo gear

4x MacGregor deck cranes - SWL 35,0 t each

Manufacture: SPP Machine Tech.

Commerical manager

Premuda S.P.A.

Via Fieschi 3/22

16121 Genoa GE

Italy

ISM manager

Columbia Shipmanagement

20-03, Suntec Tower Two, 9, Temasek Boulevard,

Singapore 038989

Republic of Singapore

Registered owner

Sasano Kisen/Ask Maritime

Care of Premuda SpA

Via Fieschi 3/22

16121 Genoa GE

Italy

Latest data adjustment

22 May 2022
