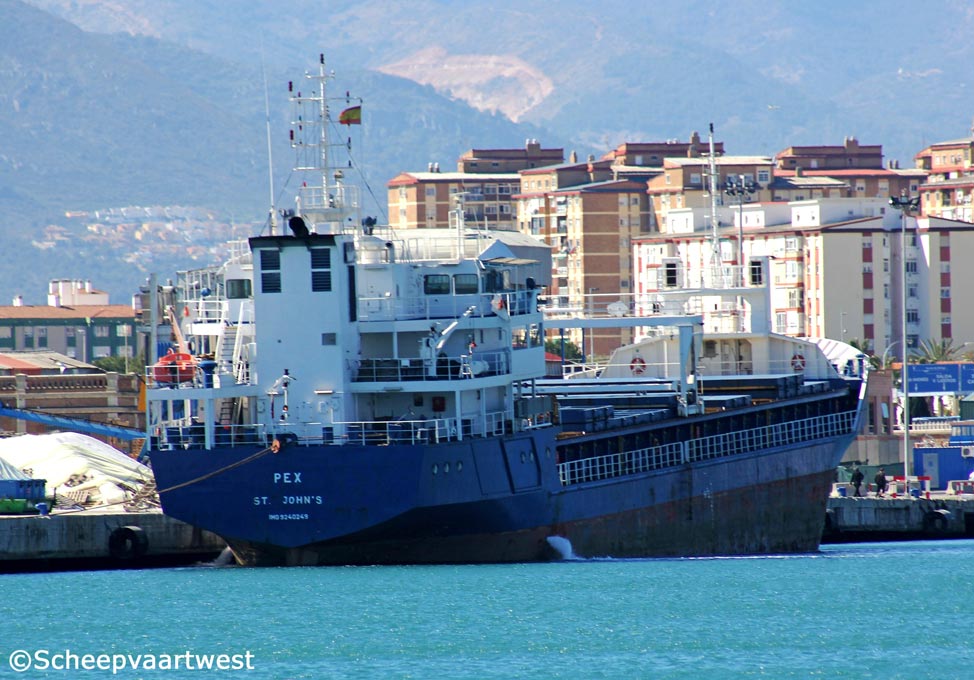

Malaga - Spain 24 February 2015 |
|
Name |
PEX |
|
Type |
General cargo ship Equipped for carriage of containers - Strengthened for heavy cargo Boxshaped seagoing multi purpose ship |
|
IMO-number |
9240249 |
|
Call sign |
V2OS6 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.981 t |
|
DWT |
Summer: 4.267 t |
|
NT |
1.505 t |
|
Number of 20ft containers |
In hold: 114 |
|
Length |
60,33 m overall 84,93 m registered |
|
Breadth |
15,20 m registered |
|
Draught |
5,64 m |
|
Forecastle |
7,03 m |
|
Poop |
15,11 m |
|
Speed |
12,0 knots |
|
Built |
2001 |
|
Keel laid |
10/05/1998 |
|
Launch date |
12/11/2000 |
|
Date of completion |
01/2001 |
|
Builder |
Rousse Industry A.D. 5, Matei Stoikov Street 7000 Ruse Bulgaria |
|
Yard number |
347 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.400 kW at 750 rpm Reduced power: 1.200 kW Year of manufacture: 2000 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 185 rpm |
|
Boilers |
1x Water heater, oil fired - 5,0 bar Year of manufacture: 1999 |
|
Electric installations |
2x Plants 380/220 V - 276 kVA 1x Plant 380 V - 584 kVA 1x Plant 380 V - 92 kVA |
|
Shaft generator |
1x 584 kVA |
|
Generators |
2x Main diesel generatorset each 276 kVA |
|
Emergency generator |
1x Diesel generatorset 92 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 220 kW, forward |
|
Number of holds |
1 |
|
Hold capacity |
195.000 ft³ |
|
Hold ventilation |
6 times/h |
|
Number of hatches |
2 Hatch 1: 26,40 x 12,90 x 8,10 m Hatch 2: 25,20 x 12,90 x 8,10 m |
|
Hatch type |
2x steel bulkheads hatch covers are pontoon type consisting of 10 panels operated by gantry crane |
|
Deck strength |
Tanktop: 12,0 t/m² |
|
Tank capacity |
Fuel oil: 253 m³ Water ballast: 1.626 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain Length: 440,00 m |
|
Manager |
Wessels Reederei GmbH & Co. KG Industriestr. 12-14 49733 Haren/Ems Federal Republic of Germany |
|
Registered owner |
Novum GmbH & Co. KG Industriestr. 12-14 49733 Haren/Ems Federal Republic of Germany |
|
Renamed |
06/2020 Rix Zenith Cyprus, Limassol - Call sign: 5BMV5 Owner: Coalmar Shipping Ltd. - Cyprus |
|
Latest data adjustment |
24 July 2020 |
