Antwerpen 17 January 2015 |
|
Name |

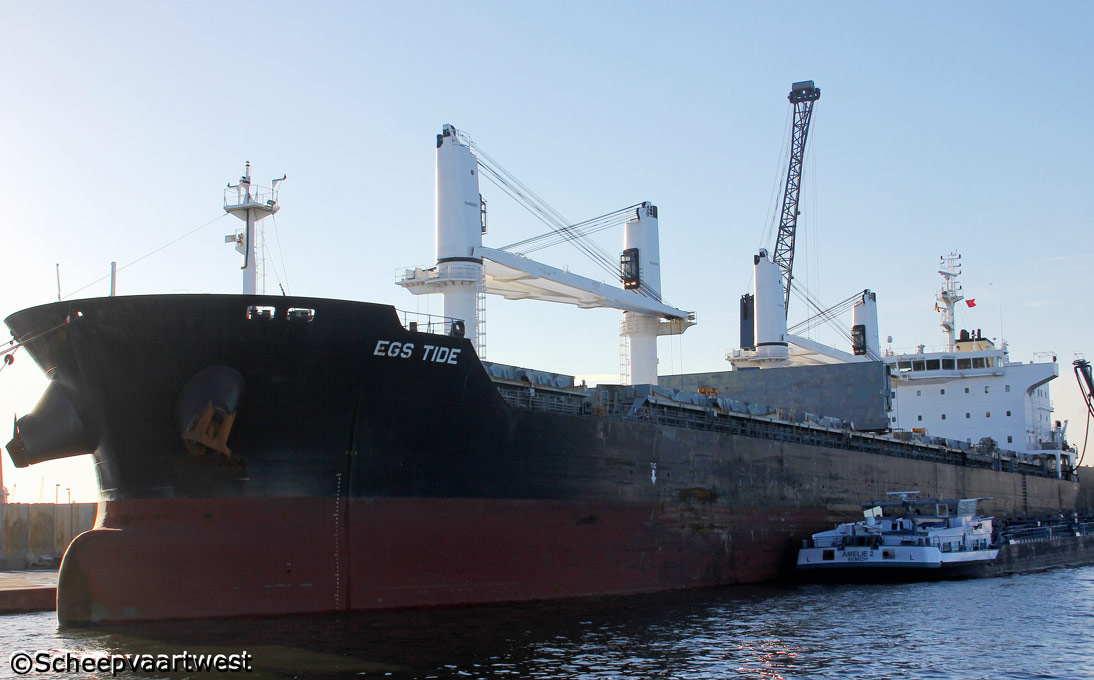

EGS TIDE |
|
Type |
Handysize bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9576739 |
|
Call sign |
V7UQ5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.054 t registered Suez: 23.892,95 t |
|
DWT |
Summer: 35.916 t |
|
NT |
11.349 t registered Panama: 19.429,56 t Suez: 21.163,22 t |
|
Number of 20ft containers |
737 |
|
Length |
178,20 m overall 171,00 m between perpendiculars |
|
Breadth |
27,80 m moulded |
|
Draught |
10,90 m extreme |
|
Freeboard |
4.724 mm |
|
Depth |
15,60 m moulded |
|
Built |
2011 |
|
Keel laid |
25.08.2010 |
|
Launch date |
26.10.2010 |
|
Date of completion |
06.01.2011 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. |
|
Yard number |
6044 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
11 |
|
Main engine |
1x Hyundai/MAN B&W 6S46MC-C8 - 6 cylinder 460 x 1.932 mm diesel engine - 7.860 kW / 10.686 hp at 129,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1 Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Composite Boiler - 9,0 bar Manufacturer: Aalborg Industries Ltd. |
|
Generators |
3x Main diesel generatorsets each 850 kW Manufacturer: HHI Electro Electric System |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 43.278,2 m³ Grain: 44.206,6 m³ |
|
Number of tanks |
Ballast: 12 Fuel oil: 9 Lubricating oil: 8 Diesel oil: 5 Chain: 2 Sludge: 2 Fresh water: 2 Fixed ballast liquid: 1 Waste water: 1 |
|
Tank capacities |
Diesel Oil: 325,1 m³ / 292,59 t Freshwater: 194,6 m³ Fuel Oil: 1.590,1 m³ / 1.574,19 t Lube Oil: 111,9 m³ / 100,71 t Tank Ballast: 14.388,1 m³ / 14.747,80 t |
|
Cargo gear |
4x Deck cranes - SWL 35,5 t each Manufacture: National Oilwell Varco Korea Co., Ltd. |
|
Manager |
Wallem Shipmanagement limited 979 King's Road, Island East Hong Kong |
|
Owner |
LSH Shipmanagement |
|
Registered owner |
East Gulf Shipholding Inc. |
|
Latest data adjustment |
06 March 2015 |
