Westerschelde 24 July 2014 |
|
Name |

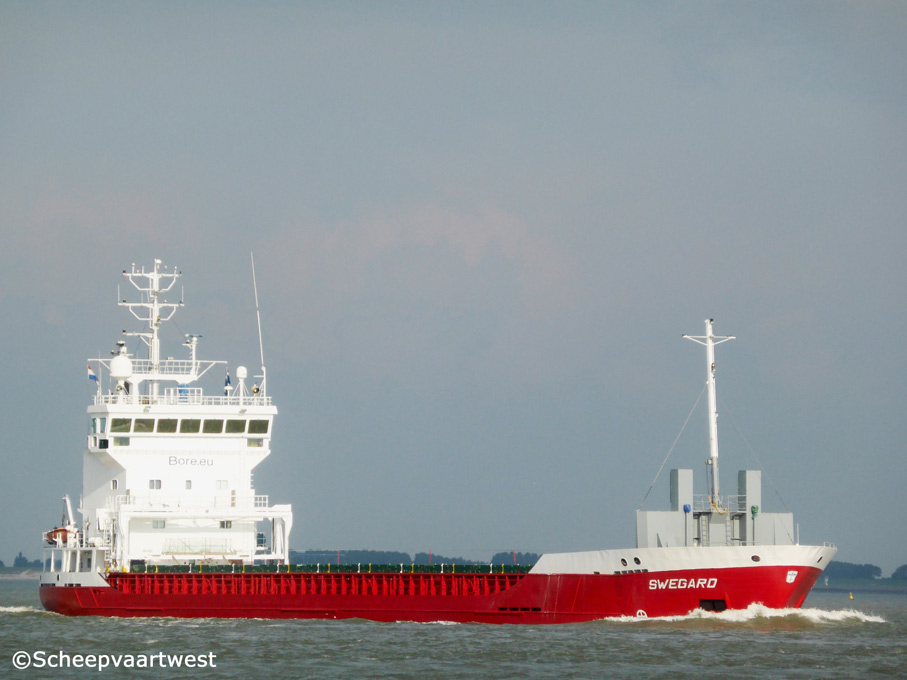

SWEGARD |
|
Previous names |
2001 - 10.1007 Merwedelta - The Netherlands, Werkendam |
|
Type |
General cargo ship - heavy cargo - Equipped for carriage of containers Singedecker |
|
IMO-number |
9195901 |
|
Call sign |
OJNF |
|
Flag |
Finland |
|
Port of registry |
Helsinki |
|
GT |
2.997 t |
|
DWT |
Summer: 4.956 t |
|
NT |
1.707 t |
|
Number of 20ft containers |
In hold: 120 On hatch: 104 Total: 224 |
|
Length |
94,96 m overall 90,05 m between perpendiculars |
|
Breadth |
13,17 m |
|
Draught |
6,18 m |
|
Air draft |
24,80 m |
|
Depth to maindeck |
7,15 m moulded |
|
Speed |
11,5 knots |
|
Built |
2001 |
|
Launch date |
2001 |
|
Date of completion |
07.04.2001 |
|
Builder casco |
Damen Shipyards Galati (Santierul Naval Damen Galati S.A.), Yard number: 963 |
|
Builder completion |
Damen Shipyard Hoogezand Foxhol The Netherlands Yard number: 756 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm diesel engine - 2.400 kW / 3.261 hp at 750 rpm Built: 2001 Builder: M.A.K. Caterpillar, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Electric installations |
Power Voltage: 400 Volt Lighting Voltage: 220 Volt Frequency: 50 Hz |
|
Shaft generator |
1x 565 kVA - 452 kW |
|
Generators |
2x Caterpillar main diesel generatorsets each 181 kVA - 145 kW - 213 hp |
|
Emergency generator |
1x Caterpillar diesel generatorset 77 kVA - 62 kW - 95 hp |
|
Bow thruster |
1x Fixed pitch propeller type fishtail - Output 300 kW |
|
Number of holds |
1 Dimensions: 67,54 x 11,00 x 8,45 m |
|
Hold capacity |
Grain: 6.180 m³ / 218.245 ft³ |
|
Weather deck hatch covers |
Steel pontoon hatches with 1 gantry crane Dimensions: 67,54 x 11,00 m |
|
Hold ventilation |
Electrical driven: 6 air-changes hour |
|
Tank capacities |
Fuel oil IFO: 327,02 m³ Marine gas oil MGO: 36,75 m³ Potable water: 44,63 m³ Water ballast: 1.586,52 m³ |
|
Cargo gear |
Gearless |
|
Accommodation |
For Captain and Crew of a total 10 persons with heating, ventilation and air-conditioning |
|
Manager |
Bore Ltd. |
|
Previous managers |
04.2001 - 11.2007 Rederij Chr. Kornet & Zonen B.V., Werkendam - The Netherlands 11.2007 - 01.2011 Rettig Group Ltd. Bore, Turku - Finland 01.2011 - 10.2014 Bore Ltd., Helsinki - Finland |
|
Owner |
Bore Ltd. |
|
Previous names & Owners |
04.2001 - 11.2007 Merwedelta - Scheepvaartonderneming Merwedelta C.V., Werkendam - The Netherlands 11.2007 - 01.2011 Swegard - Rettig Group Ltd. Bore, Turku - Finland 01.2011 - 10.2014 Swegars - Bore Ltd., Helsinki - Finland |
|
Renamed |
21.10.2014 Elena - Antigua & Barbuda, St.John's - Call sing: V2GP8 Owner: Hermann Lohmann Schifffahrt G.m.b.H. & Co. KG, Haren/Ems - Germany Manager: Lohmann Bereederungen G.m.b.H. & Co. K.G., Haren/Ems - Germany |
|
Latest data adjustment |
07 February 2015 |
