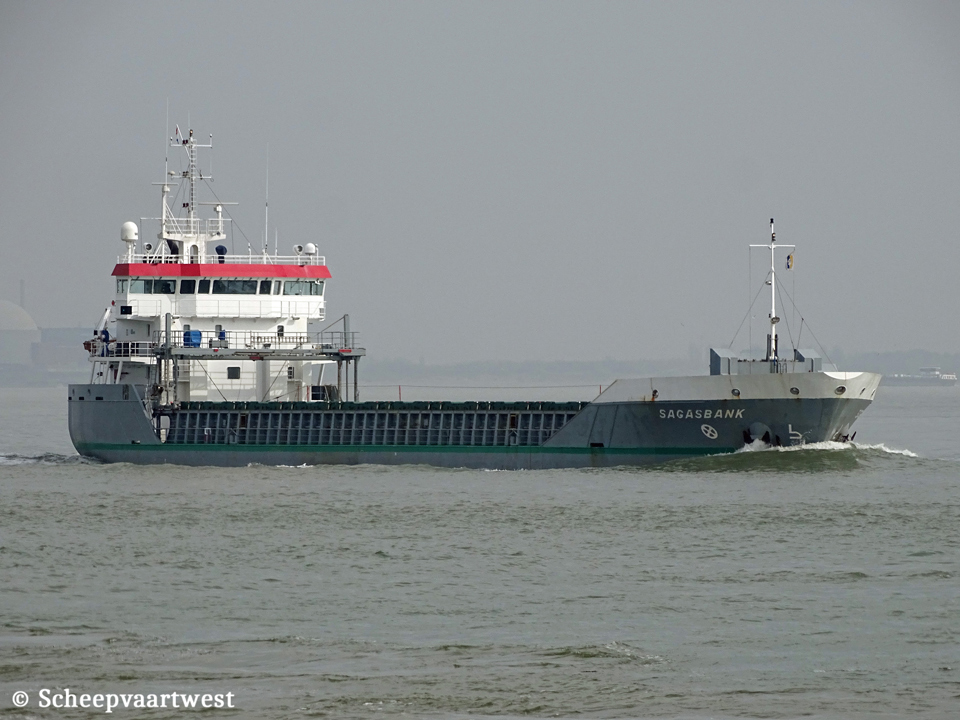

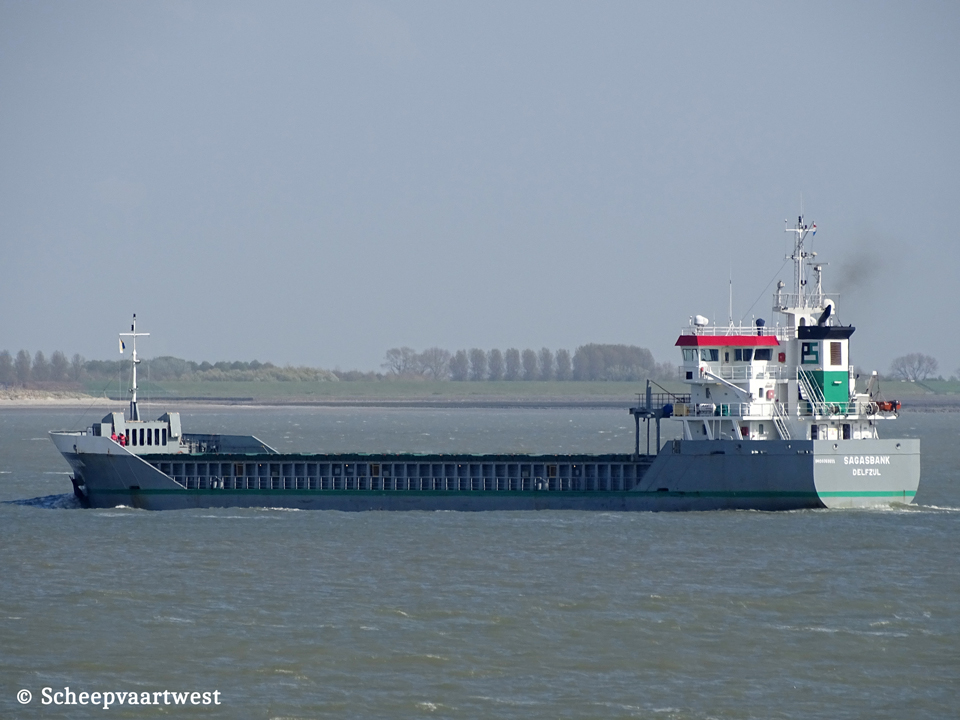

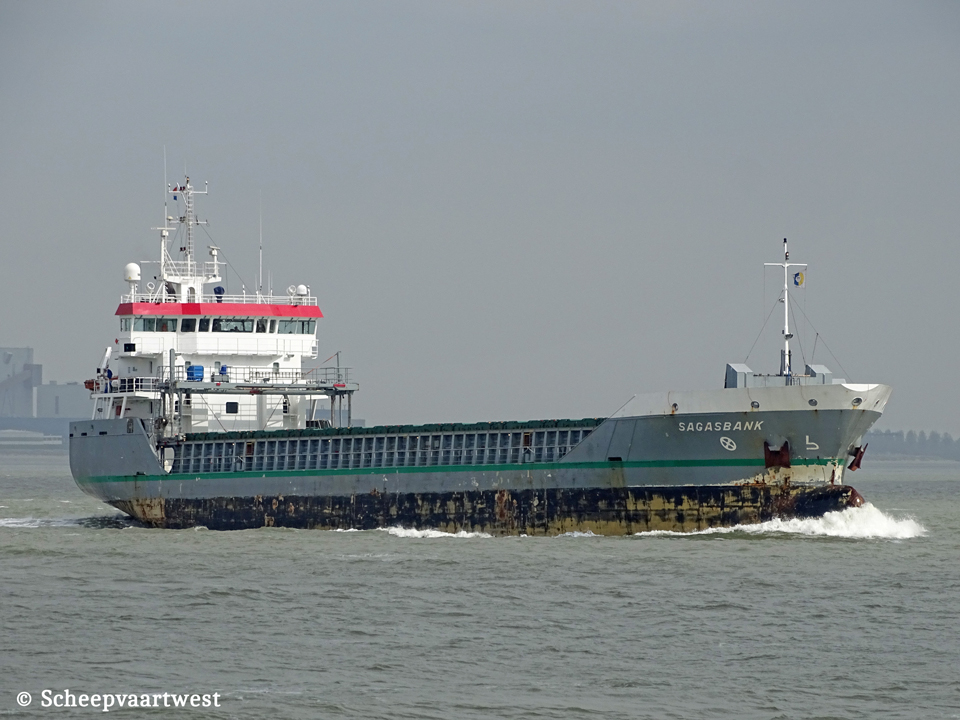

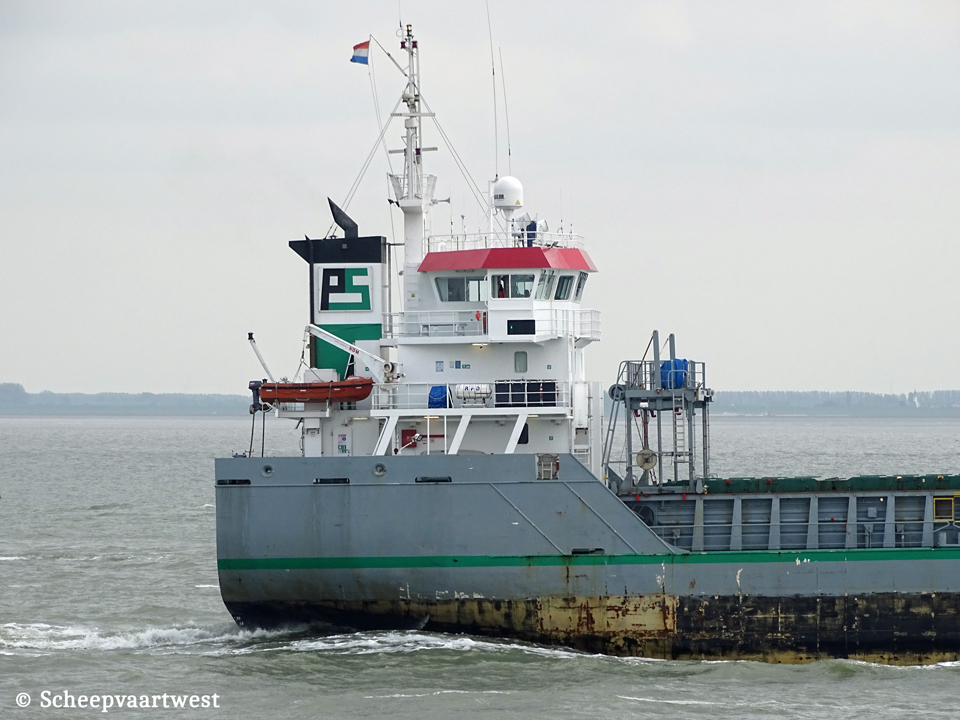

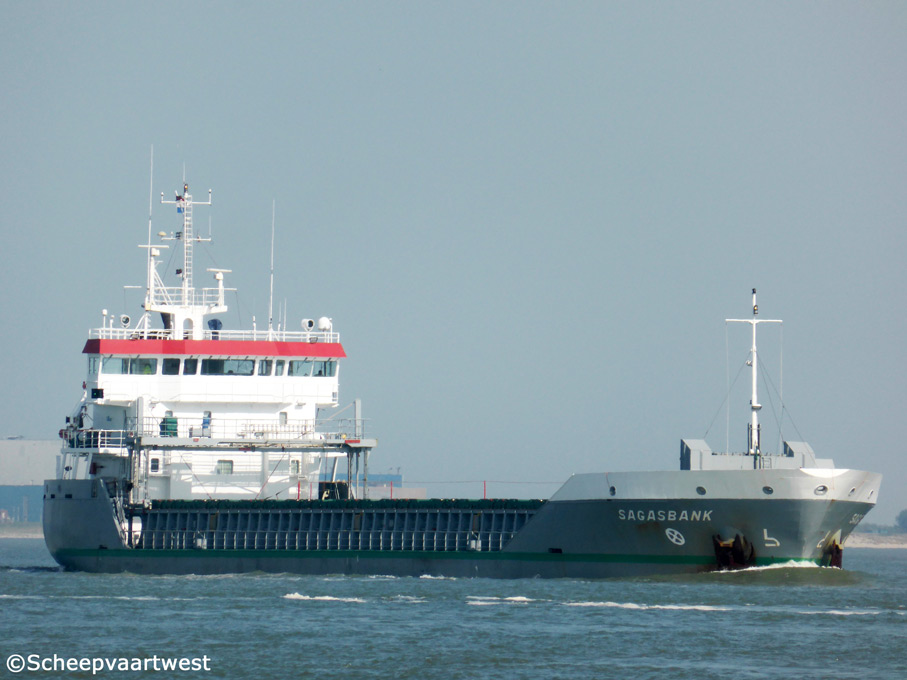

Westerschelde 24 April 2018 |
 |
 |
 |
 |
|||
| Westerschelde 24/04/18 | Westerschelde 06/04/19 | Westerschelde 17/05/14 | Westerschelde 23/04/18 | |||
|
Name |
SAGASBANK |
|
Previous names |
2008 Launch as: Jetstream |
|
Type |
Multi-purpose dry cargo carrier - Container ship heavy cargo Open hatch - Single-decker |
|
IMO-number |
9369655 |
|
Call sign |
PCGU |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.999 t |
|
DWCC |
Summer: 4.250 t |
|
NT |
1.669 t |
|
Number of 20ft containers |
106 |
|
Length |
89,95 m overall 91,98 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
5,83 m |
|
Air draft |
21,5 m in ballast |
|
Freeboard |
1.232 mm |
|
Depth |
7,35 m moulded |
|
Speed |
Max.: 13,0 knots Service: 11,5 knots |
|
Built |
2010 |
|
Launch date |
09/08/2008 |
|
Date of completion |
12/11/2010 |
|
Builder casco |
Brodogradiliste Apatin Serbia |
|
Builder completion |
Bijlsma Shipyard B.V. Lemmer The Netherlands |
|
Yard number |
737 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Movable bulkheads |
3 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L26A - 4 stroke single acting 6 cylinder 260 x 320 mm diesel engine 1.860 kW / 2.529 hp at 900 rpm Builder: Wärtsilä Italia S.p.A., Trieste - Italy |
|
Propellers |
1x Screw propeller controllable pitch 4 blades |
|
Boilers |
1x CHO 9,90 m² - 10,0 bar 1x CHR 26,00 m² - 10,0 bar |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Generators |
2x Diesel engines coupled with Stanford HCM 434 generators each 235 kVA - 188 kW - 296 hp |
|
Bow thruster |
1x Vanhaar Omega VB-960 - 250 kW at 1.500 rpm |
|
Number of holds |
1x Fully box Dimensions: 63,00 x 11,70 x 8,39 m |
|
Total capacity of holds |
Grain: 6.032 m³ / 207.000 ft³ |
|
Hold ventilation |
Electrical ventilation: Abt. 6 air changes per hour basis empty holds Hold is fitted with dehumidifier system |
|
Number of hatches |
1 Dimensions: 63,00 x 11,70 m |
|
Hatch type |
Coops & Nieborg pontoon hatch covers |
|
Tank capacities |
HFO: 430,08 m³ MGO: 32,3 m³ Water ballast: 1.710,94 m³ Fresh water: 49,84 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
ISM manager |
Pot Scheepvaart Handelskade west 28A 9934 AA Delfzijl The Netherlands |
|
Owner |
C.V. Scheepvaartonderneming Sagasbank Delfzijl The Netherlands |
|
Registered owner |
Bankship IV B.V Care of Pot Scheepvaart Handelskade West 28A, 9 934 AA Delfzijl The Netherlands |
|
Latest data adjustment |
05 August 2021 |
