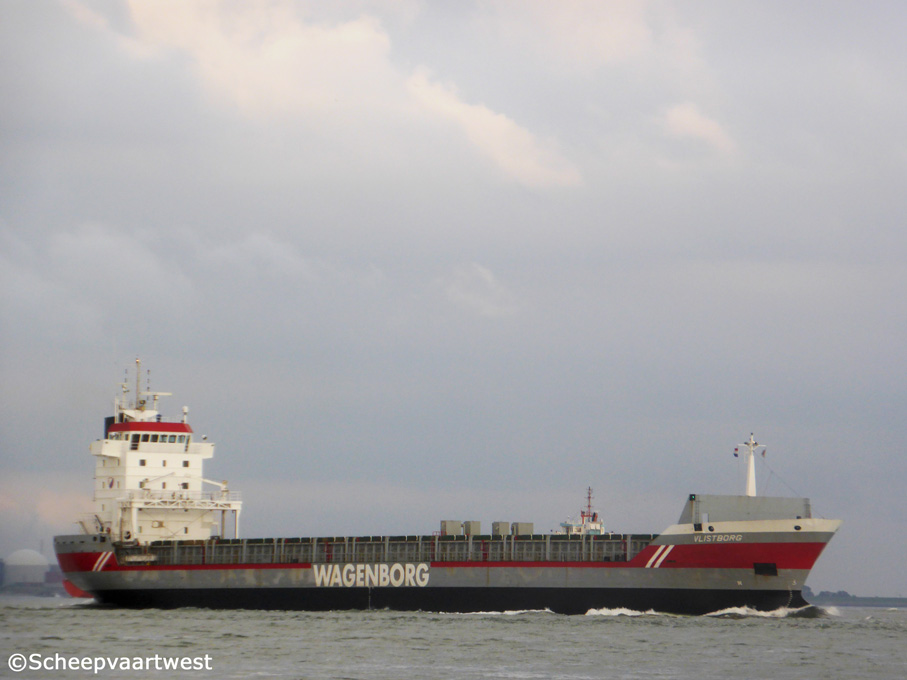

Vlistborg 01

Westerschelde 15 July 2014

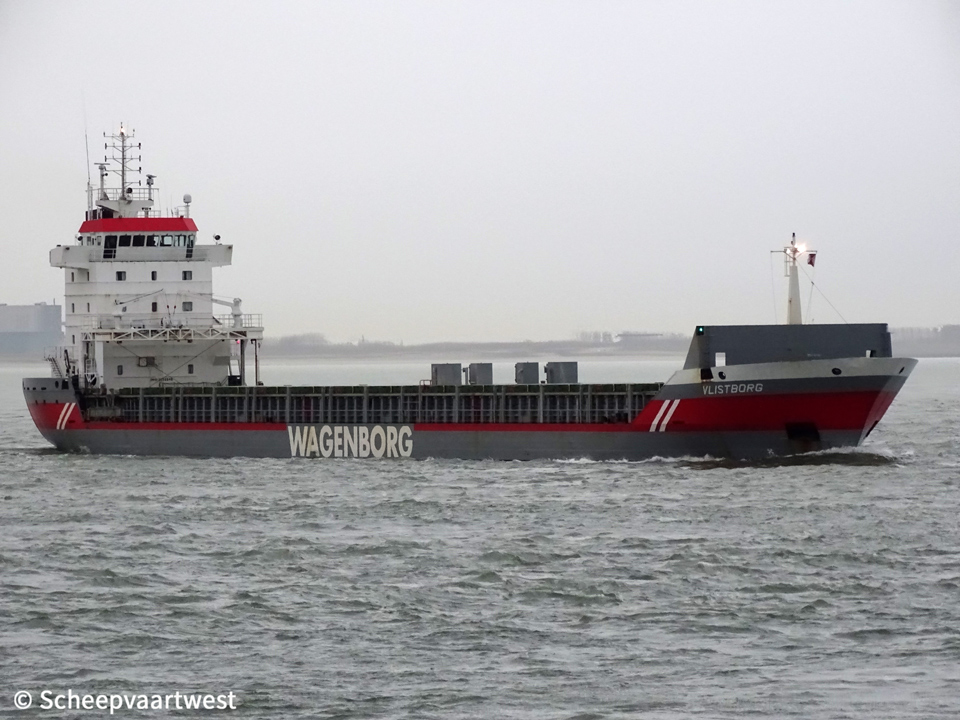

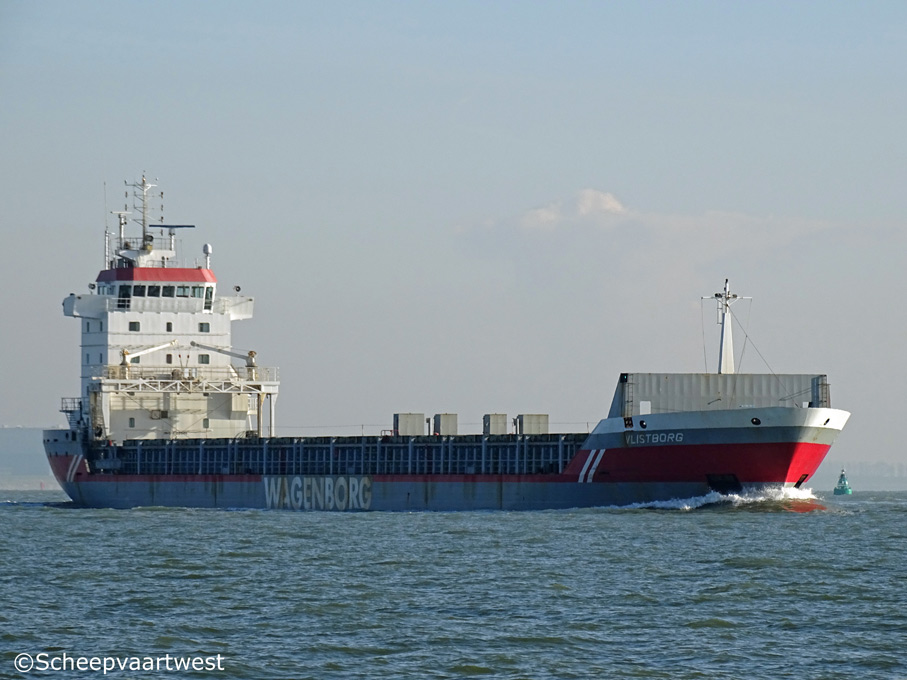

Vlistborg 02   Vlistborg 03
Westerschelde 21/01/16 Westerschelde 08/01/19



Name

VLISTBORG

Type

Multi-purpose dry cargo carrier - Heavycargo - Container ship

IMO-number

9160346

Call sign

PDAK

Flag

The Netherlands

Port of registry

Delfzijl

Previous flags

1999 - 2005 The Netherlands, Delfzijl - Call sign: PFAH

2005 - 2009 Netherlands Antilles, Willemstad - Call sign: PJQP

2009 - 2015 Antigua & Barbuda,St. John's - Call sign: V3EM6

GT

6.130 t

Suez: 6.380,75 t

DWT

Summer: 8.664 t

NT

3.424 t

Suez: 5.619,81 t

Panama: 5.468 t

Number of 20ft containers

552

Length

132,23 m overall

123,84 m between perpendiculars

Breadth

15,87 m moulded

Draught

7,05 m

Air draft

33,50 m

Freeboard

2.612 mm

Depth

9,65 m moulded

Speed

15,0 knots

Built

1999

Launch date

1999

Date of completion

21/03/1999

Builder

Bodewes Scheepswerf Volharding Foxhol B.V.

Foxhol

The Netherlands

Yard number

332

Hull material

Ordinary steel

Hull type

Single hull

Watertight compartments

6

Continuous decks

1

Main engine

1x Stork Wärtsilä 6L38 - 4 stroke single acting 6 cylinder 380 x 475 mm combustion engine 3.960 kW / 5.380 hp at 600 rpm

Built: 1998

Builder: Wärtsilä NSD, Zwolle - The Netherlands

Propellers

1x Screw propeller controllable pitch - aft at 148 rpm

Boilers

1x CHR WIesloch 55,00 m² - 13,0 bar

1x CHO WIesloch 17,50 m² - 13,0 bar

Electric installations

Power voltage: 450 V

Lighting voltage: 230 V

Frequency: 60 Hz

Shaft generator

1x 813 kVA - 650 kW

Generators

2x Diesel generatorsets each 300 kVA - 240 kW - 353 hp

Emergency generator

1x Diesel generatorset 88 kVA - 70 kW

Number of holds

2

Hold 1: 39,96 x 13,20 x 10,84 m

Hold 2: 52,54 x 13,20 x 10,84 m

Total capacity of holds

12.604 m³ / 454.000 ft³

Number of hatches

2

Hatch 1: 39,96 x 13,20 m

Hatch 2: 52,54 x 13,20 m

Tank capacity

Fuel oil: 471,81 m³

Diesel oil: 47,25 m³

Lub oil: 32,86 m³

Ballast: 3.724,85 m³

Manager

Wagenborg Shipping B.V.

Delfzijl

The Netherlands

Operator

Wagenborg B.V.

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Owner

Scheepvaartondeneming Vlistborg B.V.

Delfzijl

The Netherlands

Previous owner

2005 -2015 W. Waller KG, m.s. Metta
Care of Esmeralda Schiffahrts- Verwaltungsgesellschaft mbH, Neue Strasse 7

21745 Hemmoor

Germany

Latest data adjustment

08 June 2020
