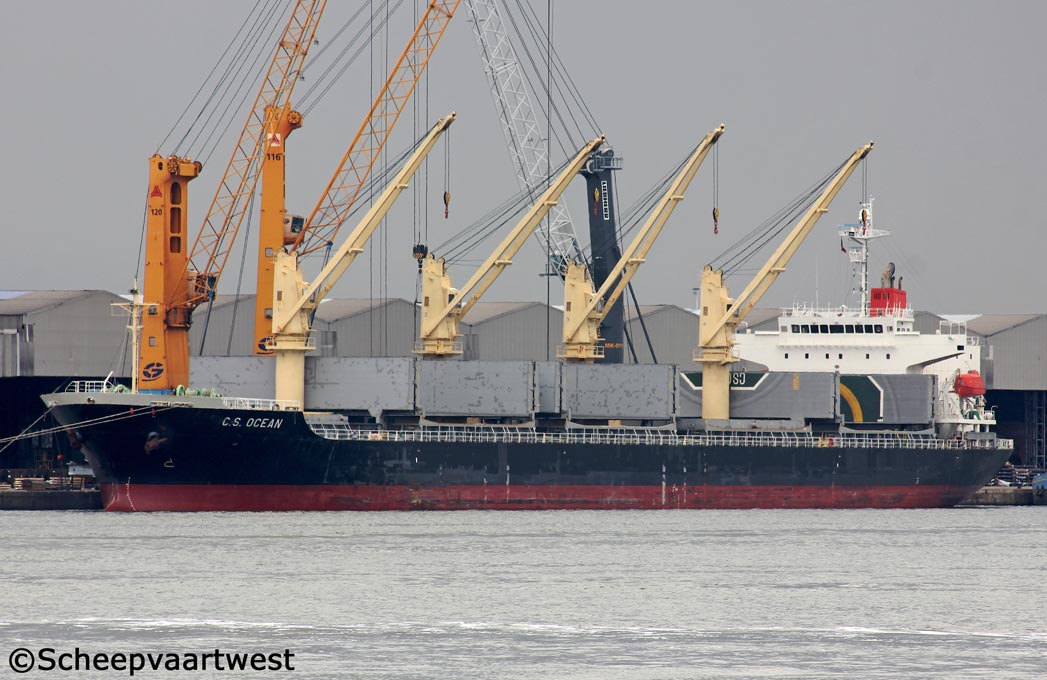

C.S. Ocean 01

Antwerpen 30 July 2014



Name

C.S. OCEAN

Type

General cargo ship

IMO-number

9363273

Call sign

3EPH6

Flag

Republic of Panama

Port of registry

Panama City

GT

20.236 t registered

DWT

Summer: 32.269 t

NT

10.947 t registered

Length

177,13 m overall

Breadth

28,40 m moulded

Draught

Summer: 10,02 m

Moulded L x B x D

168,50 x 28,40 x 14,25 m

Registered L x B x D

169,45 x 28,40 x 14,25 m

Freeboard

4.292 mm

Depth

14,25 m moulded

Speed

Max.: 13,3 knots

Built

2008

Keel laid

20.06.2006

Launch date

14.11.2007

Date of completion

26.02.2008

Builder

Kanda Shipbuilding Co. Ltd.
Kure
Japan

Yard number

483

Hull material

Steel

Main engine

1x 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine - 6.620 kW at 125,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 440 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 1,99 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

3x Generators - 1.200 kVA

Cargo capacity

Bales: 41.124 m³

Grain: 42.595 m³

Tank capacities

Fuel oil: 1.934 m³

fresh water: 230 m³

Water ballast: 12.360 m³

Manager

Chugoku Sougyo Co. Ltd.
Fukuyama
Japan

Registered owner

Caribstar Shipping S.A.
Hiroshima
Japan

Latest data adjustment

20 December 2014
