Saimaagracht - IMO 9288069

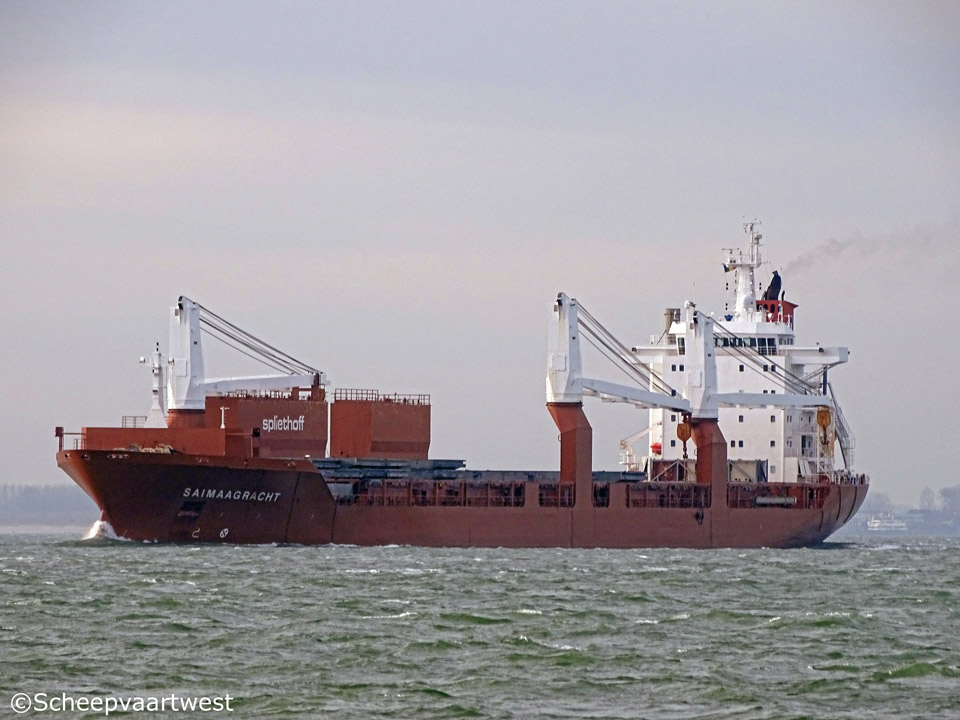

Westerschelde 23 December 2016

Name

SAIMAAGRACHT

Type

General cargo ship

IMO-number

9288069

Call sign

PHCQ

Flag

The Netherlands

Port of registry

Amsterdam

GT

18.321 t

DWT

Summer: 23,600 t excl TWD

22.845 t incl TWD

NT

7.647 t

Number of 20ft containers

In hold: 555

On deck: 736

Total: 1.291

Number of 40ft containers

In hold: 259

On deck: 310

Total: 569 + 130 TEU

Reefer capacity & power

120 & 850 kW

Length

185,40 m overall

173,50 m between perpendiculars

Breadth

25,30 m moulded

Draught

10,61 m

Height in hold as SID

14,38 m to main deck

Height in lower hold as TWD

3x Heights: 3,18 or 7,03 or 10,23 m

Height in tween deck as TWD

3x Heights: 10,10 or 6,25 or 3,05 m

Speed

18,0 knots in ballast

17,0 knots laden

Built

2005

Builder

New Szczecin Shipyard
Szczecin
Poland

Yard number

B587-IV/7

Hull material

Steel

Movable bulkhead

Removable pontoons for up to 16 compartments at TEU interval

Main engine

1x Wärtsilä 6L64 - 4 stroke 6 cylinder diesel engine - 16.400 hp / 12.060 kW

Propellers

1x Controllable pitch propeller

Shaft generator

1x 1.000 kW

Generators

3x Diesel generatorsets each 450 kW

Bow thruster

1x 1.155 hp / 850 kW

cargo capacity

Hold 0: 15.430 ft³ / 437 m³

Hold 1: 160.000 ft³ / 4.530 m³

Hold 2/3: 797.750 ft³ / 22.590 m³

Total: 973.180 ft³ / 27.557 m³

If tween deck installed 67.450 ft³ / 1.910 m³ less in hold

Hold 0 can be open connected to Hold 1 with movable separation bulkhead

Hatches

Weather deck:

No.0: 6,40 x 9,00 m
No.1: 25,60 x 17,80 m / 15,20 m
No.2: 38,40 x 17,80 m
No.3: 44,80 x 20,40 m

Steel, end folding type

Tween deck:

No.1: 25,60 x 17,80 m/ 15,20 m
No.2: 38,40 x 17,80 m
Under-crossbeam: 4,30 x 17,80 m
No.3: 44,80 x 20,40 m

Consisting:

17 steel pontoons

Maximum load

Weather deck hatch cover: 2,0 t m²

Tween deck hatch covers:
hatchway 1: 7,50 t/ m²
hatchway 2: 5,50 t/ m²
hatchway 3: 5 t/ m²

Tank top: 20,0 t/m²

Floor space

Tank top: 1.890 m²

Tween deck: 2.101 m²

Weather deck: 2.720 m²

Air changes

Hold 0: 6x p/h

Hold 1: 18x p/h

Hold 2/3: 15x p/h

Bunker capaity

Fuel oil: 1.635 m³

Marine gas oil: 220 m³

Ballast: 8.640 m³

Cargo gear

3x Deck cranes - SWL 120 t each

Manager

Spliethoff's Bevrachtingskantoor
Radarweg 36
1042 AA Amsterdam
The Netherlands

Owner

Spliethoff's Bevrachtingskantoor
Radarweg 36
1042 AA Amsterdam
The Netherlands

Latest data adjustment

08 December 2014
