Antwerpen 12 October 2014 |
|
Name |

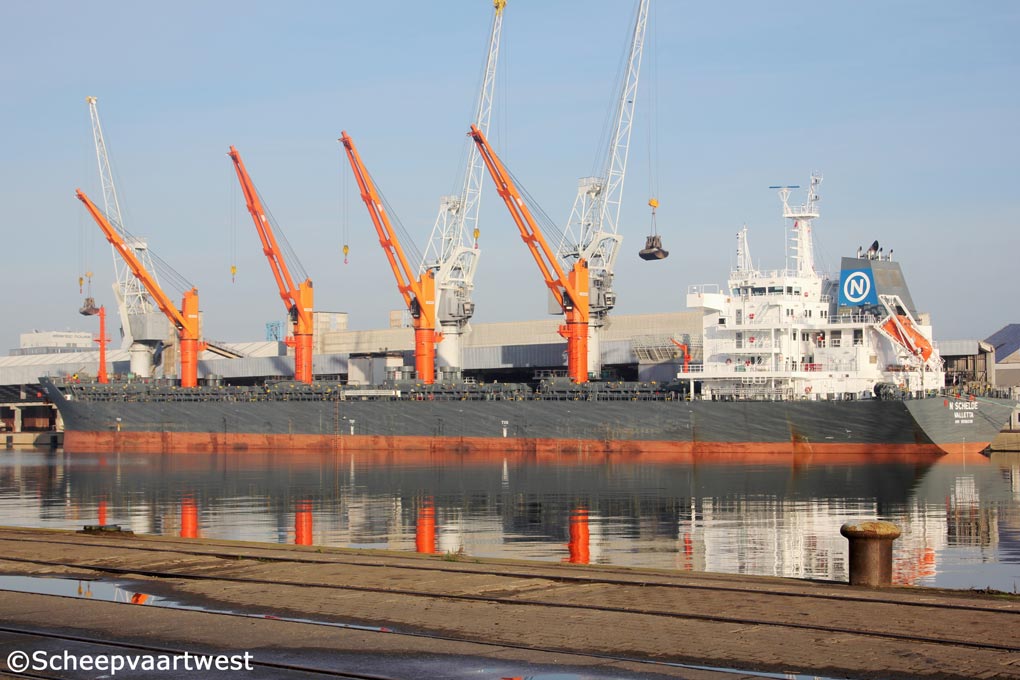

N SCHELDE |
|
Type |
Bulk carrier - Strengthened for heavy cargo Type “Emerald 37” handysize bulker |
|
IMO-number |
9596038 |
|
Call sign |
9HA3232 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
24.195 t registered |
|
DWT |
Summer: 37.212 t |
|
NT |
12.194 t registered |
|
Length |
189,99 m overall |
|
Breadth |
28,31 m moulded |
|
Draught |
Summer: 10,50 m |
|
Moulded L x B x D |
183,69 x 28,31 x 15,20 m |
|
Registered L x B x D |
183,70 x 28,31 x 15,20 m |
|
Freeboard |
4.724 mm |
|
Depth |
15,20 m moulded |
|
Speed |
Service 13,0 knots |
|
Built |
2013 |
|
Keel laid |
26/12/2010 |
|
Launch date |
12/11/2012 |
|
Date of completion |
26/03/2013 |
|
Builder |
Zhejiang Ouhua Shipbuilding Co. Ltd. Zhoushan China |
|
Yard number |
613 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä/Yichang 6RTA48T-D - 2 stroke single acting 6 cylinder 480 x 2.000 mm diesel engine 7.000 kW / 9.517 hp at 116,0 rpm Manufacturer: Yichang Marine Diesel Engine Plant Co. Ltd. (Wärtsilä) |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 530 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 8,9 bar Evaporation: 2,80 t/h Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
4x Generatorsets total 2.323 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bales: 47.930 m³ Grain: 48.902 m³ |
|
Number of hatches |
5 |
|
Tank top strength |
Hold no.: 1/3/5: 25,0 t/m² Hold no.: 2/4: 20,0 t/m² |
|
Tank capacities |
Fuel oil: 1.557 m³ Fresh water: 351 m³ Water ballast: 14.112 m³ |
|
Cargo gear |
4x MacGregor electro-hydraulic deck cranes SWL 30,0 t each (at 28,00 m outreach) |
|
Manager |
Nord Klaus Oldendorff Reederei GmbH Zirkusweg 2 Hamburg Germany |
|
Registered owner |
(Bareboat Charterer) N Schelde Shipping Company Limited Hamburg Germany |
|
Renamed |
2017 Nordschelde Portugal, Madeira - Call sign: CQAW9 Manager: Reederei Nord GmbH; Hamburg - Germany Owner: Schifffahrtsgesellschaft MS "N Schelde" mbH & Co. KG - Germany |
|
Latest data adjustment |
14 July 2022 |
