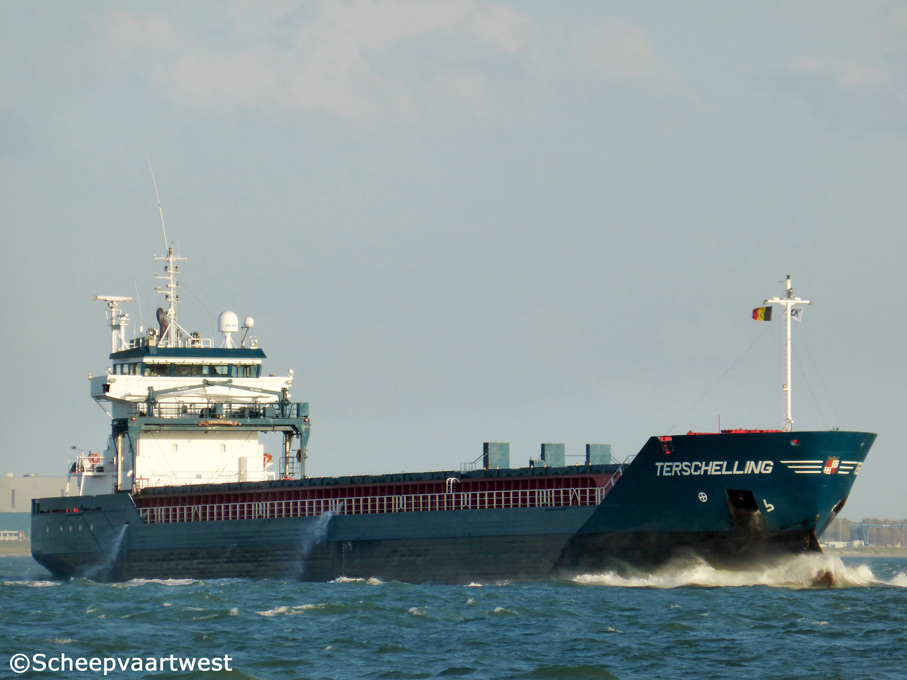

Terschelling 01

Westerschelde 09 October 2014



Name

TERSCHELLING

Type

General cargo ship - Heavy cargo - Container ship

IMO-number

9313826

Call sign

PHBA

Flag

The Netherlands

Port of registry

Harlingen

GT

3.990 t

DWT

Summer: 6.040 t

Winter: 5.854 t

NT

2.208 t

Light ship

1.807,24 t

Number of 20ft containers

In hold: 138

On deck: 104

Total: 242

Number of 40ft containers

In hold: 104

On deck: 48

Total: 152

Length

110,78 m overall

105,45 m between perpendiculars

Breadth

14,00 m moulded

Draught

Summer: 6,09 m

Winter: 5,96 m

Freeboard

2.054 mm

Depth

8,13 m moulded

Speed

13,0 knots

Built

2005

Keel laid

05.2005

Launch date

04.11.2005

Date of completion

07.12.2005

Builder

Ferus Smit Scheepswerf B.V.
Hoogezand
The Netherlands

Yard number

362

Hull material

Steel

Watertight compartments

9

Continuous decks

1

Main engine

1x Mak - 4 stroke 8 cylinder 255 x 400 mm diesel engine - 2.640 kW / 3.587 hp at 750 rpm

Builder: MaK Deutschland GmbH & Co. KG, Bremen - Germany

Propellers

1x Lips screw propeller controllable pitch - aft at 200 rpm

Diameter: 3.200 mm

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x 440 kVA - 352 KW

Generators

2x Main diesel generatorsets each 175 kVA - 140 kW - 222 hp

Emergency generator

1x Diesel generatorset 52 kVA - 42 kW - 68 hp

Bow thruster

1x Jastran BU 50 F - 335 kW

Number of holds

2

Hold 1: 27,50 x 11,50 x 9,00 m

Hold 2: 50,14 x 11,50 x 9,00 m

Total capacity of holds

Hold 1: 2.610 m³ / 92.226 ft³

Hold 2: 5.336 m³ / 188.551 ft³

Cargo hatchways

2

Hatch 1: 27,50 x 11,50 m

Hatch 2: 50,80 x 11,50 m

Strength

Surface tanktop maximum pressure 15 t/m²

Surface hatches maximum pressure 1,6 t/m²

Tank capacities

HFO bunkers: 350 m³

Gas oil bunkers: 45 m³

Ballast: 2.540 m³

Fresh water: 46 m³

Dirty oil: 8,9 m³

Sludge: 10,7 m³

Bilge: 12,8 m³

Dirty water: 17,7 m³

Lube oil: 19,8 m³

Fuel capacity

400 m³

Manager

Harlingen Kustvaart B.V.
Korte Lijnbaan 13b
8861 NS Harlingen
The Netherlands

Registered owner

Terschelling Shipping C.V.

Latest data adjustment

02 December 2014
