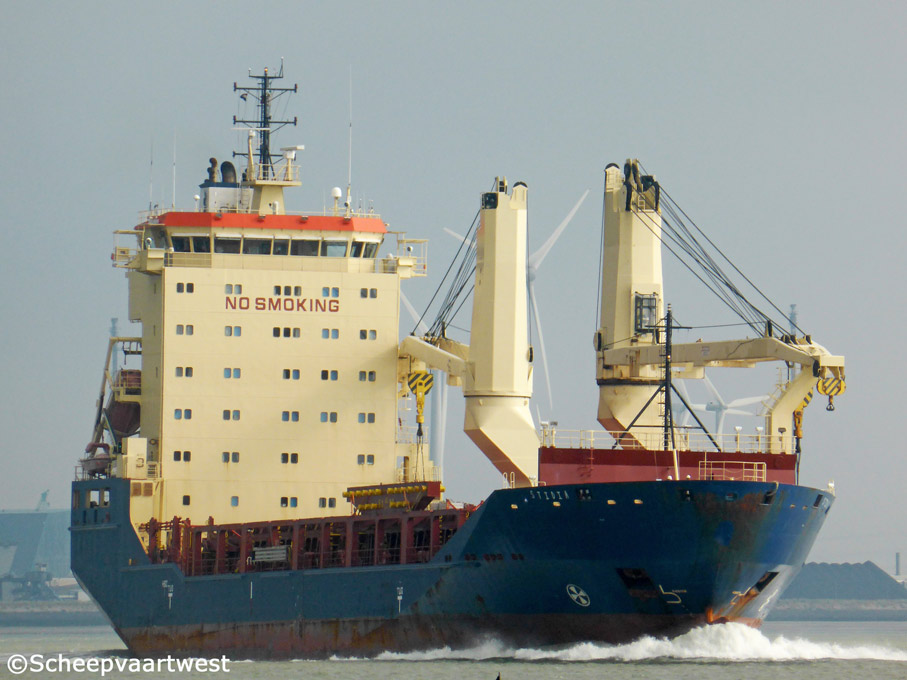

Stidia 01

Westerschelde 15 October 2014

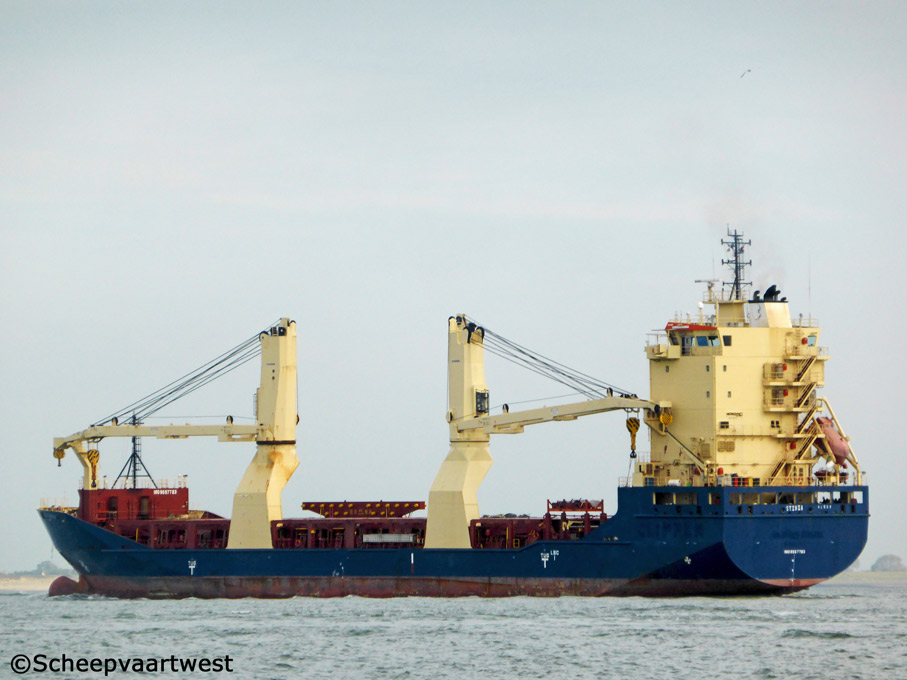

Stidia 02
15/10/14



Name

STIDIA

Previous names

2011 Launch as: Clipper Signy

05.2001 - 10.2014 Clipper Grand - Bahamas, Nassau

Type

General cargo ship

IMO-number

9557783

Call sign

7THB

Flag

Algeria

Port of registry

Alger

GT

8.161 t

DWT

9.100 t

NT

3.430 t

Number of 20ft containers

681

Reefer capacity

In hold: 46

On deck: 54

Length

119,85 m overall

Breadth

20,40 m

Draught

Summer: 8,45 m

Depth

11,10 m

Speed

Eco: 13,0 knots

Max.: 16,0 knots

Built

2011

Launch date

01.06.2011

Date of completion

27.11.2011

Builder

Zhoushan Shipyard
Zhoushan
China

Yard number

2142

Hull material

Steel

Main engine

1x MAN-B&W/Hitachi 6S42MC - 6 cylinder diesel engine 6.480 kW

Propellers

1x Fixed propeller

Number of holds

1

Dimensions: 65,60 x 15,30 x 11,81 m

Cargo capacity

Bale: 10.498 m³ / 393.080 ft³

Bale with out TWD: 11.131 m³ / 370.725 ft³

Number of hatches

1

Dimensions: 65,60 x 15,30 m

Tween deck

3 positions

Tanktop to twd: 5,31 /6,42 /7,99 m

Twd to hatchcover: 3,02 / 4,59 / 5,70 m

Permissible loads

Tanktop: 20,0 t/m²

Tweendeck hatch: 3,5 t/m²

Weatherdech hatch: 3,5 t/ m²

Tank capacities

HFO: 960 m³

MGO: 120 m³

fresh water:120 m³

Cargo gear

2x Crane - SWL 200 t each

Sister ships

Clipper Galaxy

Clipper Gemini

Latest data adjustment

06 December 2014
