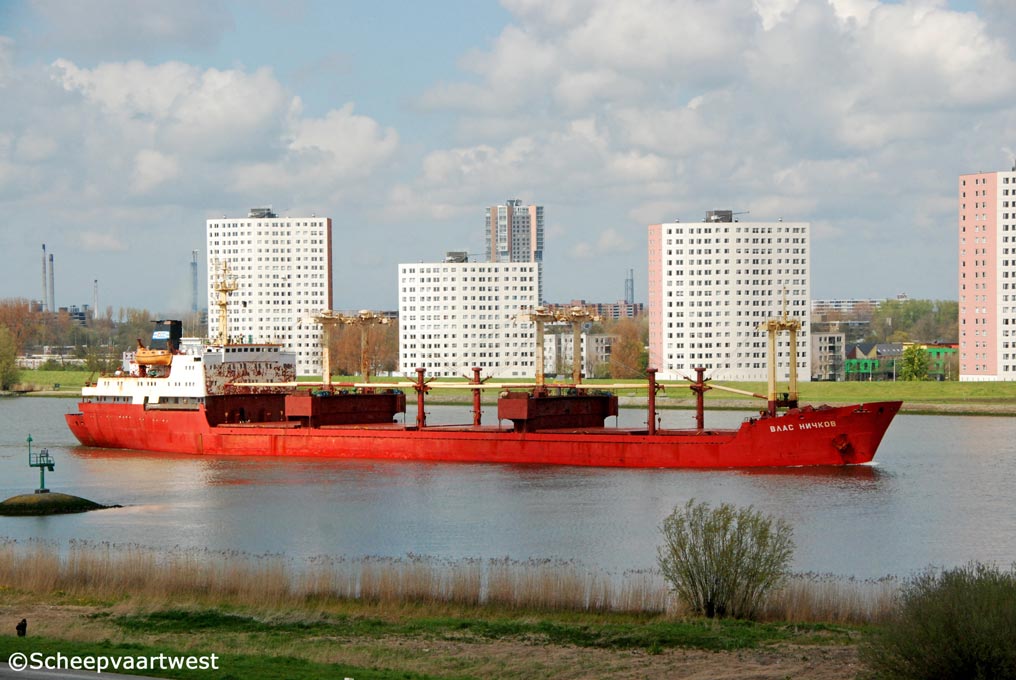

Vlas Nichkov 01

Spijkenisse 21 April 2012

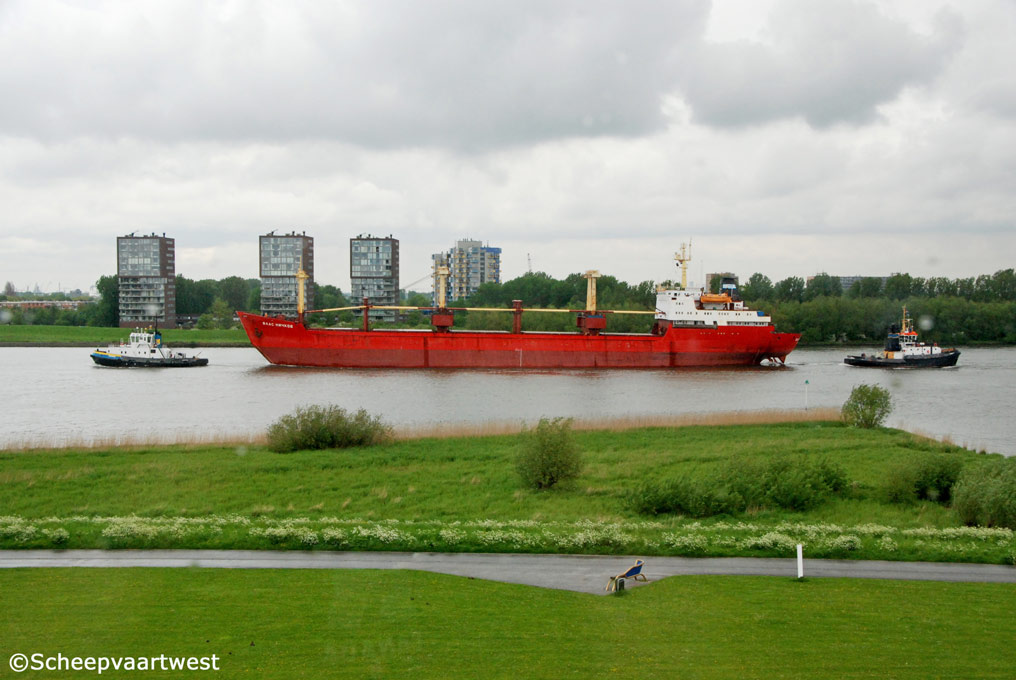

Vlas Nichkov 02
15/05/12



Name

VLAS NICHKOV

Russian name

ВΛΑС НИЧΚΟΒ

Type

General cargo ship - Timber carrier

Main products

Wood packaged - Wood logs - Grain - Container facility

IMO-number

7362419

Call sign

UCMV

Flag

Russian Federation

Port of registry

Arkhangelsk

GT

10.133 t

DWT

Summer: 14.204 t

NT

4.994 t

Displacement

19.730 t full load

Number of 20ft containers

308

Length

151,75 m

139,87 m

Breadth

21,06 m

Draught

Summer: 8,69 m

Keel to top antenna

41,50 m

Depth

11,60 m to keel

Keel to top of hatch covers

13,20 m

Speed

Service: 15,80 knots

Built

1974

Date of completion

30.12.1973

Builder

Stocznia Gdanska im Lenina
Gdansk
Poland

Yard number

B540/01

Hull material

Steen

Watertight bulkheads

8

Continuous decks

1

Main engine

1x Sulzer 6RND68 diesel engine - 9.900 bhp / 7.382 kW at 150 rpm

Built: 1973

Propellers

1x Fixed pitched solid propeller

Generators

3x Diesel generatorsets each 504 kVA

Number of holds

5

Hold 1: 8,40 + 9,0 x 5,360 / 13,00 x 9,08 m

Hold 2: 20,00 x 17,20 x 10,48 m

Hold 3: 19,80 x 17,20 x 10,48 m

Hold 4: 19,60 x 17,20 x 10,48 m

Hold 5: 19,60 x 17,20 x 10,48 m

Cargo capacity

Bale:

Hold 1: 1.721 m³

Hold 2: 3.777 m³

Hold 3: 3.783 m³

Hold 4: 3.777 m³

Hold 5: 3.722 m³

Total: 16.780 m³

Grain:

Hold 1: 1.760 m³

Hold 2: 3.875 m³

Hold 3: 3.875 m³

Hold 4: 3.875 m³

Hold 5: 3.821 m³

Total: 17.206 m³

Number of hatches

5

Hatch 1: 6,00 + 6,70 x 9,10 + 11,60 m

Hatch 2: 15,30 x 7,70 + 7,70 m

Hatch 3: 15,30 x 7,70 + 7,70 m

Hatch 4: 15,30 x 7,70 + 7,70 m

Hatch 5: 15,10 x 7,70 + 7,70 m

Deck space for cargo

1.050 m²

Max. permissible loading

Hatch cover: 1,75 t/m²

On deck: 2,30 t/m²

Tank top:

N° 1: 8,01 t/m²

N° 2-5: 10,39 t/m²

Tank capacities

Fresh water: 170 t

Bunker: 1.767 m³

Water ballast: 4.146 t

Lifting equipment

9x Derricks - SWL 10,0 t each

Crew

19

Owner

Arkhangelsk NSC

Registered owner

"Northern Shipping Company", Joint-Stock Company
Naberezhnaya Severnoy Dviny, 36
163000 Arkhangelsk
Russia

Sister ships

Fedor Varaksin

Petr Strelkov

Scrapped

08.2012 at Aliaga - Turkey

Latest data adjustment

15 November 2014
