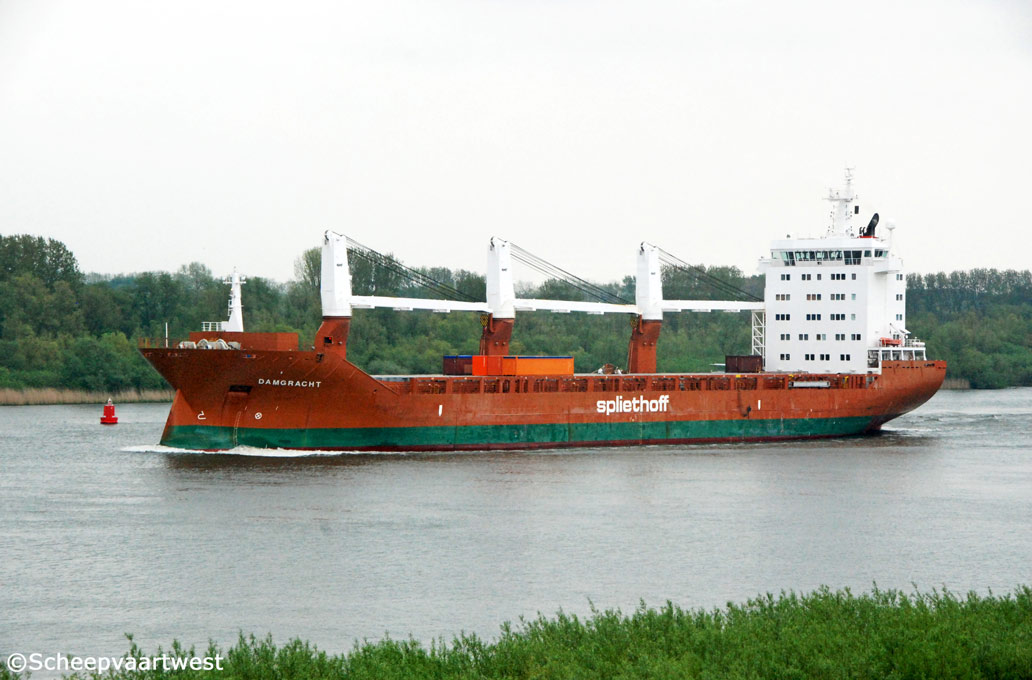

Damgracht 01

Spijkenisse 03 May 2012



Name

DAMGRACHT

Type

General cargo

IMO-number

9420784

Call sign

PBOF

Flag

The Netherlands

Port of registry

Amsterdam

GT

13.558 t

DWT

Summer: 18.143 t

NT

5.920 t

Number of 20ft containers

In hold: 470

On deck: 599

Total: 1.069

Reefer capacity

Up to 850 kW

Length

156,90 m overall

146,60 m between perpendiculars

Breadth

22,80 m moulded

Draught

Summer: 10,25 m

Speed

18,0 knots ballast

17,0 knots laden

Built

2009

Keel laid

20.12.2007

Launch date

17.06.2008

Date of completion

09.01.2009

Builder

CSC Jinling Shipyard
Nanjing
China

Yard number

060402

Hull material

Steel

Bulkheads / Compartments

Removable pontoons for up to 13 compartments

Main engine

1x Wärtsilä 8L46 - 4 stroke 8 cylinder diesel engine - 8.400 kW

Propellers

1x Controllable pitch propeller

Bow thruster

1x 850 kW

Number of holds

2

Cargo hold capacity

Grain & bales:

Hold 1: 208.000 ft³ / 5.890 m³

Hold 2: 557.250 ft³ / 15.780 m³

Total: 765.250 ft³ / 21.670 m³

If tween deck installed 53.000 ft³ / 1.500 m³ less in hold

Hatches

Weather deck:

Hatch 1: 32,00 x 12,70/17,80 m

hatch 2: 71,40 x 17,80 m

steel, end folding/rolling/lift away type

Tween deck:

Hatch 1: 25,60 x 17,80/15,25/12,70/9,40 m

Hatch 2: 64,00 x 17,80 m

Consisting of 15 steel pontoons:

1x 6,37 x 9,30 m

1x 6,37 x 15,15 m

2x 3,17 x 17,72 m

1x 6,37 x 12,60 m

10x 6,37 x 17,70 m

Floor space

Tank top: 1.440 m²

Tween deck: 1.790 m²

Weather deck: 2.250 m²

Max. load

Weather deck hatch covers: 2,60 t/m²

Tank top: 20,0 t/m²

Air changes

Hold 1: 20x per hour

Hold 2: 15x per hour

Tank capacities

Fuel oil: 1.575 m³

Marine diesel oil: 280 m³

Ballast: 6.375 m³

Cargo gear

3x Cranes - SWL 120 t at 16,00 m each

Manager

Spliethoff's Bevrachtingskantoor
Radarweg 36
1042 AA Amsterdam
The Netherlands

Operator

Spliethoff'

Owner

C.V. Scheepvaartonderneming Damgracht.,
Amsterdam
The Netherlands

Latest data adjustment

14 November 2014
