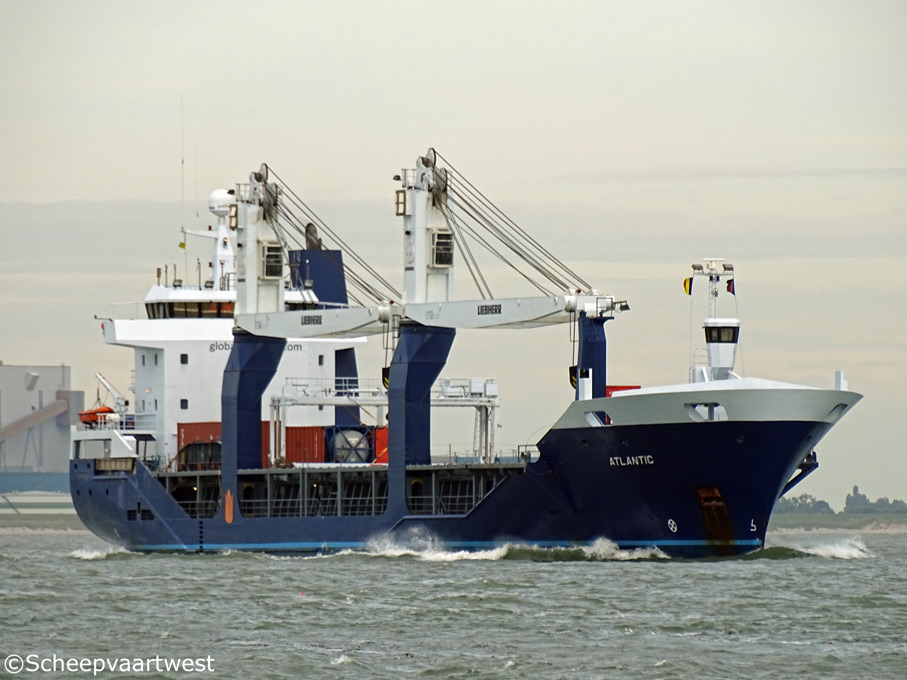

Westerschelde 09 July 2016 |
 |

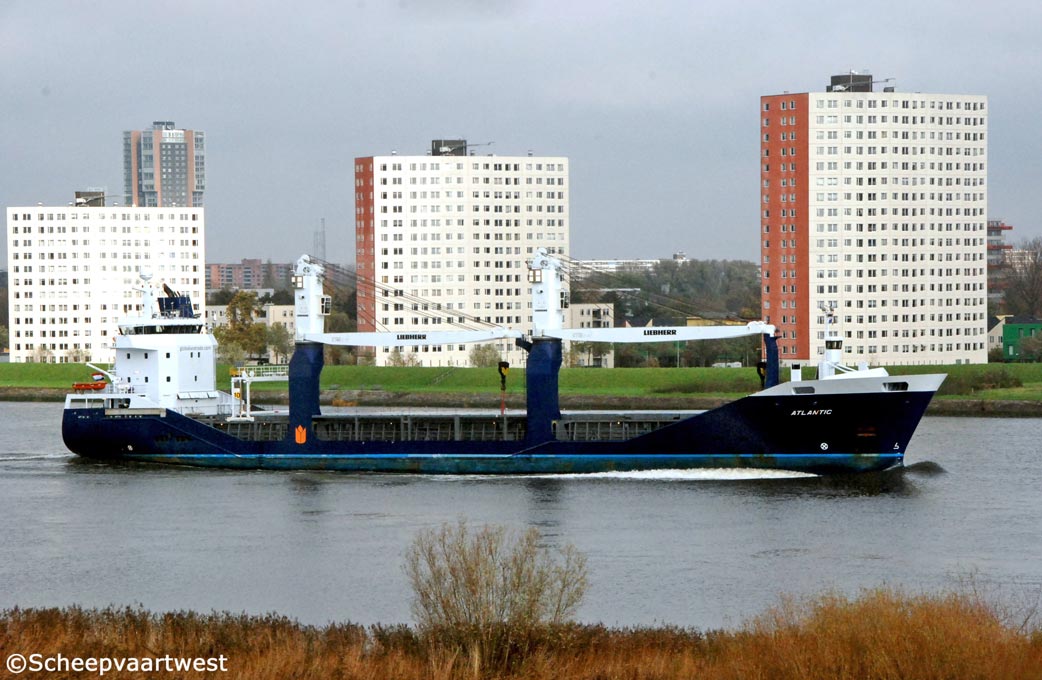

| Spijkenisse 04/11/14 |
|
Name |
ATLANTIC |
|
Type |
General cargo ship - Container ship heavy cargo |
|
IMO-number |
9573634 |
|
Call sign |
PCIR |
|
Flag |
The Netherlands |
|
Port of registry |
Urk |
|
GT |
2.981 t |
|
DWT |
Summer: 3.750 t |
|
Number of 20ft containers |
236 |
|
Length |
104,59 m overall 97,90 m between perpendiculars |
|
Breadth |
15,60 m |
|
Draught |
Max.: 5,82 m |
|
Freeboard |
1.597 mm |
|
Depth |
7,40 m moulded |
|
Speed |
18,0 knots |
|
Built |
2011 |
|
Launch date |
01.2010 |
|
Date of completion |
07.11.2011 |
|
Builder casco |
OAG/Partner Sp.z.o.o. Szczecin (Stettin) Poland |
|
Builder completion |
Hartman Marine Shipbuilding BV |
|
Yard number |
004 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L32 - 4 stroke 8 cylinder diesel engine - 3.680 kW / 4.891 bhp at 750 rpm Builder: Wärtsilä Finland Oy, Vaasa/Vasa - Finland |
|
Propellers |
1x Screw propeller controllable pitch - aft at 154 rpm |
|
Shaft generator |
1x 939 kVA - 751 kW |
|
Generators |
2x Main diesel engines coupled with Stamford HCM 534 D 435 kVA - 348 kW - 571 hp each |
|
Emergency generator |
1x Diesel engine coupled with Stanford UCM 274E generator 120 kVA - 96 kW - 158 hp |
|
Bow thruster |
1x Type ZF TT 3001 FP L-drive, 300 kW, 1.500 rpm, forward 1x Type ZF TT 3001 FP L-drive, 250 kW, 1.500 rpm, aft |
|
Number of holds |
1 |
|
Total capacity of holds |
4.395 m³ |
|
Fuel capacity |
408 m³ |
|
Cargo gear |
2x Liebherr cranes - SWL 120 t |
|
Manager |
Hartman Shipping B.V. (Daniël Hartman) |
|
Owner |
Hartman Beheer 001 B.V. |
|
Registered owner |
Atlantic Seatrade C.V. |
|
Latest data adjustment |
14 November 2014 |
