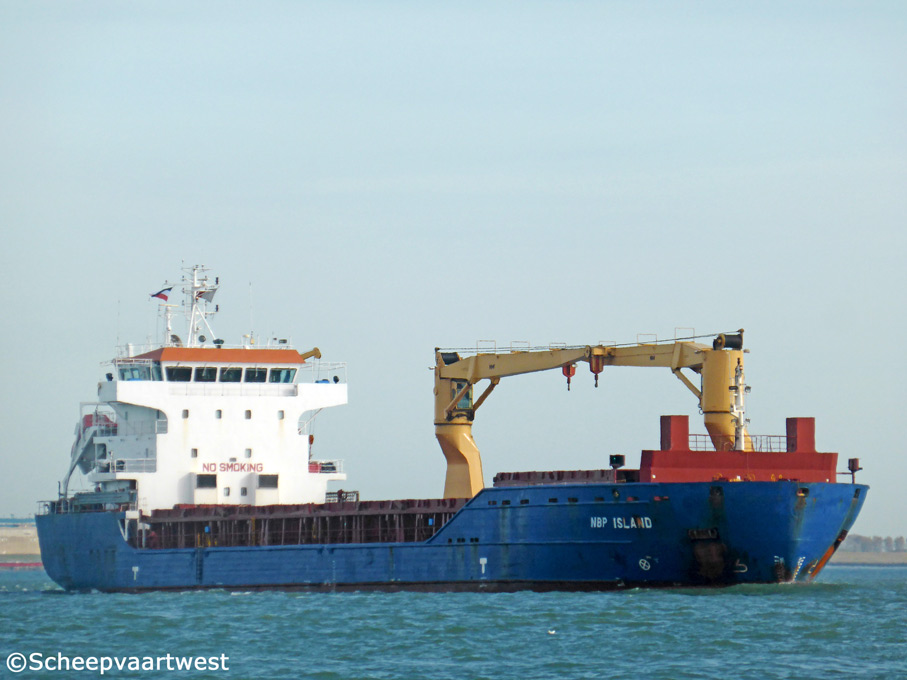

Westerschelde 18 October 2014 |
|
Name |
NBP ISLAND |
|
Previous names |
01/2011 - 01/2014 Baltic Island 01/2014 - 01/2019 NBP Island |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9505558 |
|
Call sign |
V2FH3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
6.668 t |
|
DWT |
Summer: 9.278 t |
|
NT |
3.625 t |
|
Number of 20ft containers |
132 |
|
Length |
106,99 m overall 103,29 m registered |
|
Breadth |
18,42 m moulded |
|
Draught |
Max: 8,00 m |
|
Depth |
10,50 m moulded |
|
Speed |
13,0 knots |
|
Built |
2011 |
|
Keel laid |
30/12/2008 |
|
Launch date |
11/06/2010 |
|
Date of completion |
05/01/2011 |
|
Builder |
Nanjing Huatai Shipyard Co., Ltd. |
|
Yard number |
HT07-4-02 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW at 600 rpm Year of manufacture: 2009 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 148 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 52,6 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg B.V. 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 016,0 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg A/S Division Boiler Production |
|
Electric installations |
2x Plants each 400 V - 475 kVA 1x Plant 400 V - 625 kVA 1x Plant 400 V - 100 kVA 1x Plant 24 V - 135 Ah 2x Plants each 24 V - 176 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 280 Ah 1x Plant 24 V - 360 Ah |
|
Shaft generator |
1x 625 kVA |
|
Generators |
2x Main diesel generatorsets each 475 kVA |
|
Emergency & harbour gen. |
1x Diesel generatorset 100 kVA |
|
Batteries |
1x Battery for automation 280 Ah 1x Battery for UPS navigation 200 Ah 1x Battery for start auxiliary engine 180 Ah 1x Battery for start auxiliary engine 180 Ah 2x Batteries for start emergency engine each 176 Ah 1x Battery for UPS radio 135 Ah |
|
Compressed air receivers |
2x Receivers each 400 litres - 33,0 bar 1x Receiver 250 litres - 11,0 bar 1x Receiver 30 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster 450 kW, forward |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain length: 522,50 m |
|
Cargo gear |
2x NMF deck cranes portside - SWL 35,0 t each |
|
Crew size |
13 |
|
Manager |
Liberty Blue Shipmanagement G.m.b.H. & Co. KG, |
|
Previous managers |
01/2011 -08/2012 - W. Bockstiegel Reederei GmbH & Co. KG, Emden - Germany |
|
Owner |
Borg Island B.V. |
|
Previous names & owners |
01/2011 -01/2014 Baltic Island - Baltic Island G.m.b.H. & Co. K.G., Emden - Germany 01/2014 - 11/2016 NBP Island - NBP Island UG |
|
Renamed |
2019 Weserborg The Netherlands, Delfzijl - Call sign: PCIZ Manager:Wagenborg Shipping B.V., Delfzijl - The Netherlands Owner: Borg Island B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
16 March 2019 |
