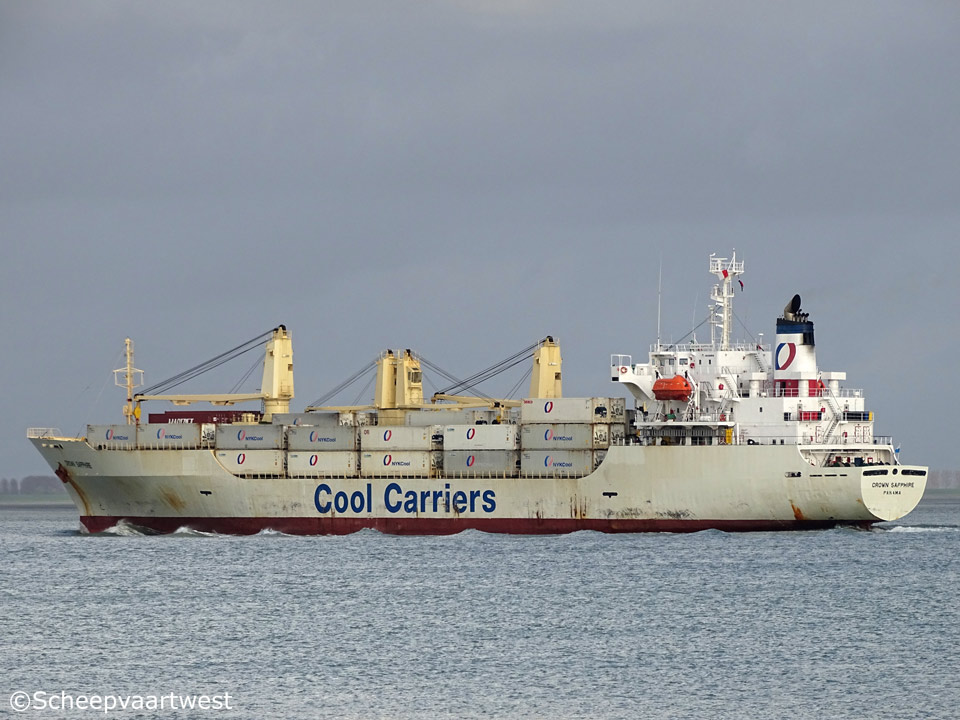

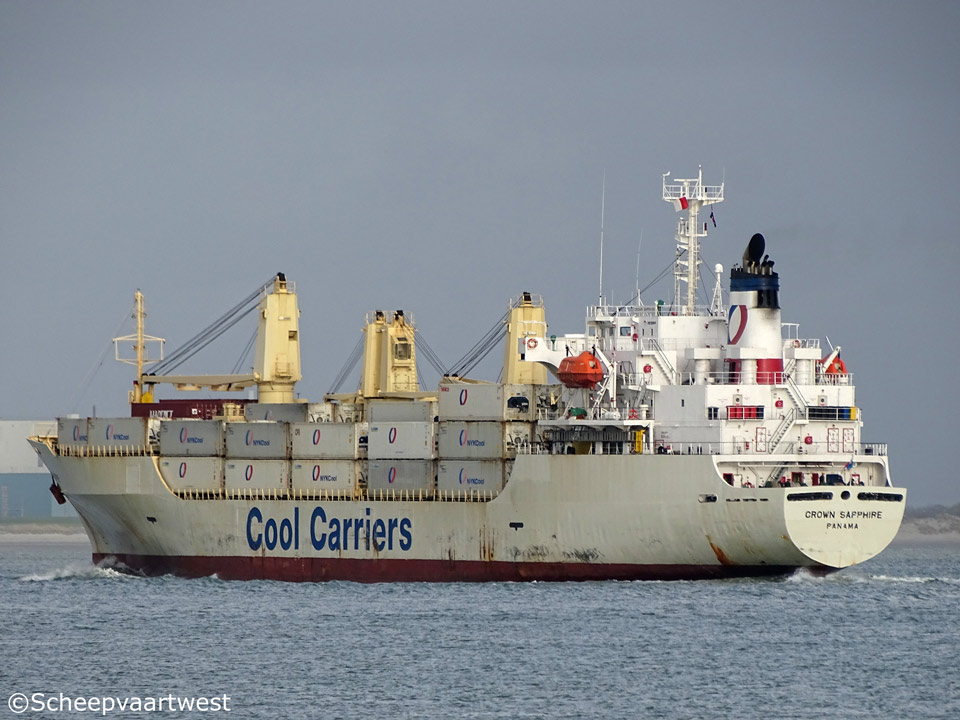

Westerschelde 05 April 2017 |
 |
 |
 |
 |
 |
||||

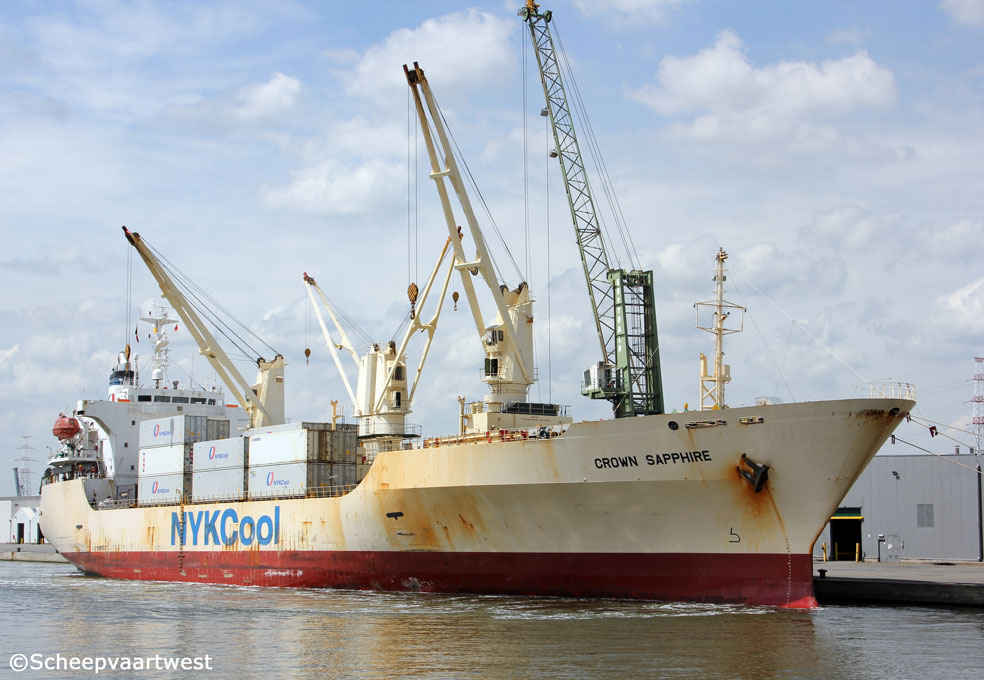

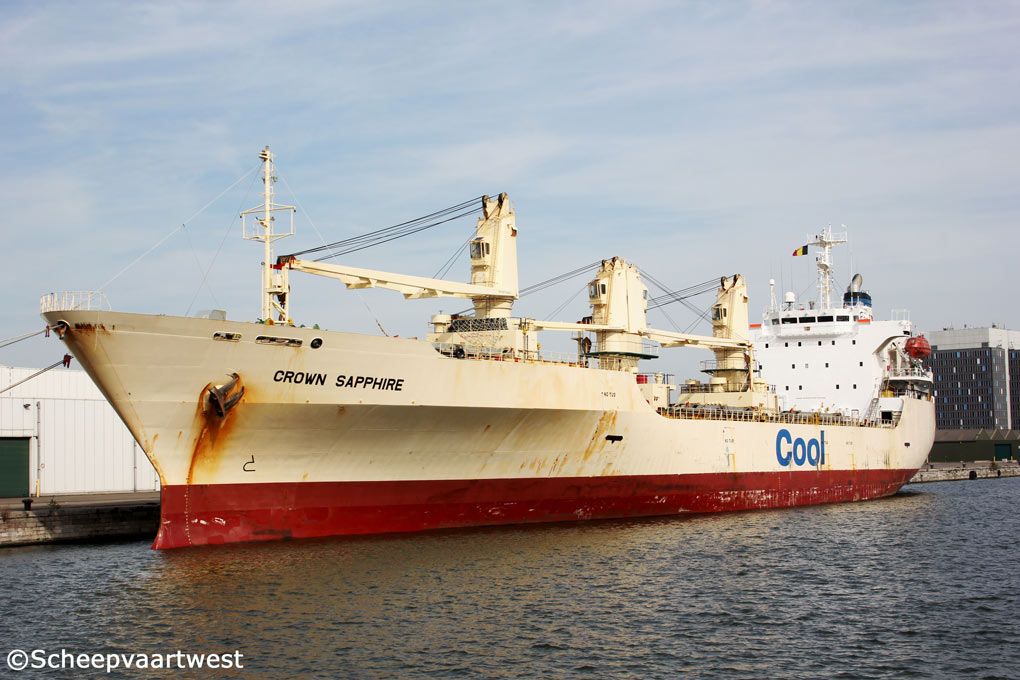

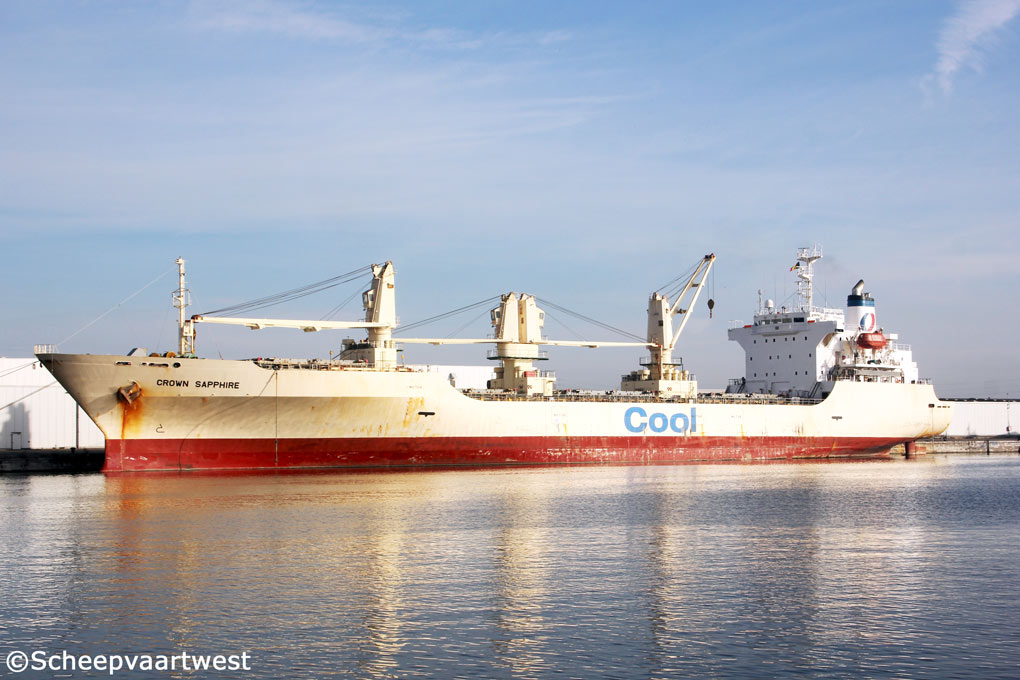

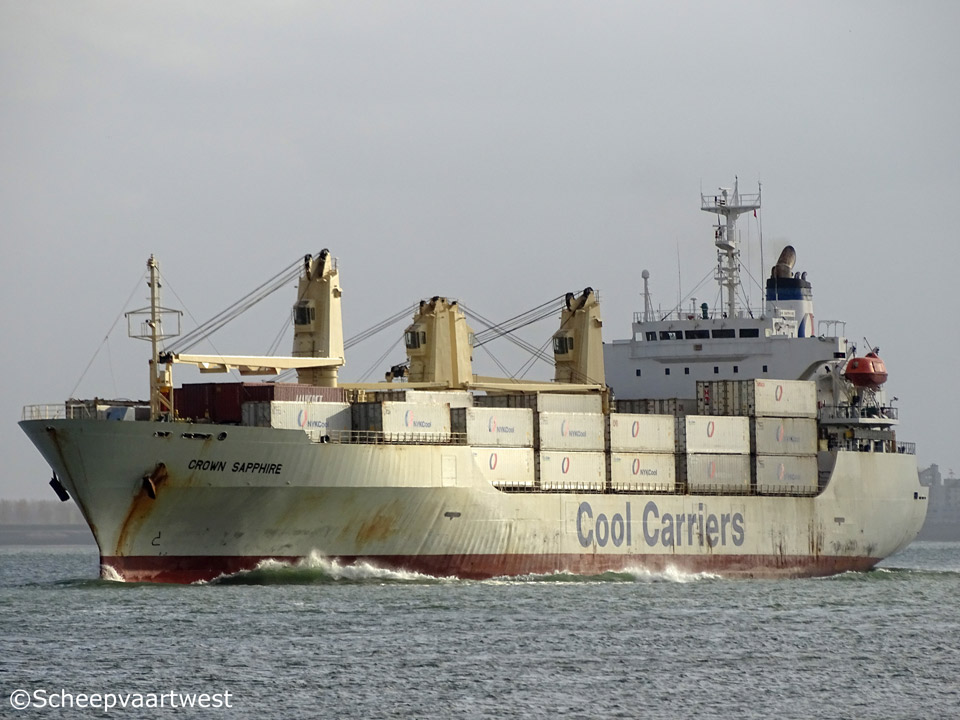

| Westerschelde 05/04/17 | Westerschelde 05/04/17 | Antwerpen 07/07/14 | Antwerpen 28/09/14 | Antwerpen 12/10/14 |
|
Name |
CROWN SAPPHIRE |
|
Type |
Refrigerated cargo carrier |
|
IMO-number |
9159115 |
|
Call sign |
3FYV7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
10.519 t |
|
DWT |
Summer: 10.334 t |
|
NT |
5.406 t |
|
Number of 20ft containers |
Weather deck: 132 empty / 92 loaded Hatch covers: 64 empty / 48 loaded Holds: 72 empty / 72 loaded Total : 268 empty / 212 loaded |
|
Reefer plug |
70 |
|
Length |
151,99 m |
|
Breadth |
23,00 m moulded |
|
Draught |
Summer: 8,67 m |
|
Moulded L x B x D |
139,40 x 23,00 x 13,00 m |
|
Registered L x B x D |
141,15 x 23,00 x 13,00 m |
|
Freeboard |
4.363 mm |
|
Depth |
13,00 m moulded |
|
Speed |
22,7 knots |
|
Built |
1997 |
|
Keel laid |
29.05.1997 |
|
Launch date |
14.09.1997 |
|
Date of completion |
08.12.1997 |
|
Builder |
Iwagi Shipbuilding Co. Ltd. |
|
Yard number |
S-Z172 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 6UEC60LSII - 2 stroke single acting 6 cylinder 600 x 2.300 mm diesel engine - 11.915 kW / 16.204 hp at 105,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 550 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 3,52 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
5x Generators total 3.810 kW |
|
Number of holds |
4 |
|
Refrigerated capacity |
15.505 m³ |
|
Hatch covers |
4 |
|
Tank capacity |
Fuel oil: 1.806 t Fresh water: 381 m³ Water ballast: 923 t |
|
Cargo gear |
2x Cranes - SWL 35,0 t 2x cranes - SWL 8,0 t |
|
Manager |
Norbulk Shipping U.K. LTD. |
|
Operator |
Cool Carrier AB SE-111 57 Stockholm |
|
Previous managers |
Nykcool, Stockholm - Sweden Wallem Shipmanagement Limited |
|
Registered owner |
Zetland Advisor Inc. |
|
Latest data adjustment |
08 August 2017 |
