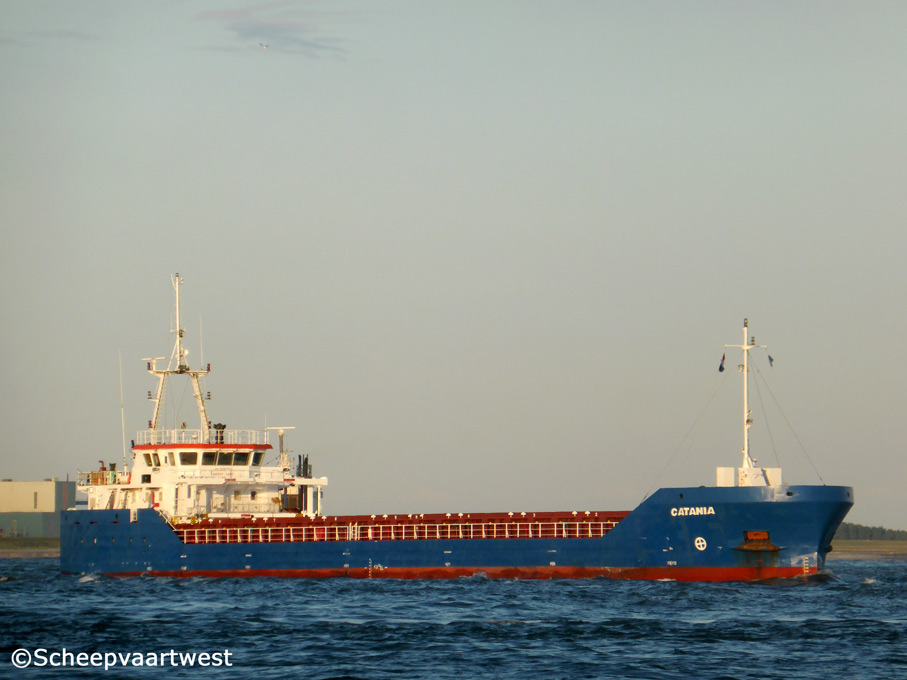

Westerschelde 20 June 2019 |
 |

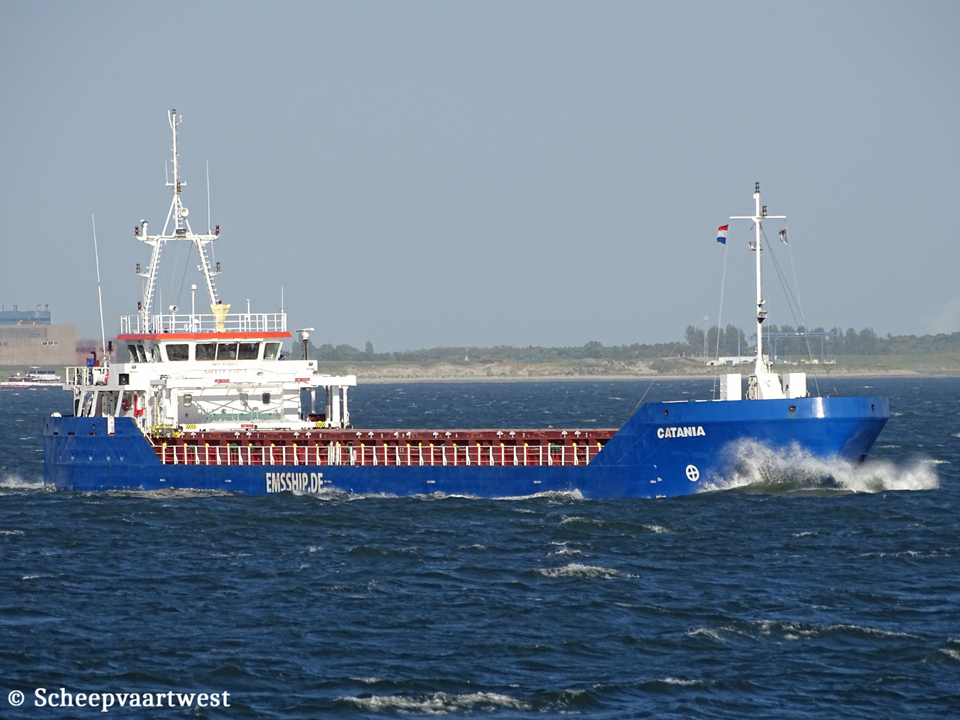

| Westerschelde 30/06/14 |
|
Name |
CATANIA |
|
Previous names |
2012 launch as: Fehn Caledonia |
|
Type |
General cargo ship - Singel decker - Heavy cargo - Gearless |
|
IMO-number |
9556832 |
|
Call sign |
V2GH3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
1.905 t |
|
DWT |
2.595 t |
|
NT |
878 t |
|
Length |
87,91 m overall 84,98 m between perpendiculars |
|
Breadth |
11,41 m |
|
Draught |
4,10 m |
|
Air draft |
21,40 m in ballast, mast up 11,50 m in ballast, mast down |
|
Freeboard |
1.708 mm |
|
Depth |
11,41 m |
|
Speed |
10,6 knots |
|
Built |
2012 |
|
Date of completion |
10/12/2012 |
|
Builder |
Wuxue Kaiyangxing Shipyard Co. Ltd. Wuhan China |
|
Yard number |
KYX07-803 |
|
Hull material |
Steel |
|
Main engine |
1x ABC 6M DZC - 4 stroke 6 cylinder 256 x 310 mm combustion engine 1.325 kW / 1.800 hp at 1.000 rpm Built: 05/08/2009 Builder: Anglo Belgian Corporation NV Wiedauwkaai 43 900 Gent Belgium |
|
Propellers |
1x Screw Propeller Solid - aft at 1.000 rpm |
|
Generators |
2x MAN main diesel generatorsets 200 kVA - 160 kW - 240 hp |
|
Emergency generator |
1x MAN diesel generatorset 112 kVA - 90 kW - 149 hp |
|
Bow thruster |
Yes |
|
Number of holds |
1 61,60 x 9,00 m x 6,16 m |
|
Total capacity of holds |
Grain: 3.624 m³ / 120.600 ft³ |
|
Hold ventilation |
6x Air circulations per hour (empty hold) |
|
Number of hatches |
1 61,60 x 9,00 m |
|
Hatch cover type |
Pontoon type |
|
Max permitted loads |
On main deck: 1,5 t/m² On tanktop: 15,0 t/m² |
|
Tank capacities |
MGO: 1131,9 m³ Freshwater: 43 m³ Ballast water: 1.616,8 m³ |
|
Manager |
NTO Shipping GmbH & Co. KG Hafenstraße 15 26789 Leer Germany |
|
Owner |
Fehn Ship Management GmbH & Co., KG Hafenstraße 15 26789 Leer Germany |
|
Registered owner |
Fehn Schiffahrts GmbH & Co. KG MS ''Catania'' |
|
Latest data adjustment |
10 July 2021 |
