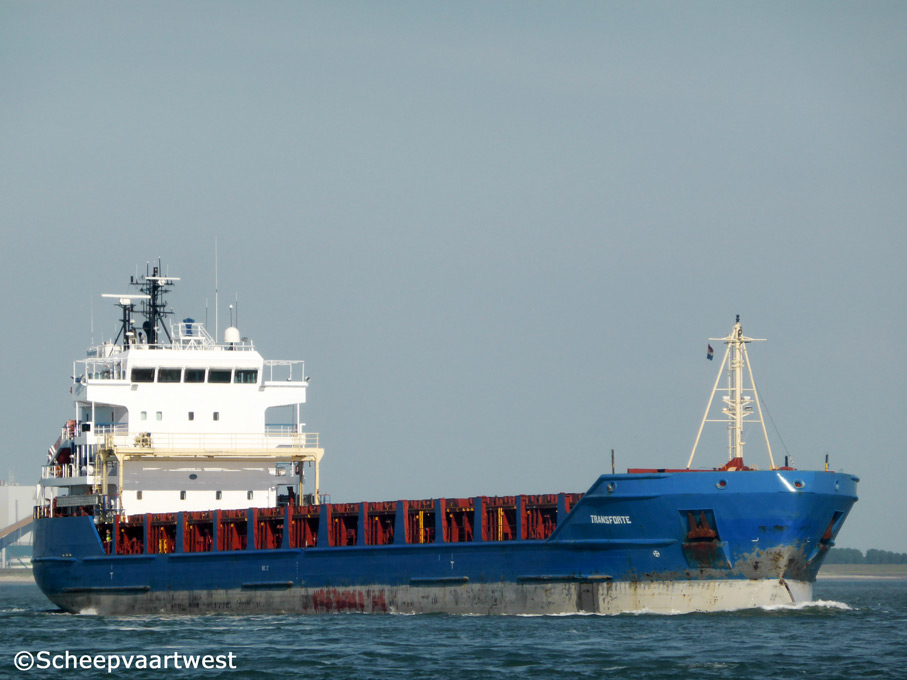

Transforte 01

Westerschelde 12 June 2014



Name

TRANSFORTE

Previous names

Volna

Forte

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9318955

Call sign

ZDGR3

Flag

Gibraltar

Port of registry

Gibraltar

GT

5.232 t

DWT

6.397 t

NT

2.382 t

Length

115,50 m overall

111,63 m registered

Breadth

16,50 m registered

Draught

5,69 m

Forecastle

8,77 m

Poop

12,86 m

Freeboard

2.262 mm

Depth

7,95 m moulded

Speed

13,0 knots

Built

2004

Keel laid

18.06.2003

Launch date

19.11.2004

Date of completion

04.02.2005

Builder

Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd.
1, Jichang Street
Tanggu ,300435 Tianjin
People's Republic of China

Yard number

SB350-1

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Bulkheads

4

Continuous decks

1

Main engine

1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm diesel engine - 3.840 kW at 600 rpm

Year of manufacture: 2004

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 192 rpm

Boilers

1x Water heater, oil fired - 6,0 bar

Heating surface: 14,6 m²

Year of manufacture: 2004

Manufacturer: Viessmann Werke Berlin GmbH
Kanalstr. 13
12357 Berlin
Federal Republic of Germany

Electric installations

2x Plants each 400/230 V - 325 kVA

1x Plant 400 V - 500 kVA

1x Plant 400 V - 125 kVA

Shaft generator

1x 500 kVA

Generators

2x Main diesel generatorsets each 325 kVA

Emergency generator

1x Diesel generatorset 125 kVA

Compressed air receivers

2x Receivers each 250 litres - 33,0 bar

1x Receiver 500 litres - 12,0 bar

Bow thruster

1x Transverse thruster 350 kW, forward

Number of holds

2

Hold 1: 19,72 x 13,5 x 9,03 m

Hold 2: 57,89 x 13,5 x 9.03 m

Cargo capacity

Grain: 9.467 m³ / 334.523 ft³

Bales: 9.467 m³

Max. permitted loads

Tanktop: 15 t/m²

Hatch cover: 1,75 t/m²

Ventilation

6x Air change/hour

Anchor equipment

3x Anchors weight each 3.060 kg

Chain length: 495,00 m

Crew size

12

Manager

Rederi AB Transatlantic
Lindholmsallen 10
402 71 Göteborg
Sweden

Registered owner

TransAtlantic Shipping (7) Ltd.
10/8 International Commerce Centre Casemates Square
Gibraltar
Gibraltar

Latest data adjustment

15 July 2014
