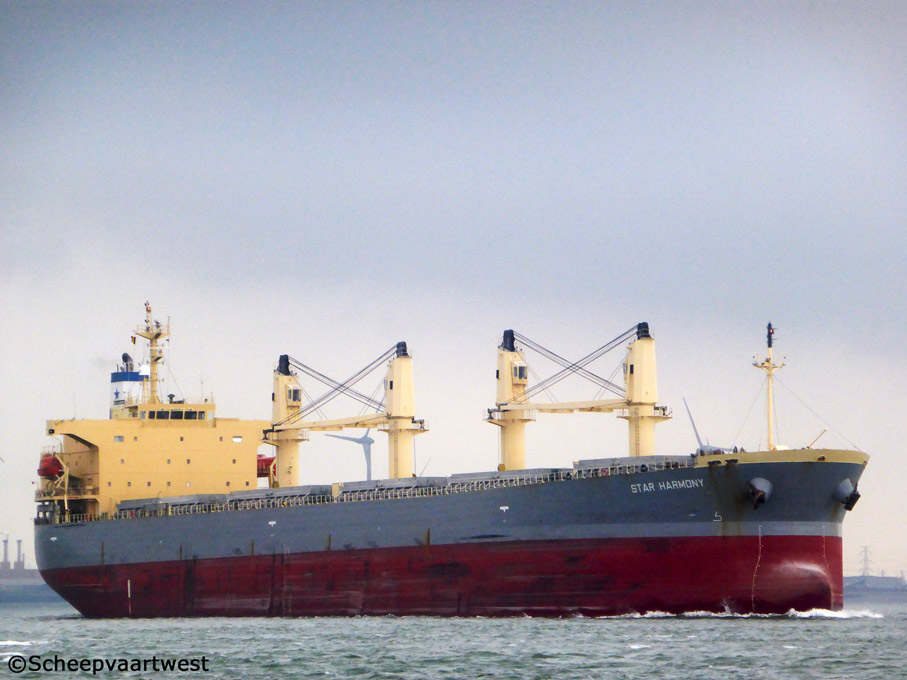

Star Harmony 01

Westerschelde 28 May 2014



Name

STAR HARMONY

Previous names

2005 - 07.2011 Sanko Glory - Monrovia, Republic Liberia

Type

Bulk carrier - Strengthened for heavy cargo

IMO-number

9284520

Call sign

3FZX9

Flag

Republic of Panama

Port of registry

Panama City

GT

29.372 t

DWT

Summer: 52.980 t

NT

17.601 t

Length

189,00 m overall

179,00 between perpendiculars

179,91 m registered

Breadth

32,26 m registered

Draught

12,14 m

Freeboard

4.990 mm

Depth

17,15 m moulded

Speed

14,8 knots

Built

2005

Keel laid

28.06.2002

Launch date

31.03.2005

Date of completion

28.04.2005

Builder

Oshima Shipbuilding Co., Ltd.
1605-1, Oshima-cho
Saikai-city ,857-2494 Nagasaki
Japan

Yard number

10380

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

6

Continuous decks

1

Main engine

1x B&W/Kawasaki 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm diesel engine - 7.686 kW / 10.440 hp at 107,0 rpm

Year of manufacture: 2005

Manufacturer: Kawasaki Heavy Industries, Ltd.
2-4-1, Hamamatsu-cho, Minato-ku
Tokyo, 105-0013 Tokyo-to
Japan

Propellers

1x Solid propeller (keyless) - aft at 107,0 rpm

Boilers

Steam boiler, oil fired - 6,9 bar

Heating surface: 26,4 m²

Steam boiler, exhaust gas heated - 6,9 bar

Heating surface: 167,4 m²

Year of manufacture: 2004

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao, Shandong
People's Republic of China

Electric installations

3x Plants each 440 V - 550 kVA

1x Plant 440 V - 100 kVA

Generators

3x Main diesel generatorset each 550 kVA

Emergency generator

1x diesel generatorset 100 kVA

Compressed air receivers

2x Receivers each 3.700 litres - 24,5 bar

Number of holds

5

Cargo tank capacity

Bales: 65.295 m³

Grain: 66.416 m³

Anchor equipment

3x Anchors weight each 7.800 kg

Chain length: 632,50 m

Cargo gear

4x Cranes - SWL 30,0 t each

Manager

Dekoil Inc.
97, Akti Miaouli
185 38 Piraeus
Greece

Registered owner

Star Harmony Compania Naviera S.A.
c/o Dekoil Inc.
97, Akti Miaouli
185 38 Piraeus
Greece

Latest data adjustment

08 July 2014
