Westerschelde 30 May 2014 |
|
Name |

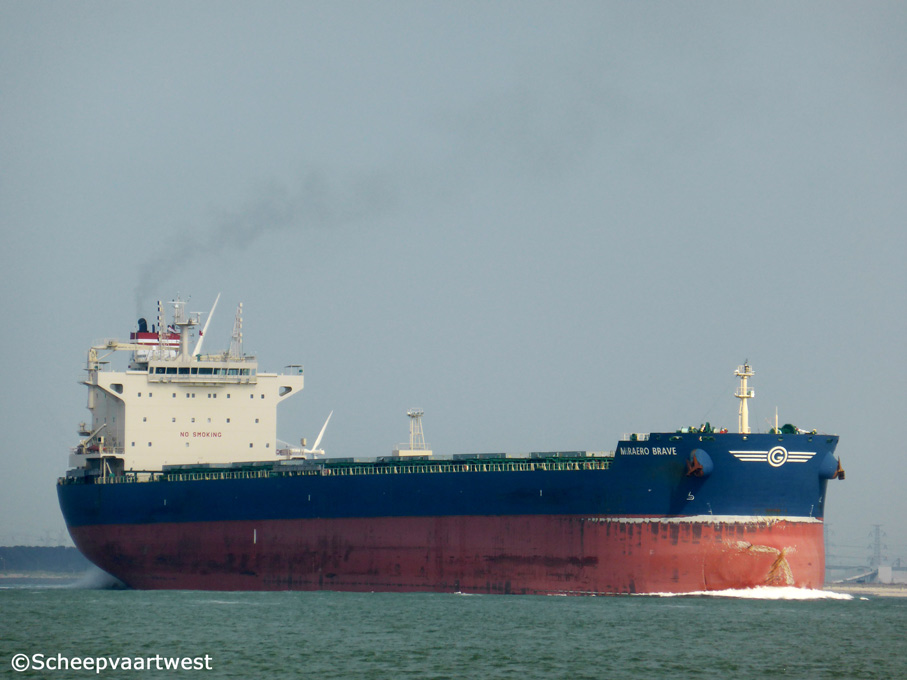

MIRAERO BRAVE |
|
Type |
Bulk carrier |
|
IMO-number |
9607162 |
|
Call sign |
H3RC |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
44.096 t registered Suez: 45.739,27 t |
|
DWT |
Summer: 81.375,9 t |
|
NT |
27.155 t registered panama: 37.626 t Suez: 41.507,42 t |
|
Length |
229,00 m overall 222,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
10,50 m |
|
Depth |
20,20 m moulded |
|
Built |
2012 |
|
Date of completion |
01.08.2012 |
|
Builder |
Sungdong Shipbuilding & Marine Engineering Co. Ltd. |
|
Yard number |
1161 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Main engine |
1x 6S60ME-C - 6 cylinder 600 x 2.400 mm diesel engine - 11.200 kW at 96,0 rpm Manufacturer: Hyundai Heavy Industries Co.,Ltd. |
|
Propellers |
1 Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
Composite Boiler - 8,0 bar Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x HFC7 502-84K main diesel generatorsets each 575 kW Manufacturer: HHI Engine & Machinery Div. |
|
Cargo capacity |
Bale: 91.506,8 m³ Grain: 96.322,8 m³ |
|
Number of tanks |
Ballast: 12 Fuel oil: 10 Lubricating oil: 7 Sludge: 3 Diesel oil: 2 Chain: 2 Fresh water: 2 Waste water: 2 Sea water: 1 |
|
Tank capacities |
Cargo Ballast: 41.993 m³ Diesel Oil: 259 m³ / 233,1 t Freshwater: 314,2 m³ Fuel Oil: 2.740,1 m³ / 2.685,29 t Lube Oil: 173 m³ / 155,7 t Tank Ballast: 22.825,6 m³ / 23.396,24 t |
|
Lifting equipment |
1x Overhead electric crane - SWL 4,0 t 2x Port provision crane - SWL 4,0 t Manufacturer: Oriental Precision & Eng. Co.,Ltd. |
|
Crew |
21 |
|
Operator |
Miraero NO. 3 S.A. MMG Tower, 16TH Floor Panama republic of Panama |
|
Registered owner |
Miraero NO. 3 S.A. |
|
Latest data adjustment |
08 July 2014 |
