Deurne, Belgium 04 March 2014 |
 |
| Deurne 04/03/14 |
|
Name |

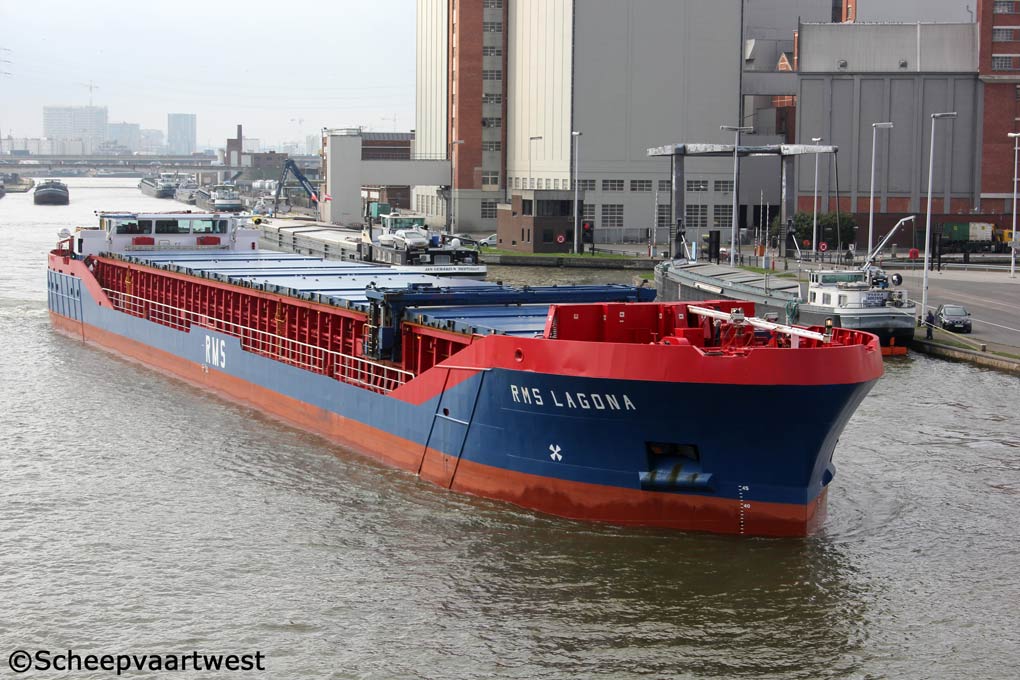

RMS LAGONA |
|
Previous names |
2000 - 10.01.2002 Cresent Seine 2002 - 05.2003 Crescent Seine |
|
Type |
General Cargo Ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9223435 |
|
Call sign |
V2OM9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
1.898 t |
|
DWT |
Summer: 2.688 t |
|
DWCC |
Summer: 2.530 t Winter: 2.470 t |
|
NT |
997 t |
|
Number of 20ft containers |
In hold: 56 On deck: 24 Total: 80 |
|
Reefer capacity |
No reefers |
|
Length |
88,00 m overall 84,98 m registered |
|
Breadth |
11,41 m registered |
|
Draught |
4,09 m |
|
Air draft |
6,26 m 3,00 m in ballast |
|
Forecastle |
8,74 m |
|
Quarterdeck |
15,04 m |
|
Depth |
5,40 m moulded |
|
Speed |
11,0 knots |
|
Built |
2000 |
|
Keel laid |
07.03.2000 |
|
Launch date |
09.2000 |
|
Date of completion |
21.12.2000 |
|
Builder casco |
Deawoo Yard number: 1027 |
|
Builder completion |
Bodewes Scheepswerf "Volharding" Foxhol B.V. |
|
Yard number |
364 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2 off with 10 positions |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz MWM SBV 6M628 - 4 stroke 6 cylinder 240 x 280 mm diesel engine - 1.235 kW at 1.000 rpm Year of manufacture: 2000 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG |
|
Propellers |
1x Solid propeller - aft at 270 rpm |
|
Electric installations |
2x Plants each 380/220 V - 120 kVA 1x Plant 380 V - 52 kVA |
|
Generators |
2x Main diesel generatorsets each 120 kVA |
|
Emergency generator |
1x diesel generatorset 52 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster, forward |
|
Holds |
60,60 x 9,00 x 6,85 m |
|
Cargo capacity |
Grain & bales: 3.766 m³ / 133.000 ft³ |
|
Timber |
Abt.: 3.400 /3.500 m³ |
|
Hatches |
60,60 x 9,00 m |
|
Hatchcovers |
Pontoon type - Steel - Handled by Gantry Crane |
|
Load of pontoons |
1,5 t/m² |
|
Strength tanktop |
15,0 t/m² |
|
Ventilation |
6x / electric |
|
Tank capacities |
Fuel oil: 121 m³ Fresh water: 43 m³ Water ballast: 1.542 m³ |
|
Anchor equipment |
3x Anchors weight each 1.590 kg Chain length: 412,50 m |
|
Crew size |
8 |
|
Manager |
ShipCom Bereederungs GmbH |
|
Operator |
RMS - Rhenus Maritime Services GmbH |
|
Registered owner |
ShipCom Bereederungs GmbH & Co. Betriebs-KG MS "LAGONA" |
|
Sister ships |
RMS Rhenus |
|
Latest data adjustment |
10 April 2014 |
