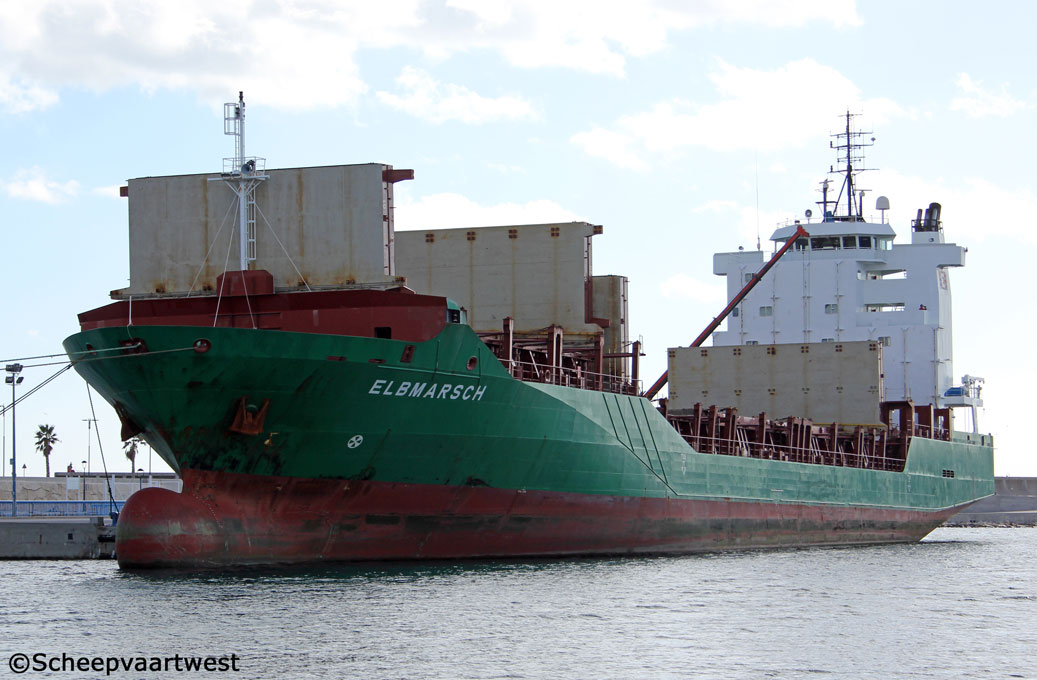

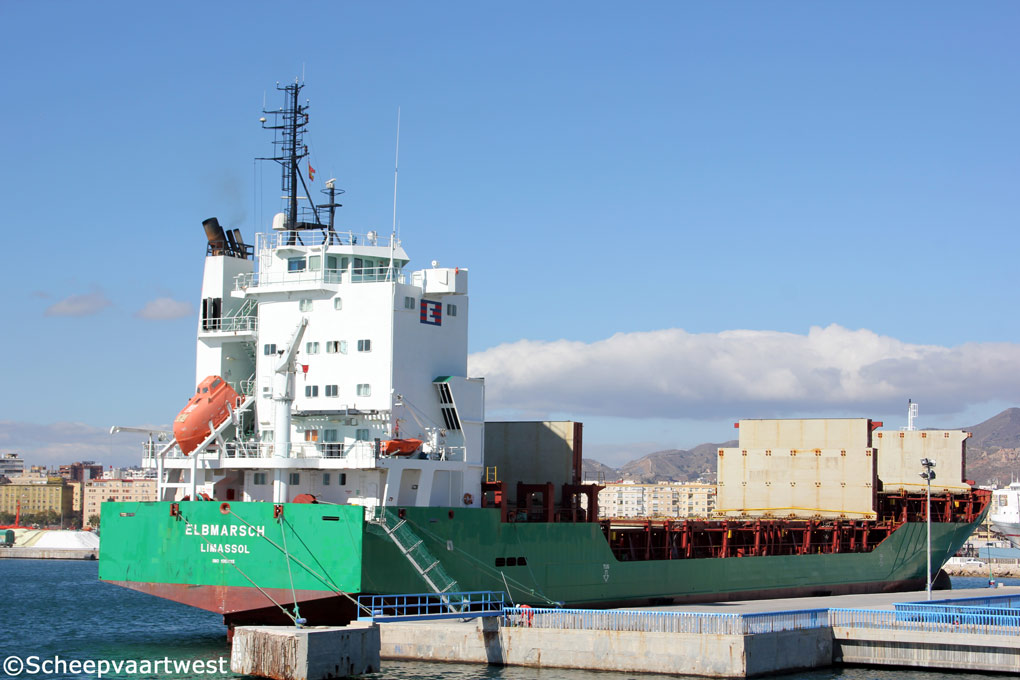

Elbmarsch - IMO 9351115

Malaga, Spain 28 January 2014

Name

ELBMARSCH

Previous names

2007 launch as: Elbmarsch

2007 - 05.2008 Candelaria Del Mar

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers

IMO-number

9351115

Call sign

C4VW2

Flag

Cyprus

Port of registry

Limassol

GT

7.532 t

DWT

Summer: 8.691 t

NT

3.553 t

Number of 20ft containers

724

Container capacity 14t

446

Reefer capacity

100

Length

126,86 m overall

119,54 m registered

Breadth

20,40 m registered

Draught

7,75 m

Freeboard

2.622 mm

Depth

10,35 m moulded

Speed

18,0 knots

Built

2007

Keel laid

01.12.2004

Launch date

14.04.2007

Date of completion

14.06.2007

Builder

Cassens Werft GmbH
II. Hafeneinschnitt
26723 Emden
Federal Republic of Germany

Yard number

30249

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double hull

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MaK 8M43C - 4 stroke 8 cylinder 430 x 610 mm diesel engine - 7.200 kW at 500 rpm

Year of manufacture: 2007

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 151 rpm

Boilers

1x Thermal oil heater, oil fired - 13,0 bar

Heating Surface: 16,0 m²

Year of manufacture: 2006

Manufacturer: Alfa Laval Aalborg A/S Division Heater
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

1x Thermal oil heater, exhaust gas heated 10,0 bar

Heating Surface: 81,7 m²

Year of manufacture: 2007

Manufacturer: Alfa Laval Aalborg B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

Electric installations

2x Plants each 450/230 V - 1.200 kVA

1x Plant 450 V - 1.290 kVA

1x Plant 450 V - 262 kVA

Shaft generator

1x 1.290 kVA

Generators

2x Main diesel generatorsets each 1.200 kVA

Emergency generator

1x Diesel generatorset 262 kVA

Compressed air receivers

2x Receivers each750 litres - 30,0 bar

Bow thruster

1x Transverse thruster 500 kW, forward

Anchor equipment

3x Anchors weight each 4.590 kg

Chain length: 550,00 m

Cargo gear

Gearless

Crew size

15

Manager

Elbdeich Bereederungsges. mbH & Co. KG
Am Elbdeich 76
21706 Drochtersen
Federal Republic of Germany

Owner

Elbdeich Reederei
Drochtersen
Germany

Registered owner

Elbmarsch Shipping Co. Ltd.
Apollo Court 6th Floor, Flat/Office 604 232 Archbishop Makariou III
3030 Limassol
Republic of Cyprus

Latest data adjustment

23 March 2014
