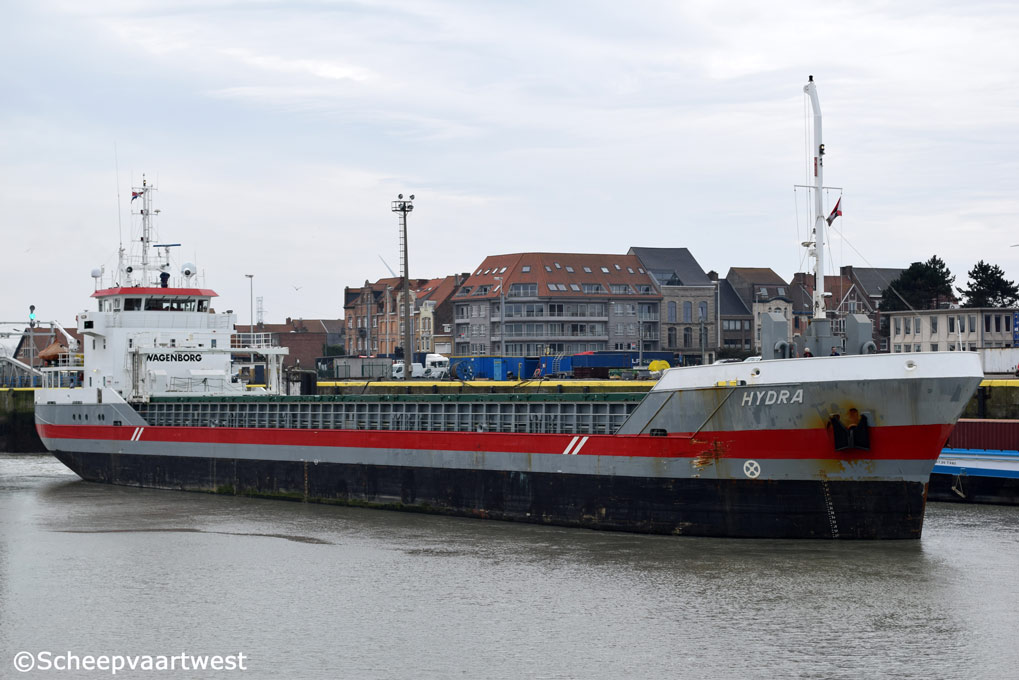

Zeebrugge 07 March 2014 |
 |
 |
 |
 |
|||

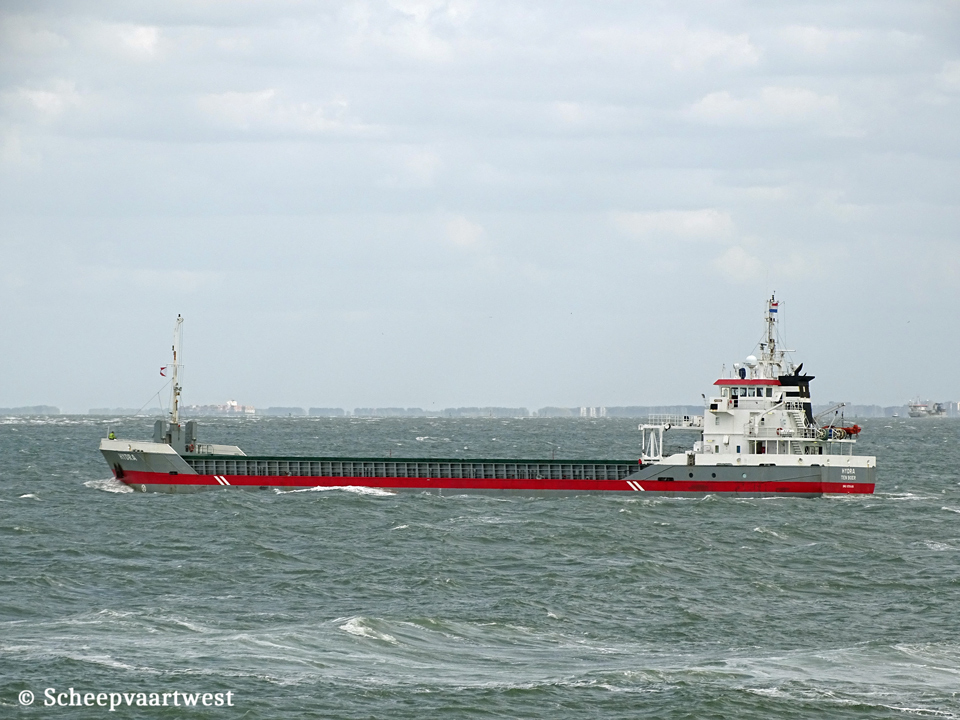

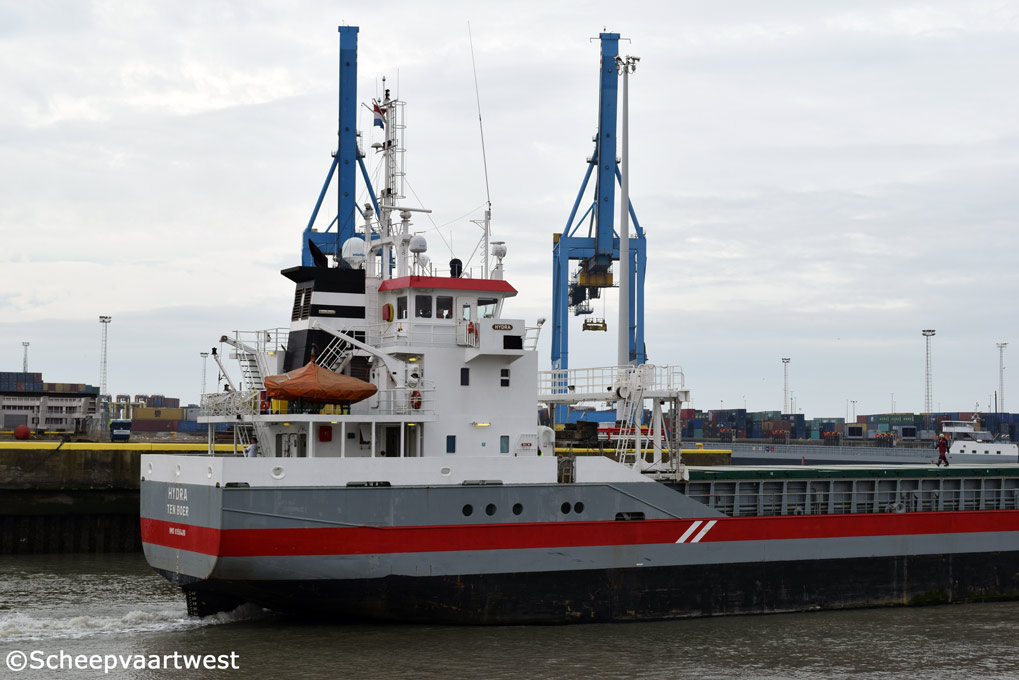

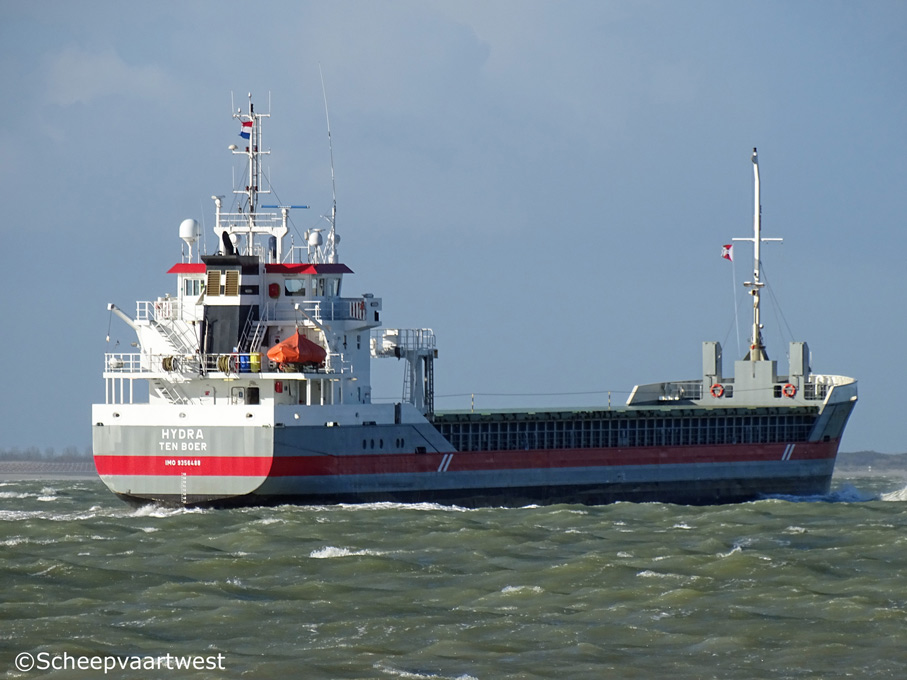

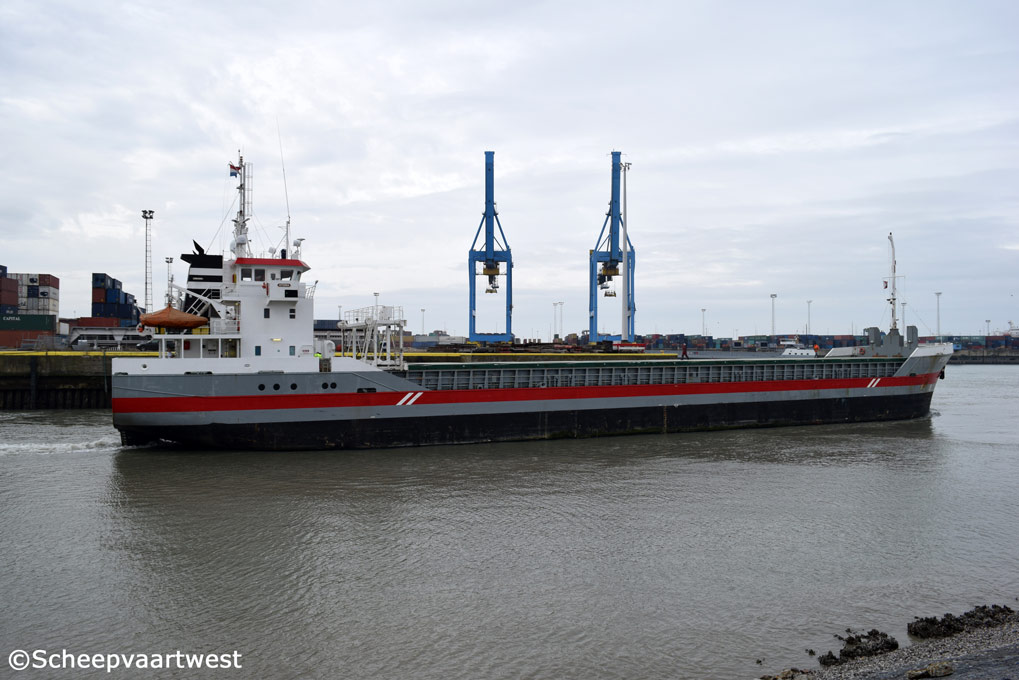

| Zeebrugge 07/03/14 | Zeebrugge 07/03/14 | Westerschelde 02/03/16 | Westerschelde 29/06/20 |
|
Name |
HYDRA |
|
Type |
Multi-purpose dry cargo carrier - Heavy cargo - Container ship |
|
IMO-number |
9356488 |
|
Call sign |
PBJT |
|
Flag |
The Netherlands |
|
Port of registry |
Ten Boer |
|
GT |
2.281 t |
|
DWT |
Summer: 3.150 t |
|
NT |
1.170 t |
|
Number of 20ft containers |
103 |
|
Length |
88,97 m overall 84,99 m between perpendiculars |
|
Breadth |
11,80 m |
|
Draught |
Max.: 5,05 m |
|
Keel to mast end |
24,50 m |
|
Air draft |
18,00 m |
|
Freeboard |
1.862 mm |
|
Depth |
6,90 m moulded |
|
Speed |
11,0 knots |
|
Built |
2007 |
|
Launch date |
24/04/2007 |
|
Date of completion |
07/09/2007 |
|
Builder casco |
Nova Melnik Lodenice s.r.o. Melnik Stredocesky Czech Republic |
|
Builder completion |
Bijlsma Shipyard B.V. (Veka) Lemmer The Netherlands |
|
Yard number |
750 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L20C - 4 stroke single acting 8 cylinder 200 x 280 mm combustion engine 1.440 kW / 1.957 hp at 1.000 rpm Built: 19/06/2006 Builder: Wärtsilä Corporation Technology, Vaasa - Finland |
|
Propellers |
1x Screw propeller controllable pitch |
|
Shaft generator |
1x Stamford type HCM 543 C - 390 kVA / 312 kW |
|
Generators |
1x Sisu type 634 DSBIG engine connected with Stamford generator type UCM 274 H - 175 kVA - 140 kW - 204 hp |
|
Emergency generator |
1x Sisu Diesel type 320 DSG connected with Stamford generator type UCM 224 C - 38 kVA - 30 kW - 72 hp |
|
Bow thruster |
1x OMEGA 03100-2k - 250 kW at 1.780 rpm |
|
Number of holds |
1 63,00 x 9,60 x 7,50 m |
|
Total capacity of holds |
4.501,06 m³ / 158.985 ft³ |
|
Number of hatches |
1 63,00 x 9,60 m |
|
Crew |
6 |
|
Commercial manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
ISM manager |
Hydra III CV Schepperij 12 9791 LV Ten Boer The Netherlands |
|
Owner |
Martin J. Langevoort & Teun A.P. Vogelij Ten Boer The Netherlands |
|
Latest data adjustment |
06 December 2021 |
