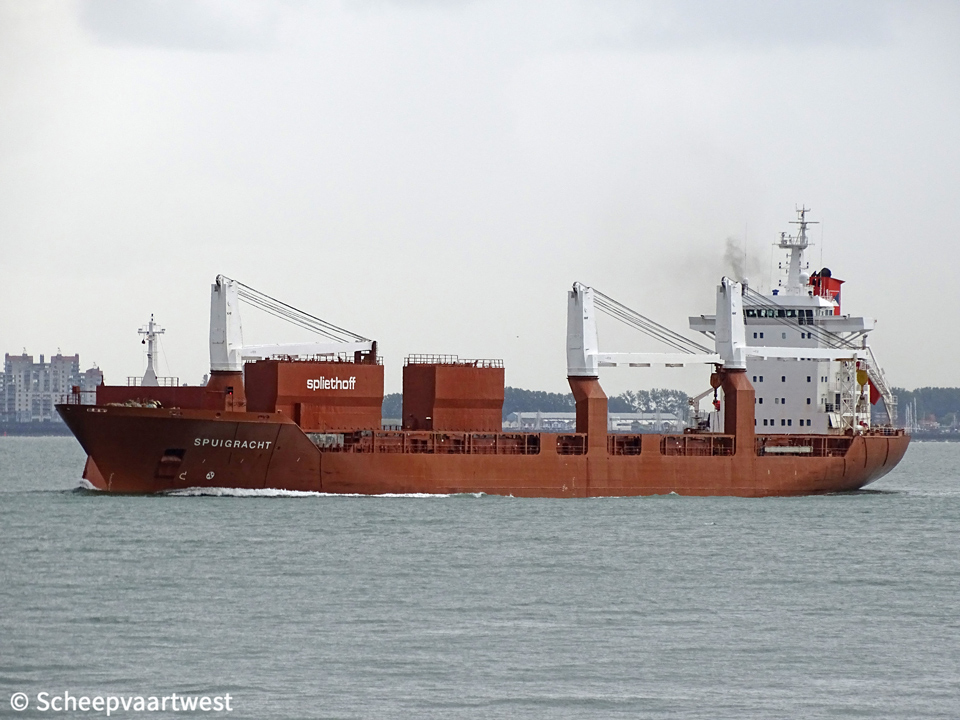

Spuigracht 06
Wetserschelde 07 September 2019

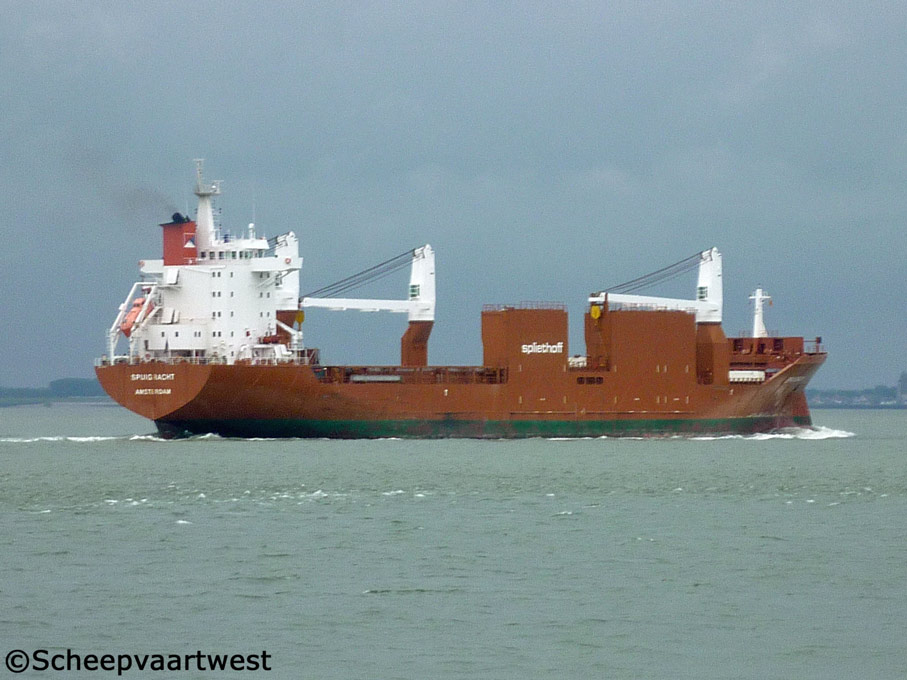

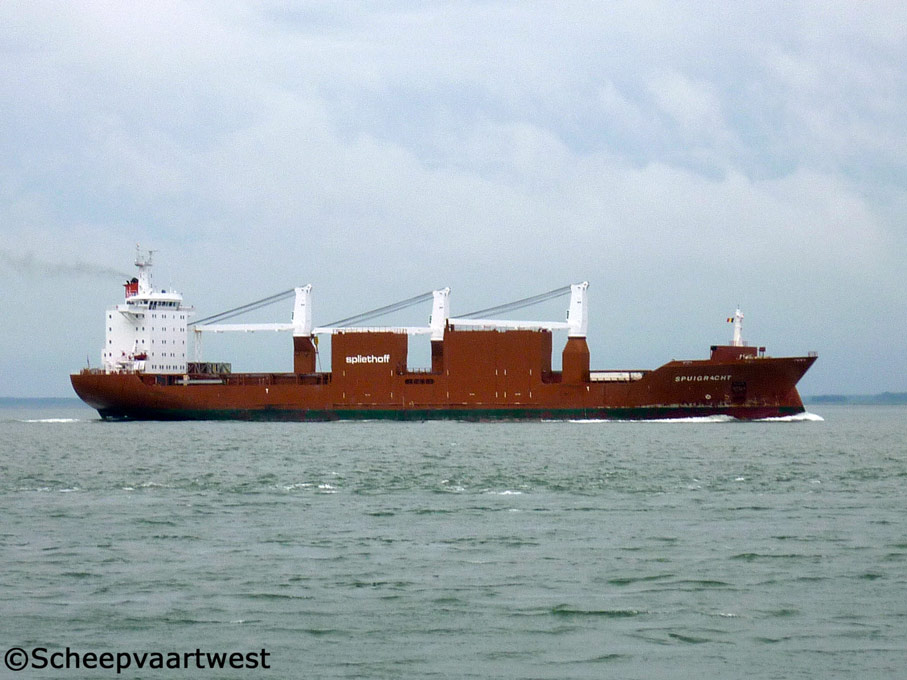

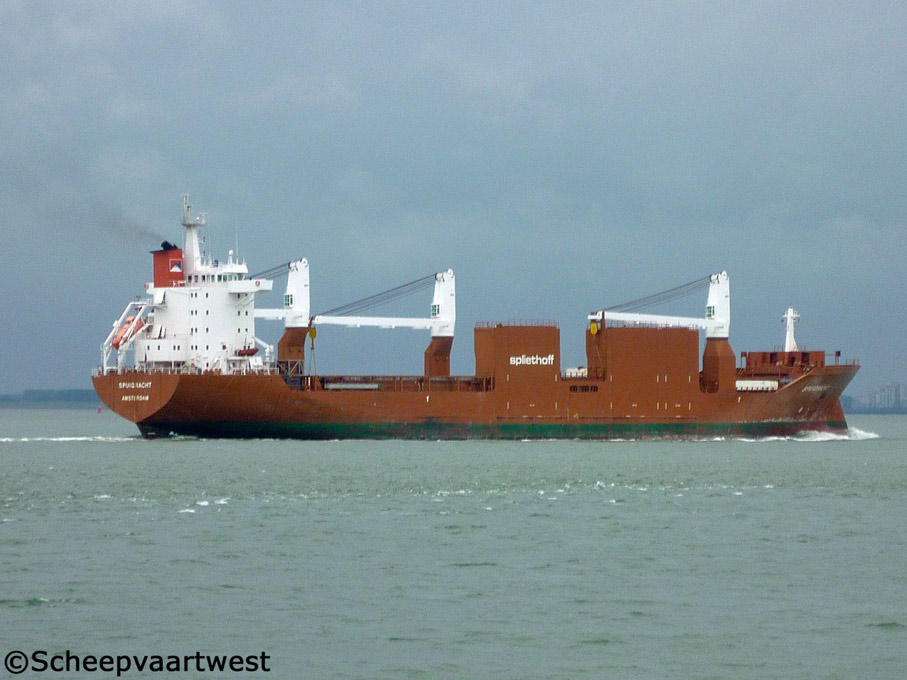

Spuigracht 02   Spuigracht 04 Spuigracht 05
Westerschelde 08/07/12   Westerschelde 08/07/12 Westerschelde 08/07/12



Name

SPUIGRACHT

Type

Multi-purpose general cargo

IMO-number

9202534

Call sign

PBBB

Flag

The Netherlands

Port of registry

Amsterdam

GT

16.639 t

DWT

Summer: 21.349 t

NT

6.730 t

Number of 20ft containers

In hold 427

On deck: 658

Total: 1.134

Number of 40ft containers

In hold: 219

On deck: 283

Total: 502

Length

172,60 m overall

163,87 m between perpendiculars

Breadth

25,49 m

Draught

10,60 m

Depth

14,60 m

Speed

Service:

18,0 knots ballast

17,0 knots loaded

Built

2001

Date of completion

06/03/2001

Builder

Stocznia Szczecinska Nowa

Stettin

Poland

Yard number

B587/4/4

Hull material

Steel

Movable bulkhead

Removable pontoons for up to 14 compartments at TEU interval

Main engine

1x Wärtsilä Fincantieri 6L64 - 6 cylinder combustion engine 12.060 kW / 16.400 hp

Propellers

1

Bow thruster

1x 1.155 hp - 850 kW

Cargo capacity

Hold 0: 15.250 ft³ - 430 m³

Hold 1: 160.000 ft³ - 4.530 m³

Hold 2/3: 665.000 ft³ - 18.280 m³

Total: 840.250 ft³ - 22.780 m³

If tween deck installed 56.200 ft³ - 1.620 m³ less in hold

Hatches

Weather Deck:

No.0: 6,40 x 7,60 m

No.1: 25,60 x 17,80 m/ 15,20 m

No.2: 38,40 x 17,80 m

No.3: 32,00 x 20,40 m

Tween deck:

No.1: 25,60 x 17,80 m / 15,20/ 10,10m

No.2: 38,40 x 17,80 m (Under crossbeam: 4,20 x 17,80 m)

No.3: 32,00 x 20,40 m

Hatch type

Steel, end folding type

Floor space

Tank top: 1.620 m²

Tween deck: 1.840 m²

Weather deck: 2.400 m²

Maximum load

Weather deck hatch covers: 2,0 t/m²

Tween deck hatch covers:

Hatchway 1: 7,50 t/m²

Hatchway 2: 5,50 t/m²

Hatchway 3: 5,00 t/ m²

Tank top: 20,0 t/m²

Cargo gear

2x PS (aft and mid)

1x SB (forward)

3x 120 t SWL at 14,00 m

90 t SWL at 18,60 m

55 t SWL at 30,0 m

Sideloaders

5x SB

5x SWL 16,0 t

Bunker capacity

Fuel oil: 1.635 m³

Marine diesel oil: 220 m³

Ballast capacity

7.545 m³

Manager

Spliethoff´s Bevrachtingskantoor

36, Radarweg

Amsterdam

The Netherlands

Operator

Spliethoff

Owner

CV Scheepvaartonderneming Bakengracht

Amsterdam

The Netherlands

Last data update

11 January 2014
