| Westerschelde 18 November 2012 |
|
Name |

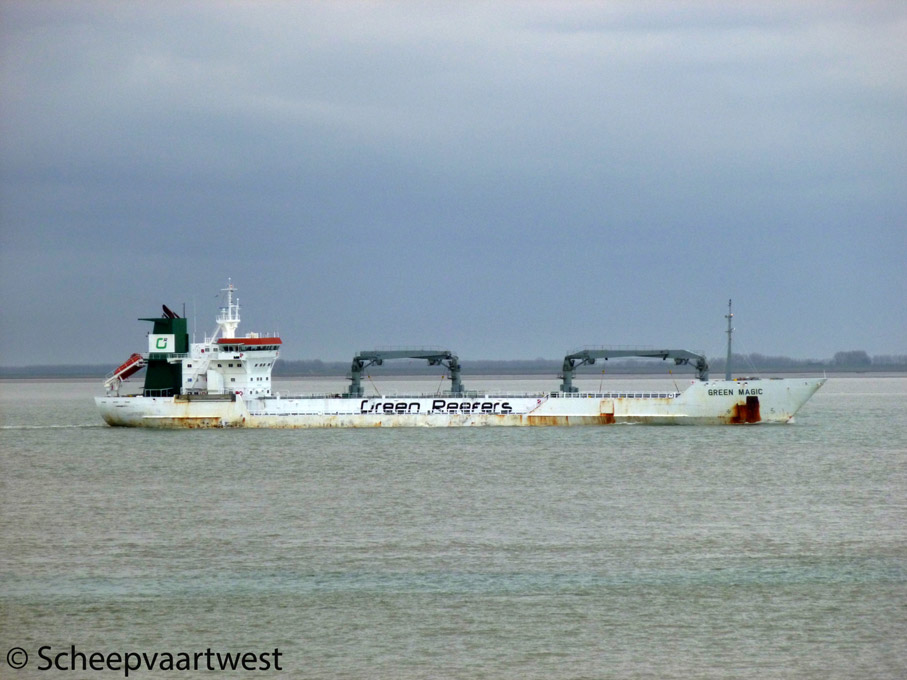

GREEN MAGIC |
|
Previous names |
1990 - 2006 Magic - C.V. Scheepvaartonderneming Magic, Groningen - The Netherlands managing by Seatrade Groningen B.V.- The Netherlands 28.12.2006 Green Magic |
|
Type |
Reefer carrier |
|
IMO-number |
8822583 |
|
Previous classification |
Bureau Veritas |
|
Call sign |
CGVY5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
5.089 t |
|
DWT |
6.105 t |
|
NT |
3.341 t |
|
Number of 20ft containers |
On deck: 69 In holds: 38 Total: 107 |
|
Reefer plug |
20 reefer plugs |
|
Length |
135,70 m overall 123,75 m Between perpendiculars |
|
Breadth |
16,33 m extreme |
|
Draught |
7,62 m |
|
Depth |
9,30 m moulded |
|
Speed |
18,0 knots |
|
Built |
1990 |
|
Keel laid |
12.01.1989 |
|
Launch date |
20.10.1989 |
|
Date of completion |
04.01.1990 |
|
Builder |
B.V. Scheepswerven Gebr. van Diepen |
|
Yard number |
1031 |
|
Hull material |
Steel |
|
Main engine |
MaK-Krupp 6M601AK - 6.600 kW / 8.900 bhp |
|
Propellers |
Controllable pitch KaMeWa HUB Type 121x F3/4 |
|
Boilers |
Thermal oil heater, exhaust heated Thermal oil heater, oil fired |
|
Emergency generator |
1x Cummins NT-855-65 diesel engine coupled with Stamford MHC 414 generator |
|
Hatches |
All hatches to all holds/compartments have free opening of minimum 8,08 x 7,64 m with exception of hatch to hold 1 where openings are 13,68 x 7,64 m |
|
Cargo capacity |
310.395 ft³ / 3.702 m³ |
|
Tank capacities |
Ballast: 945 m³ IFO: 835 m³ MDO: 81 m³ |
|
Temperatures |
8x Separate cooling sections, with sufficient compressor capacity for keeping -25 to +12 degrees Celsius |
|
Ventilation |
Air changes per hour: 90 Air renewal per hour: 3 |
|
Manager |
Green Management Sp. z o.o. |
|
Operator |
Green Reefers |
|
Registered owner |
Green Shipping AS |
|
Sister ships |
1993 Green Maveric |
|
Last update |
21 July 2013 |
