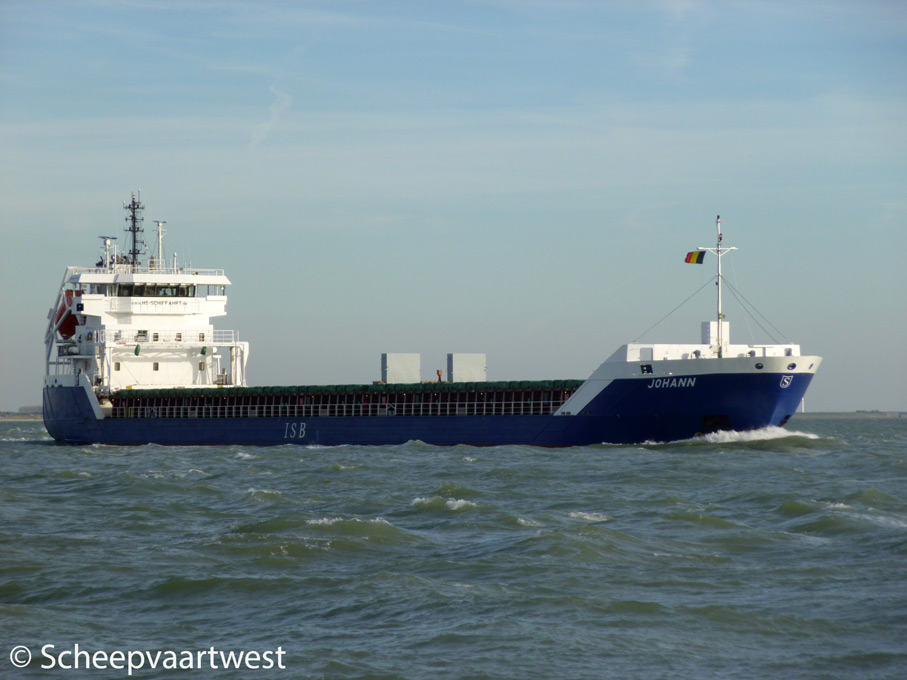

| Westerschelde 31 October 2012 |
|
Name |
JOHANN |
|
Type |
General cargo ship - heavycargo - equipped for carriage of containers |
|
IMO-number |
9534298 |
|
Call sign |
DSHS1 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
4.255 t |
|
DWT |
6.051 t |
|
DWCC |
Summer: 5.750 t Winter: 5.650 t |
|
NT |
2.341 t |
|
Number of 20ft containers |
256 |
|
Container capacity 14t |
166 |
|
Length |
114,40 m overall 108,30 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
8,10 m |
|
Freeboard |
8.112 mm |
|
Depth |
8,10 m |
|
Speed |
13,0 knots |
|
Built |
2012 |
|
Launch date |
12.08.2010 |
|
Date of completion |
12.01.2012 |
|
Builder casco |
Jiangsu Yangzi Changbo Shipbuilding Co.,Ltd. Yard number: CBSY06-009 |
|
Builder completion |
Volharding Shipyard The Netherlands Yard number: 671 |
|
Hull material |
Steel |
|
Watertight bulkheads |
5 |
|
Movable bulkhead |
1x Moveable bulkhead each hold 5 positions |
|
Continuous decks |
4 |
|
Main engine |
1x MAK 9M25C - 4 stroke 9 cylinder 255 x 400 mm diesel engine - 2.970 kW / 4.035 hp at 750 rpm Built: 13.08.2009 Builder: Caterpillar Motoren Guangdong Co.Ltd., Kiel - Germany |
|
Propellers |
1x Screw Propeller Controllable pitch at 194 rpm, aft |
|
Boilers |
1x CHO Heatmaster 8,80 m² / 4,0 bar |
|
Shaft generator |
1x 530 kVA - 424 kW |
|
Generators |
2x Main diesel generatorsets each 235 kVA - 188 kW - 340 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 158 hp |
|
Bow thruster |
350 kW |
|
Number of holds |
2x Box type Hold 1: 37,37 x 11,70 x 8,99 m Hold 2: 44,40 x 11,70 x 8,99 m |
|
Total capacity of holds |
Grain: 4.627 m³ / 300.000 ft³ |
|
Number of hatches |
2 |
|
Hatch type |
Pontoon system gantry crane |
|
Max. tanktop loading |
15 t/m² |
|
Electric ventilation |
6x Air changes per hr |
|
Fuel capacity |
402,4 m³ |
|
Manager |
HS Schiffahrts GmbH & Co. KG Thyssenstr. 16 |
|
Registered owner |
HS Schiffahrts GmbH & Co. KG MS 'JOHANN' |
|
Last update |
14.05.2013 |
