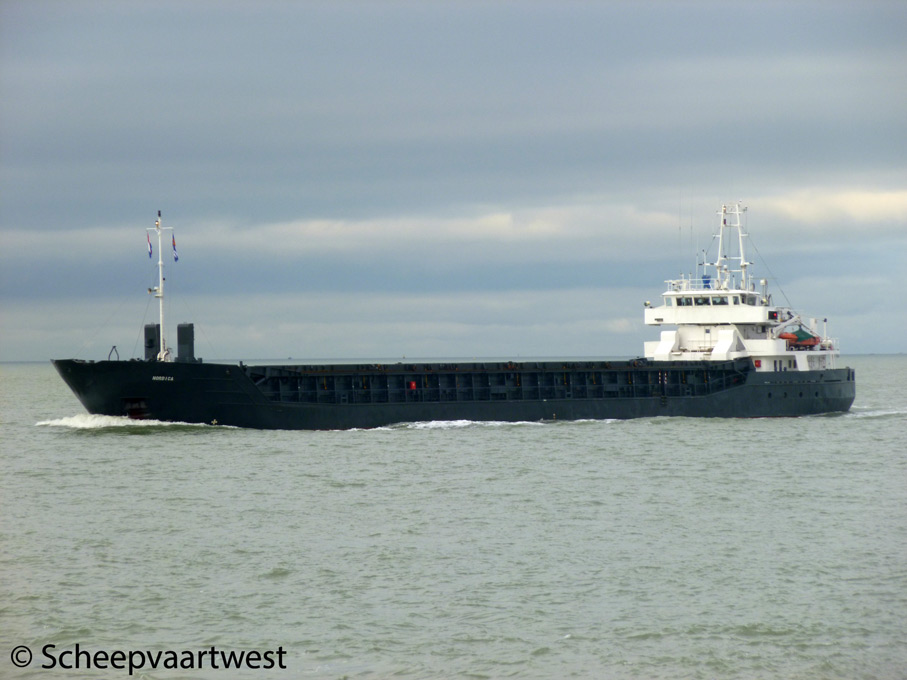

Nordica 01
Westerschelde 20 October 2012

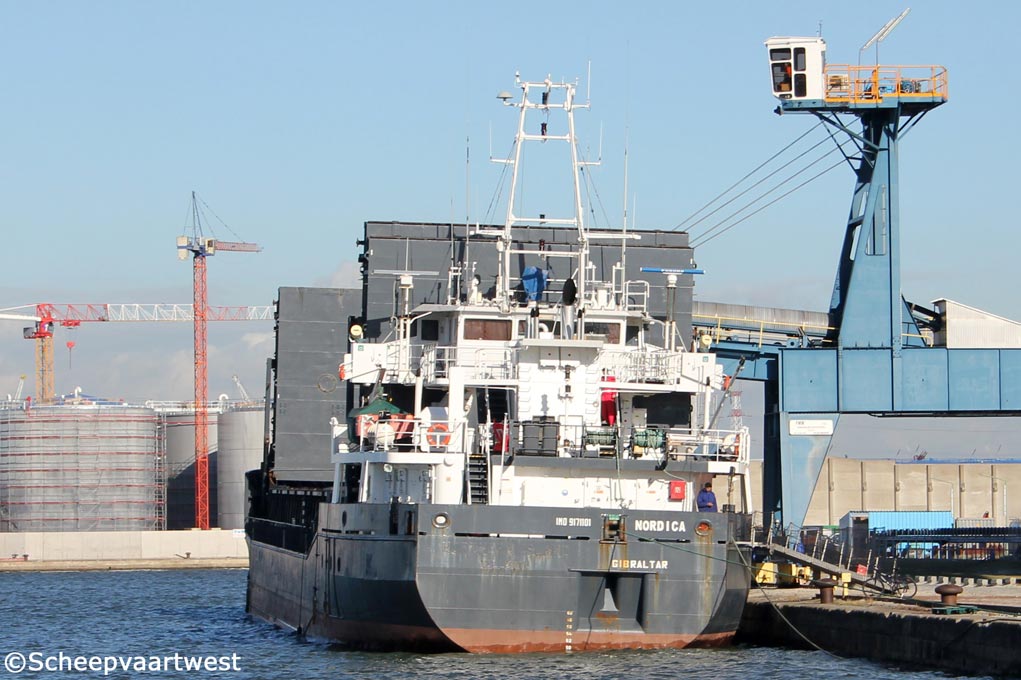

Nordica 02
Antwerpen 30/10/13



Name

NORDICA

Previous names

1998 - 12.2001 Northern Island

2001 - 02.2004 Anpero

2004 - 01.2005 Wani Tofte

2005 - 08.2007 Anpero

2007 - 06.2010 Antora

Type

General Cargo Ship - Equipped for carriage of containers

IMO-number

9171101

Call sign

ZDFN2

Flag

Gibraltar

Port of registry

Gibraltar

GT

2.446 t

DWT

3.675 t without bulkhead

NT

1.369 t

Number of 20ft containers

In hold: 108

On deck: 68

Total: 176

Container capacity 14t

144

Reefer plugs

6 on deck

Length

87,97 m overall

82,10 m registered

Breadth

12,80 m registered

Draught

Max: 5,51 t

Air draft

11,19 m bridge and mast in lower position

19,51 m bridge and mast in upper position

Forecastle

6,70 m

Depth

7,10 m moulded

Speed

11,5 knots

Built

1998

Keel laid

05.09.1997

Launch date

17.04.1998

Date of completion

06.1998

Builder

Slovenske Lodenice a.s.
Rolnickej Skoly 1519
945 25 Komarno
Slovak Republic

Yard number

2943

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Double bottom

Watertight bulkheads

4

Movable bulkhead

2 Movable, can be placed in 11 positions

Continuous decks

2

Main engine

1x Deutz-MWM SBV 8 M 628 - 4 stroke 8 cylinder 240 x 280 mm diesel engine - 1.5 kW at 900 rpm

Year of manufacture: 1998

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
Mannheim
Federal Republic of Germany

Propellers

1x Solid propeller - aft 228 rpm

Boilers

1x Water heater, oil fired - 4,0 bar

Year of manufacture: 1997

Manufacturer: Somi-Fustamar, S.L.
Carretera Sant Feliu
17240 Llagostera
(Girona) Barcelona
Spain

Electric installations

3x Plants each 380/220 V - 130 kVA

1x Plant 380 V - 49 kVA

Generators

3x MAN D 2866 main diesel generatorsets each 115 kW / 130 kVA at 1.500 rpm

Emergency generator

1x Deutz F6L912 diesel generatorset 49 kVA at 1.500 rpm

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse Jastram type BU-40F thruster - 185 kW, forward

Number of holds

1

Dimensions: 55,85 x 10,20 x 8,15 m(space for bulkhead deducted)

Number of hatches

1

Dimensions 56,55 x 10,20 m

Hatch cover type

Kvaerner Multifold crocodile with hydraulic control

Cargo capacity

Grain:4.672 m³

Bales: 4.620 m³

Strength

Tanktop: abt. 15,00 t/m²

On deck: abt. 1,56 t/m²

Tank capacities

MGO: 144,3 t / 154,0 m³

Ballast: 1.670,2 t / 1.630,0 m³

Fresh water: 48,3 t / 48,3 m³

Hold ventilation

6 air changes per hour

Anchor equipment

3x Anchors weight each 1.590 kg

Chain length: 412,50 m

Cargo gear

Gearless

Crew size

9

Manager

Berg Maritime Management Ltd.
Watson and Johnson Centre Church Road
Greystones, Wicklow
Ireland

Operator

Peak Shipping AS

Nyborg
NO-5871 Bergen
Norway

Registered owner

Dublin Bulk MV 1 Limited
1A MPO Building Snugsborough Road
Dublin
Ireland

Special annotation

Wheelhouse hydraulic lowering

Renamed

2015 Prosna - Cyprus, Limassol

Latest data adjustment

10 January 2016
