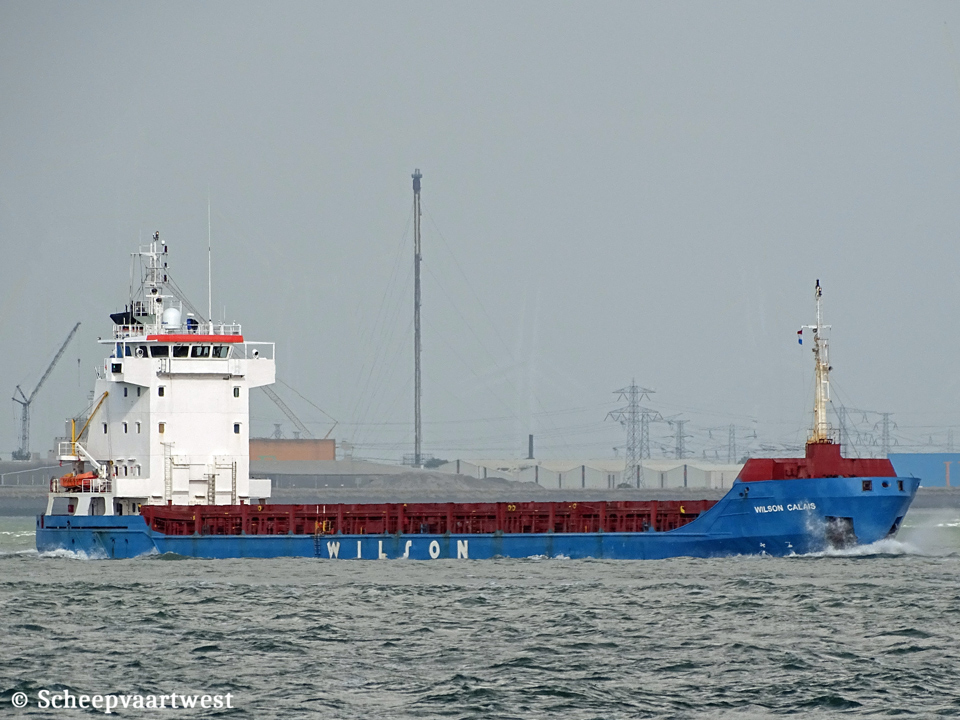

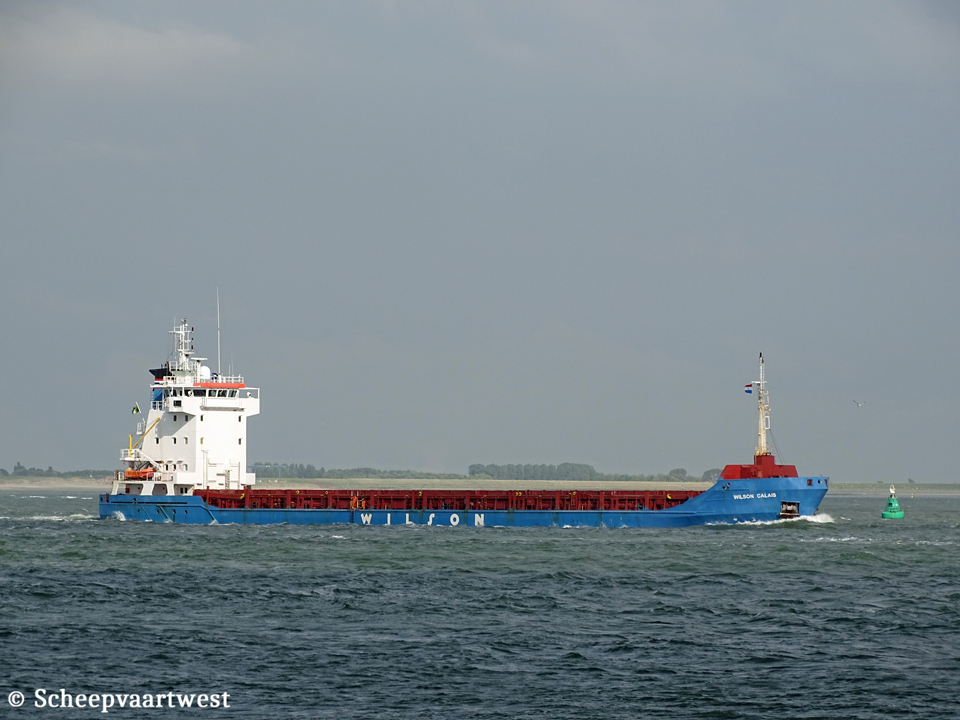

Westerschelde 19 June 2020 |
 |
 |
 |
 |
|||

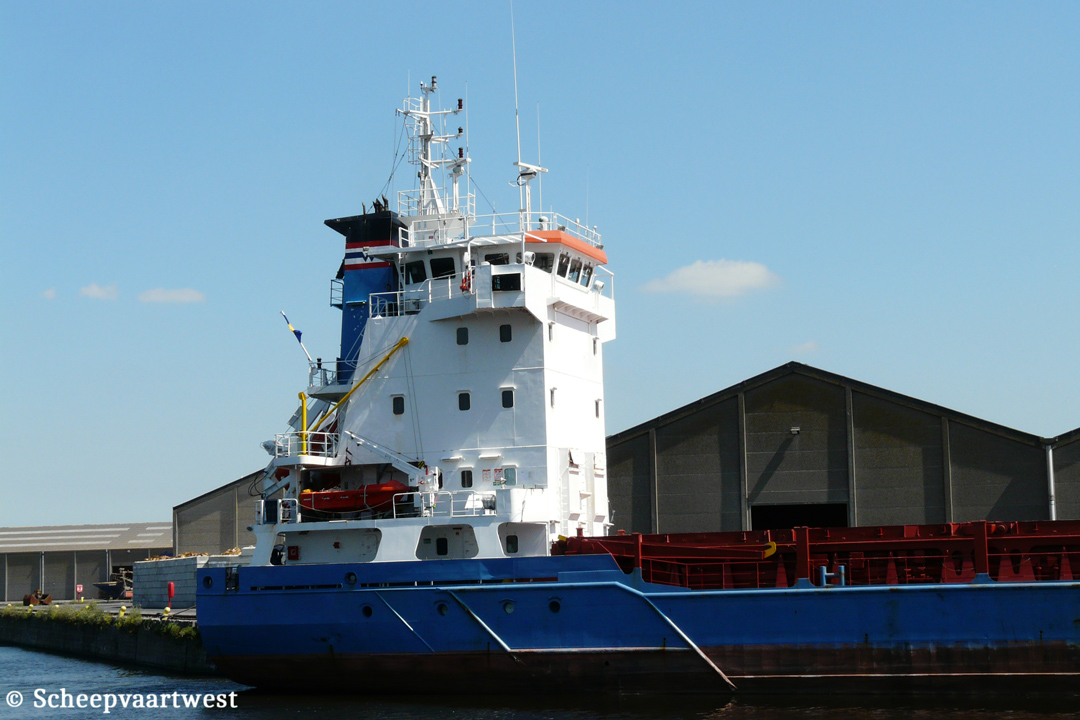

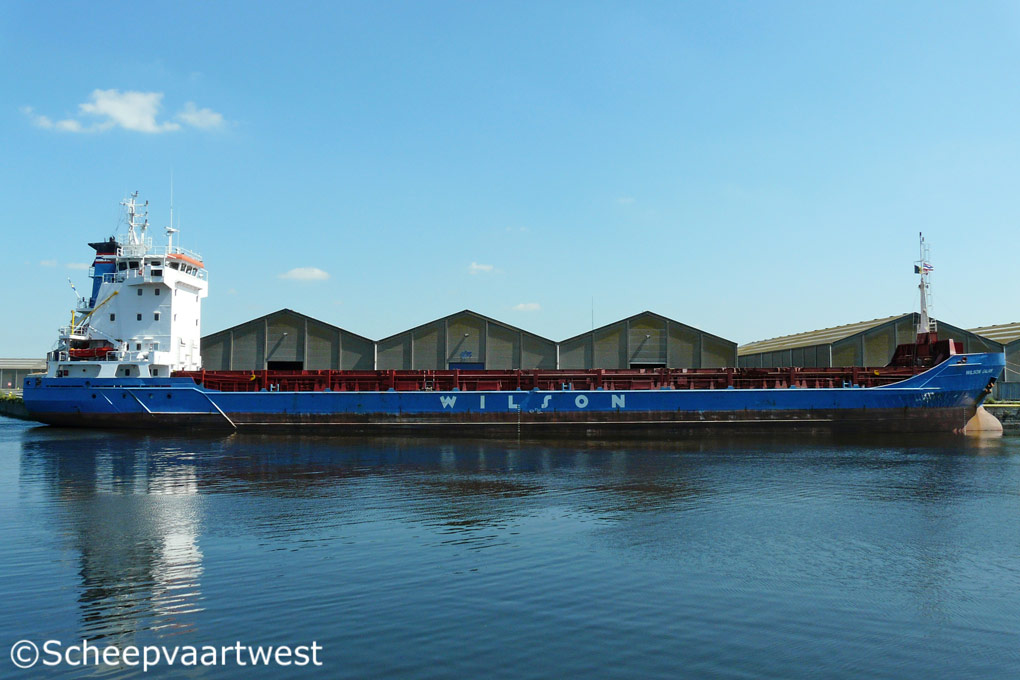

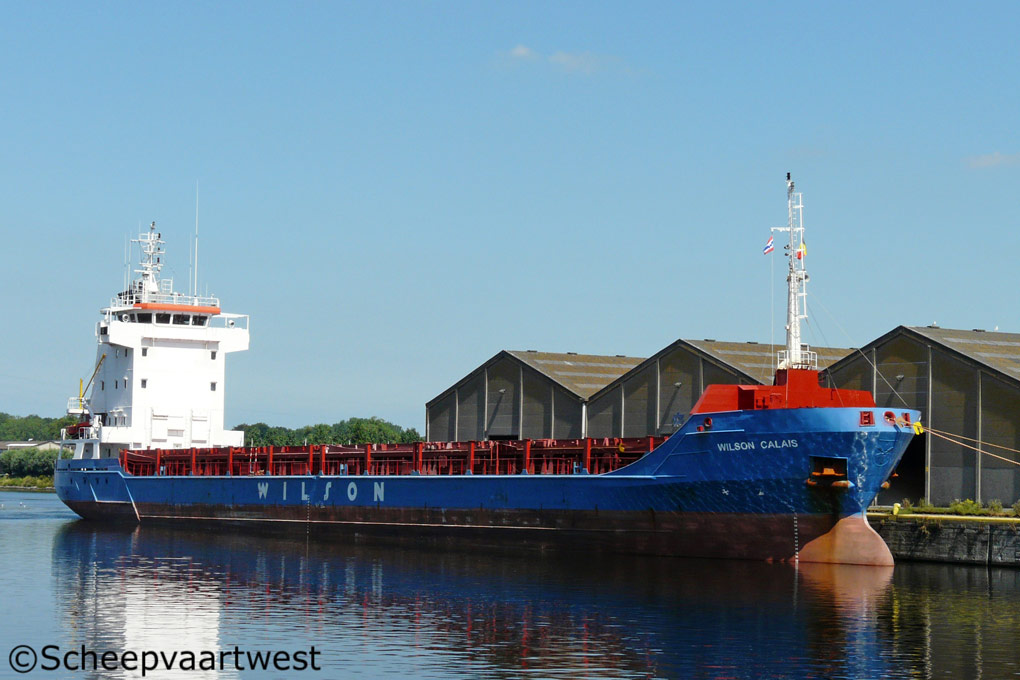

| Westereschelde 19/06/20 | Brugge, Belgium 10/08/12 | Brugge, Belgium 10/08/12 | Brugge, Belgium 10/08/12 |
|
Name |
WILSON CALAIS |
|
Previous names |
Steffen Sibum Schelde Star Steffen Sibum Heinrich Wessels |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9156101 |
|
Call sign |
8PUK |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
GT |
2.994 t |
|
DWT |
4.450 t |
|
NT |
1.733 t |
|
Number of 20ft containers |
In hold: 129 On deck: 168 Total: 297 |
|
Length |
99,85 m overall 95,80 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
Summer: 5,66 m |
|
Air Draft |
25,35 m |
|
Distance keel to antenna |
28,80 m |
|
Forecastle |
6,80 m |
|
Quarterdeck |
15,94 m |
|
Depth |
7,55 m moulded |
|
Speed |
Service 11,5 knots |
|
Built |
2001 |
|
Keel laid |
27/03/1996 |
|
Launch date |
30/05/2001 |
|
Date of completion |
09/2001 |
|
Builder |
Brodogradiliste "SAVA" D.D. 77 Marsala Tito 22202 Macvanska Mitrovica Republic of Serbia |
|
Yard number |
3015 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
2x Movable bulkheads, 5 positions each hatch |
|
Continuous decks |
2 |
|
Main engine |
1x Deutz TBD 645 L 6 - 4 stroke 6 cylinder 330 x 450 mm comnustion engine 2.550 kW at 600 rpm Reduced Power: 1.275 kW Year of manufacture: 1996 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG Mannheim Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft 304 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar Year of manufacture: 1996 |
|
Electric installations |
2x Plants each 380/220 V - 210 kVA 1x Plant 380 V - 800 kVA 1x Plant 380 V - 49 kVA |
|
Shaft generator |
1x 800 kVA |
|
Generators |
2x Main diesel generatorsets each 210 kVA |
|
Emergency generator |
1x Diesel generatorset 49 kVA |
|
Compressed air receivers |
2x Receivers each 355 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 220 kW, forward |
|
Number of holds |
1 Dimension: 69,86 x 10,20 x 8,01 m |
|
Number of hatches |
1 Hatch 1: 37,95 x 10,20 m Hatch 2: 31,20 x 10,20 m |
|
Hatch type |
Mac Gregor Folding |
|
Cargo capacity |
Grain: 5.896 m³ / 208.215 ft³ Bales: 5.841 m³ / 206.273 ft³ |
|
Max permissible load |
On deck: 1,70 t/m² Tanktop: 15,0 t/m² |
|
Water ballast |
1.704,60 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Crew |
8 |
|
Manager |
Wilson Ship Management AS Bradbenken 1 5835 Bergen Norway |
|
Operator |
Wilson Shipping |
|
Registered owner |
Caiano Ships AS Strandgaten 92 5528 Haugesund Norway |
|
Matest data adjustment |
07 May 2021 |
